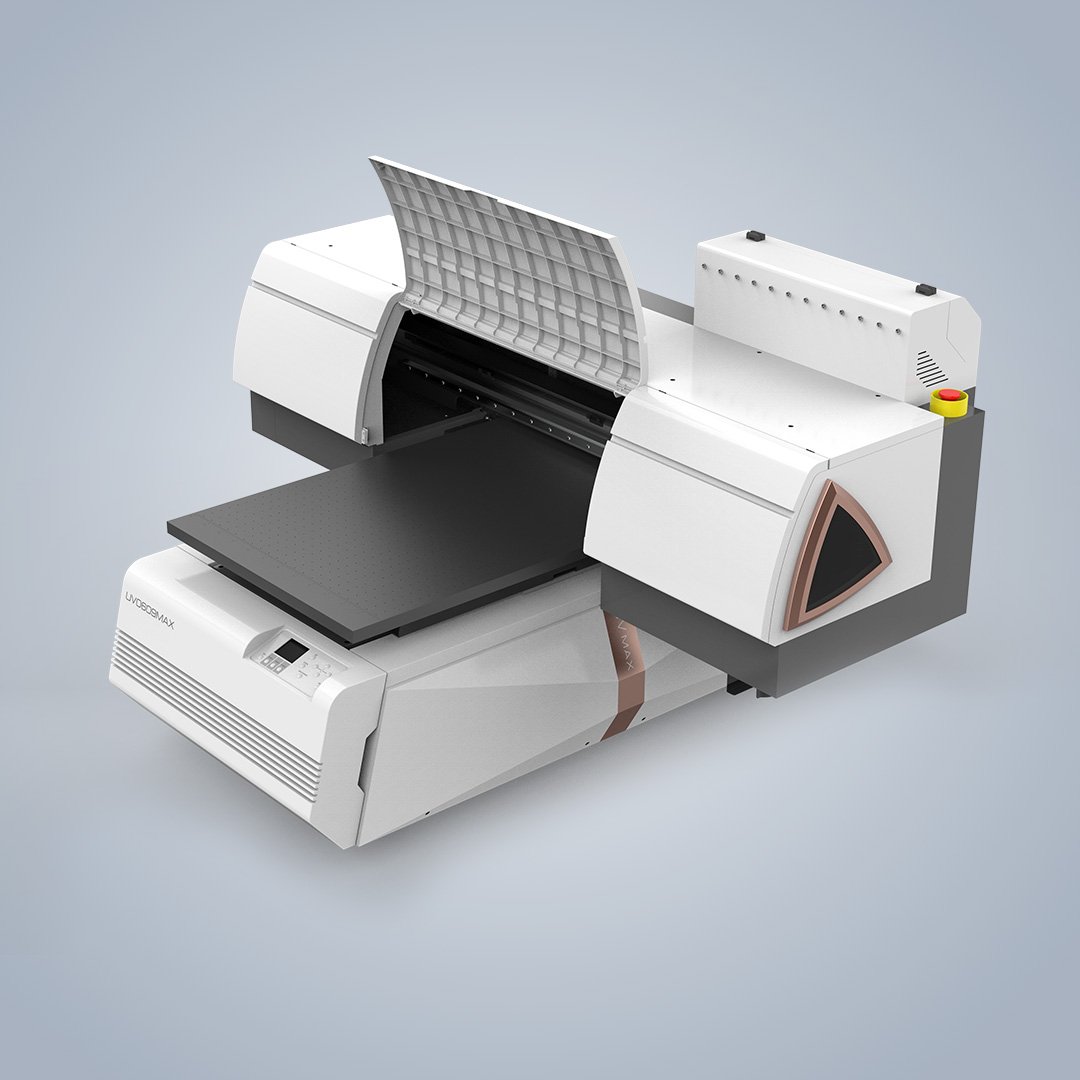

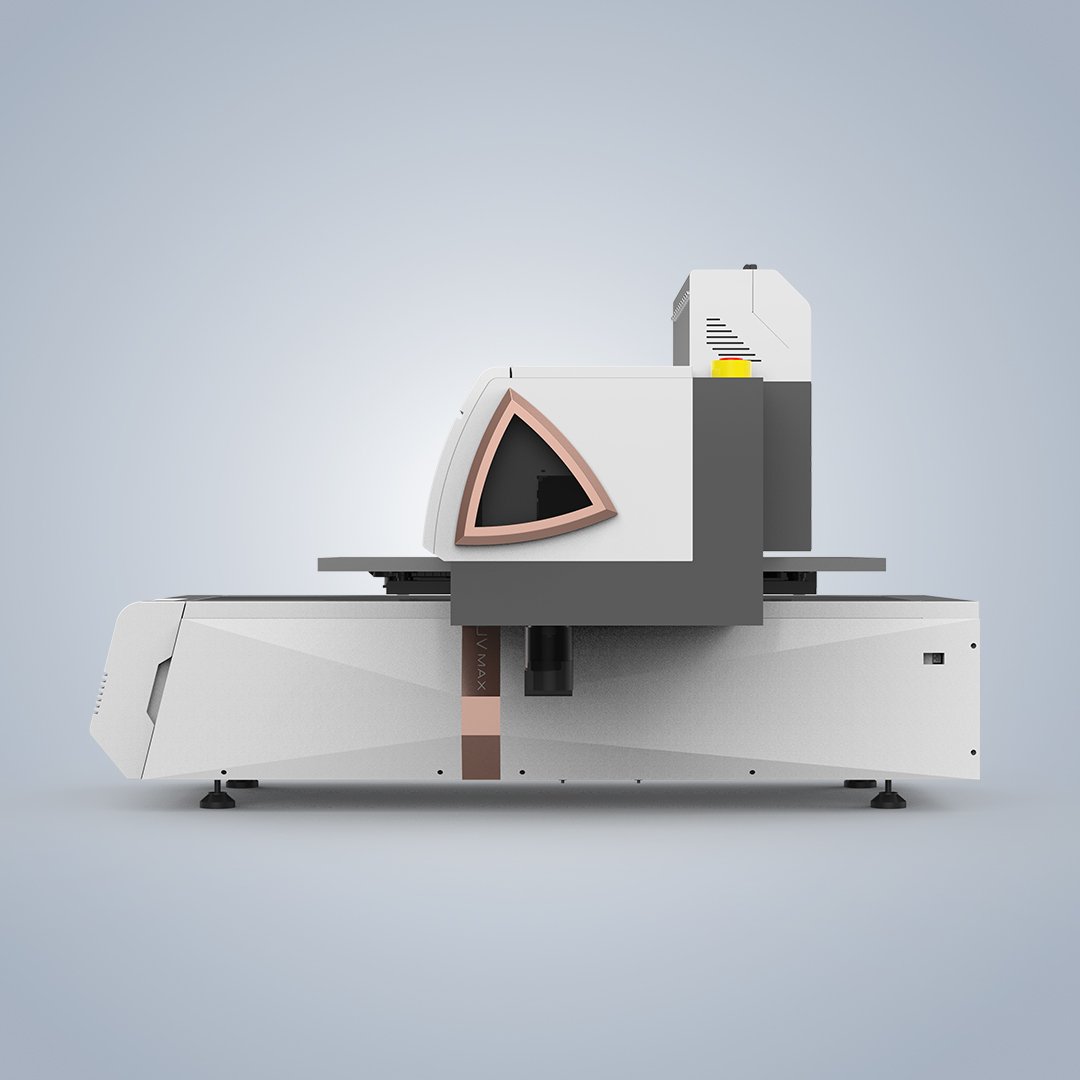

High-end digital inkjet UV printer NC-UV0609MAX-II
Machine Model:NC-UV0609MAX-II

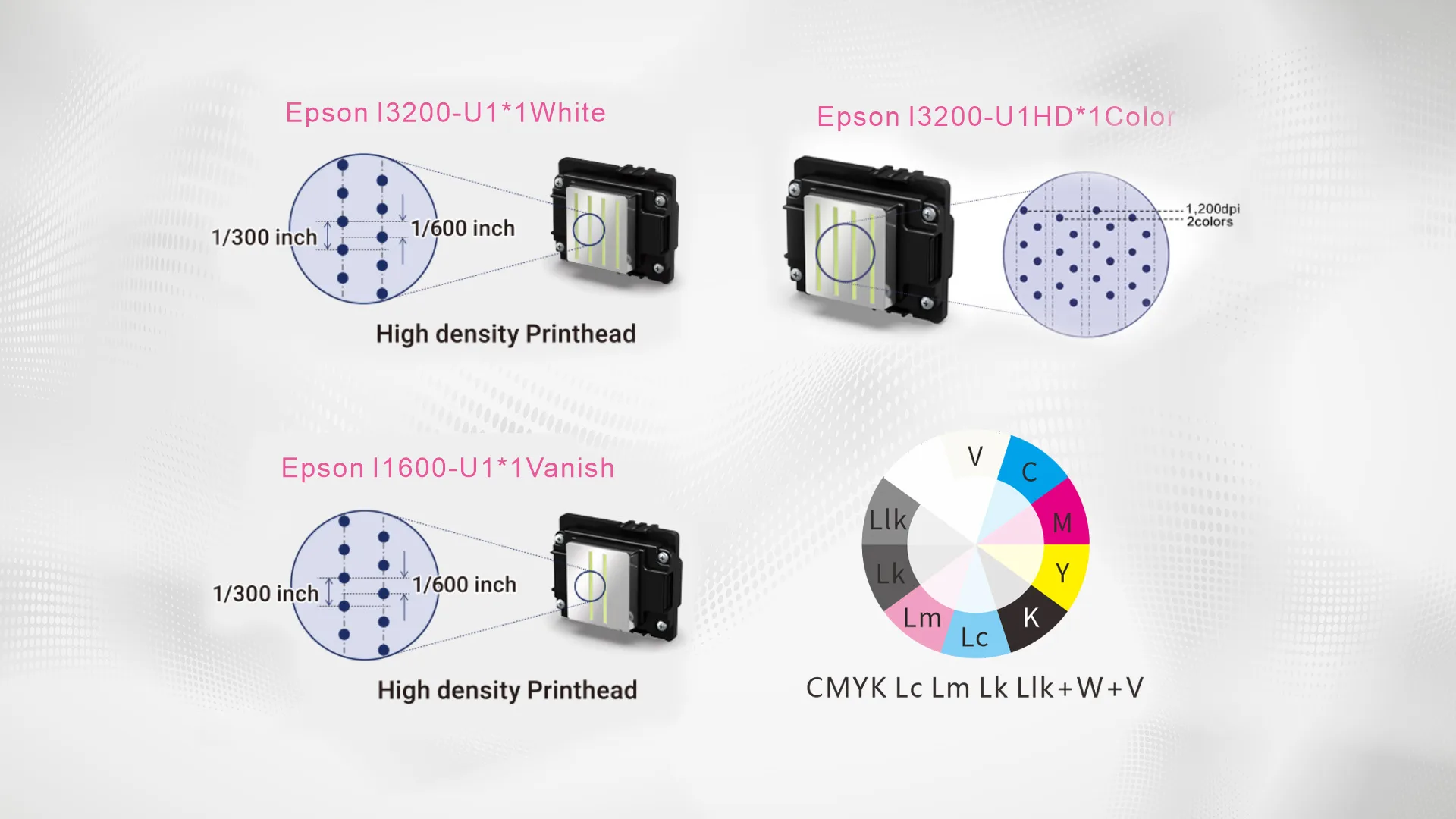

Printhead Configuration:Epson 13200-U1*1 (W) / Epson 13200-U1HD*1 (C) / Epson 11600-U1*1 (G)
Printable Area(L/W):600mm*900mm
Printing Thickness:0-180mm
Printing Method:White, colored, and glossy varnishes are applied together
Printing Mode:CMYK+LC+LM+LK+LIK+W+V
Resolution:720*600dpi / 720*900dpi / 720*1200dpi
Flatbed Printing Speed:Quick Mode 4-12 minutes/version
Printing Software:FlexiPRINT MiniServer 22 Nocai Edition
Rated Power:470W
Power Supply Voltage:AC220/110V，50HZ/60HZ
Work Environment(T/H):25°C-28°C / 35%-65%
Machine Size(L/W/H):1676mm*1638mm*975mm
Net Weight:226KG
Packaging Size(L/W/H):1810mm*1880mm*1070mm
Gross Weight:430KG
Packaging Type:wooden box
Ink Type:Environmentally friendly UV curing ink
Printer Type:Digital inkjet printer
Key Features
Designed for high-precision visual positioning UV printing, the UV printer NC-UV0609MAX-II integrates intelligent image recognition, high-drop printing, and multi-effect output to meet diverse customization and small-batch production needs. Equipped with industrial-grade printheads and a stable high-strength structure, it delivers vibrant colors, accurate positioning, and reliable long-term performance across multiple materials and applications.
- Supports 2–8 mm high-drop printing for uneven and textured surface applications.
- Industrial-grade printheads deliver vivid 8-color output with embossing, gloss, and matte effects.
- Integrated CNC-machined aluminum frame ensures stable operation and long-term durability.
- Optional cylindrical fixture supports 360° rotary printing for personalized products.
Product Highlights
Vibrant 8-Color Printing Effects
Equipped with industrial high-precision printheads, supporting vivid 8-color printing with embossing, gloss, and matte finishing effects.

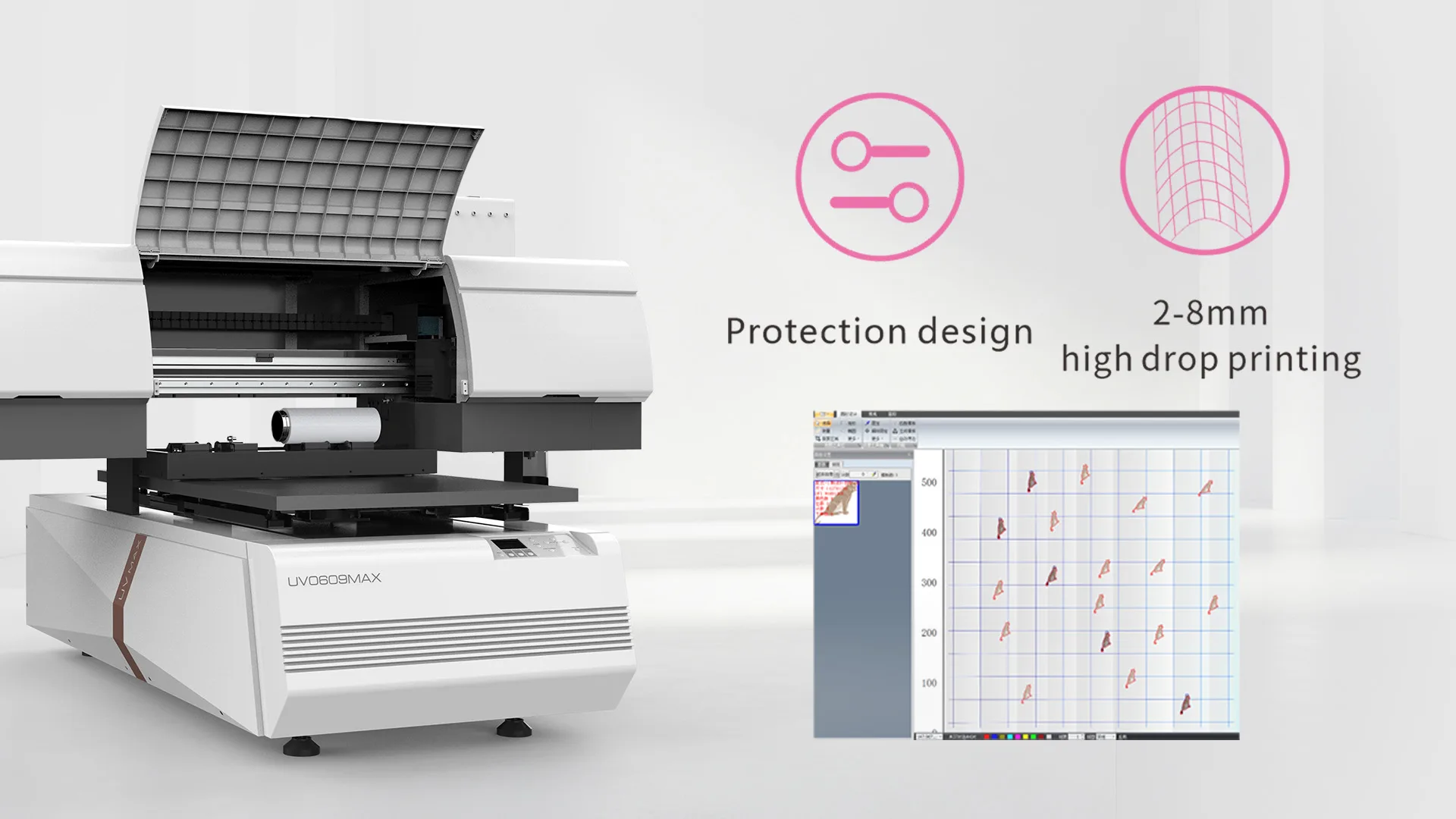

High-Drop Printing for Complex Surfaces
Software intelligent control supports 2–8 mm high-drop printing, meeting various uneven and textured surface printing needs.
Stable Ink Supply & Eco-Friendly Output

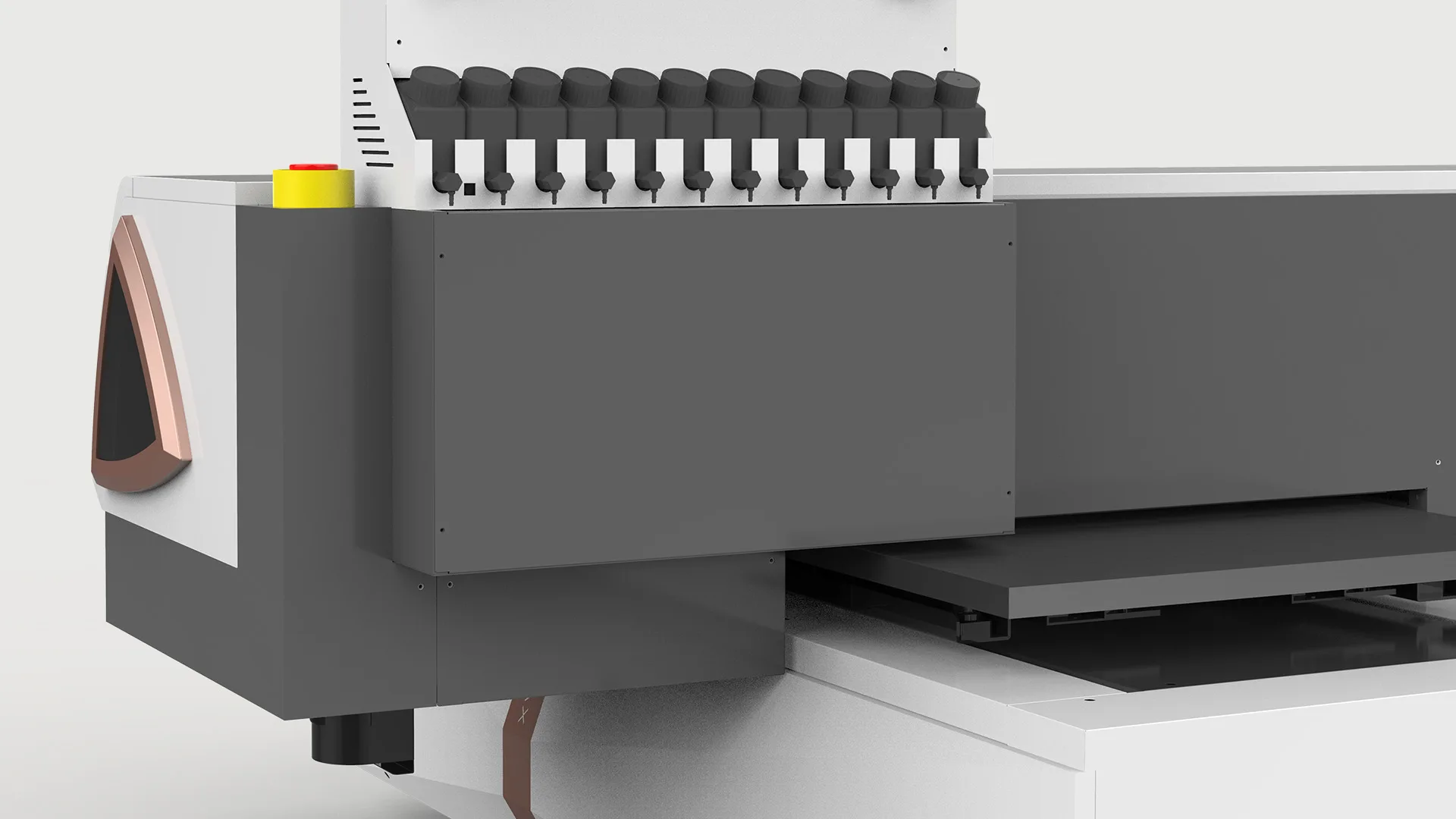

Negative-pressure ink supply ensures stable printing performance, while eco-friendly UV ink delivers vibrant colors and reliable output quality.
High-Strength Structure & Stable Output

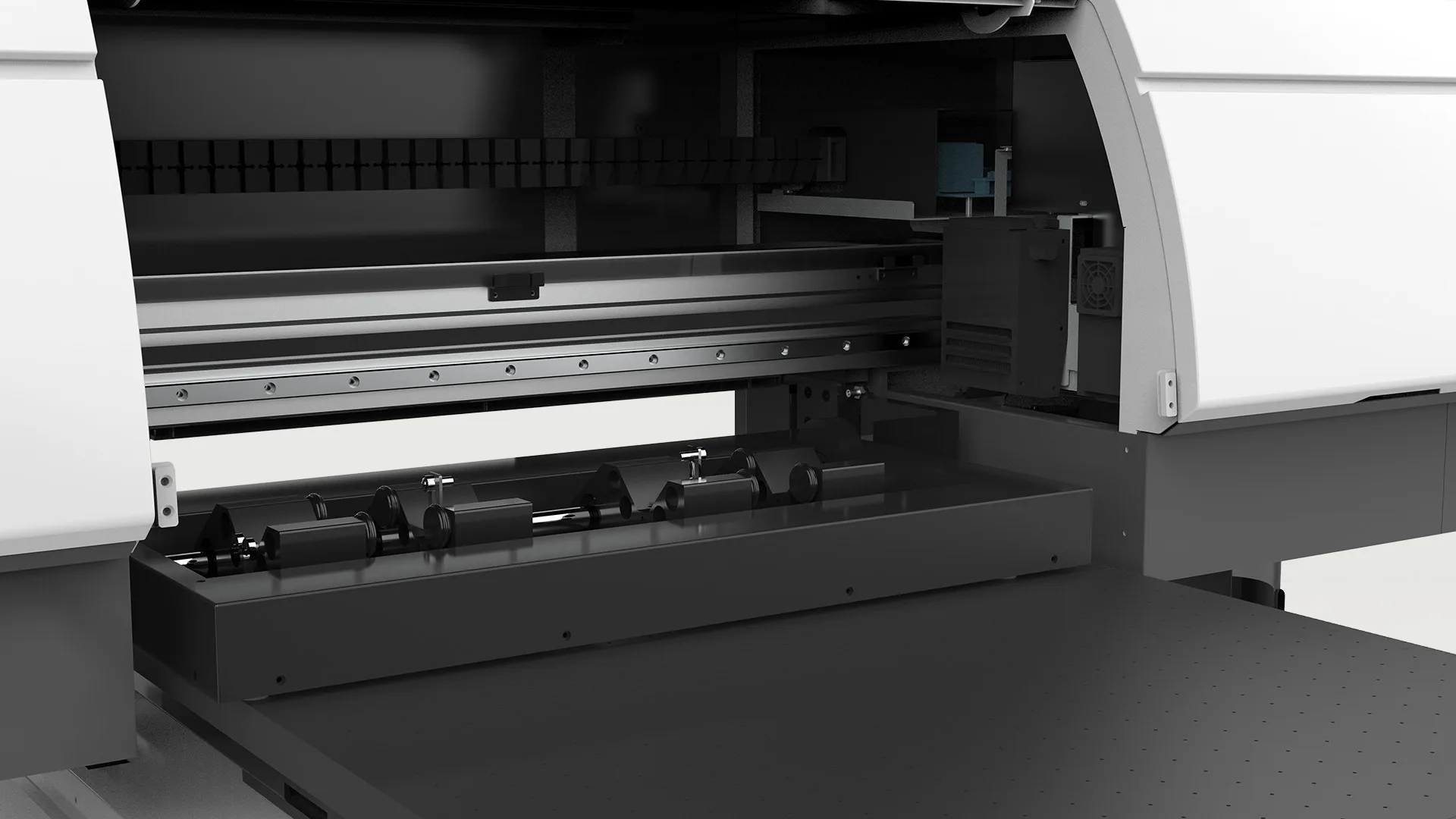

The CNC-machined aluminum alloy frame and precision guide rail system ensure long-term stability and accurate printing performance.
Ink Solutions

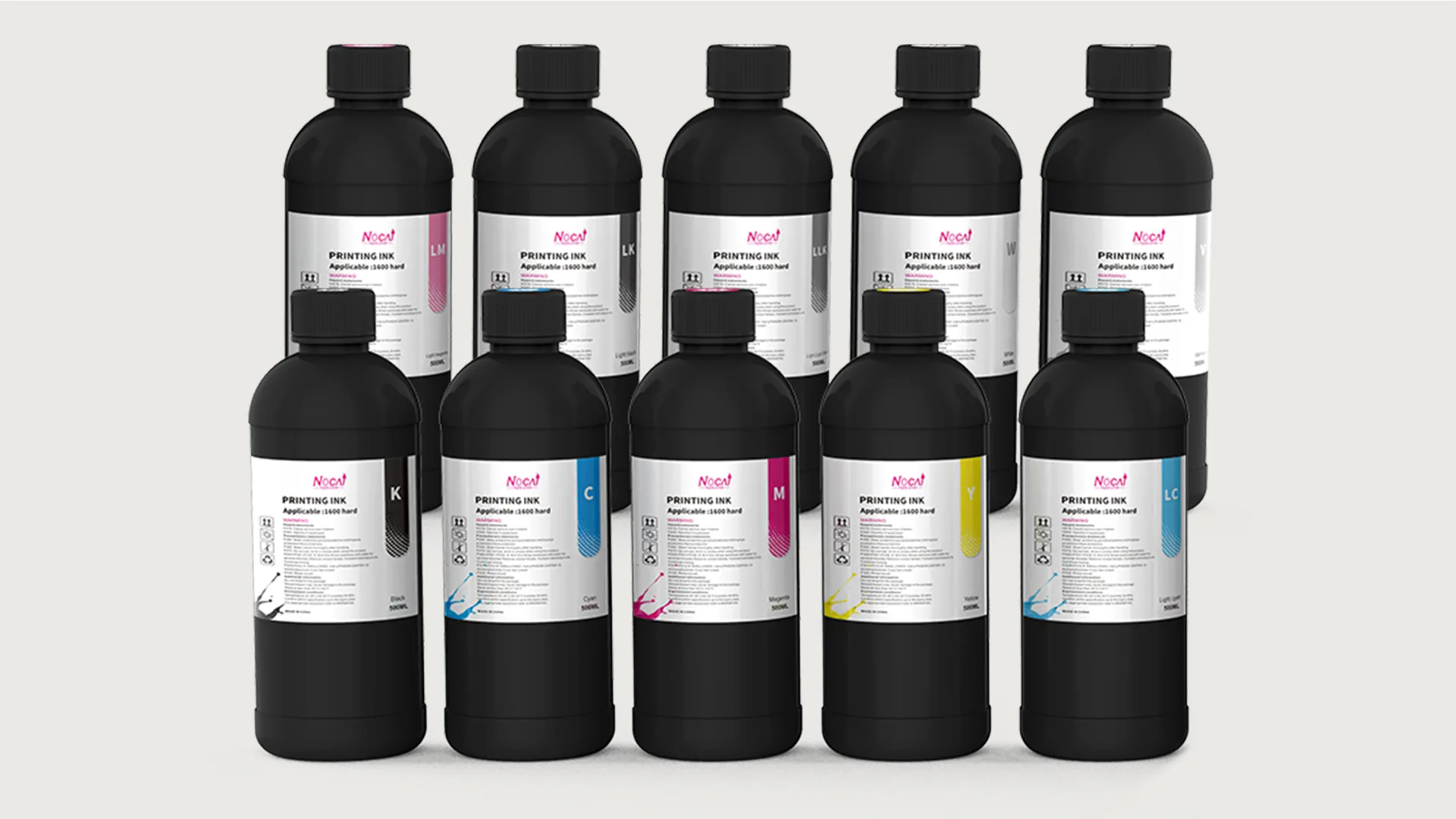

Hard UV Ink
Product Features
Fast-curing UV ink with strong adhesion, vibrant colors, and excellent durability for rigid materials and long-lasting applications.
Specifications
Type: Hard UV Curable Ink
Colors: C / M / Y / K / Lc / Lm / Lk / Llk / W / V
Capacity: 500 ml
Compatible Printhead: Epson i1600

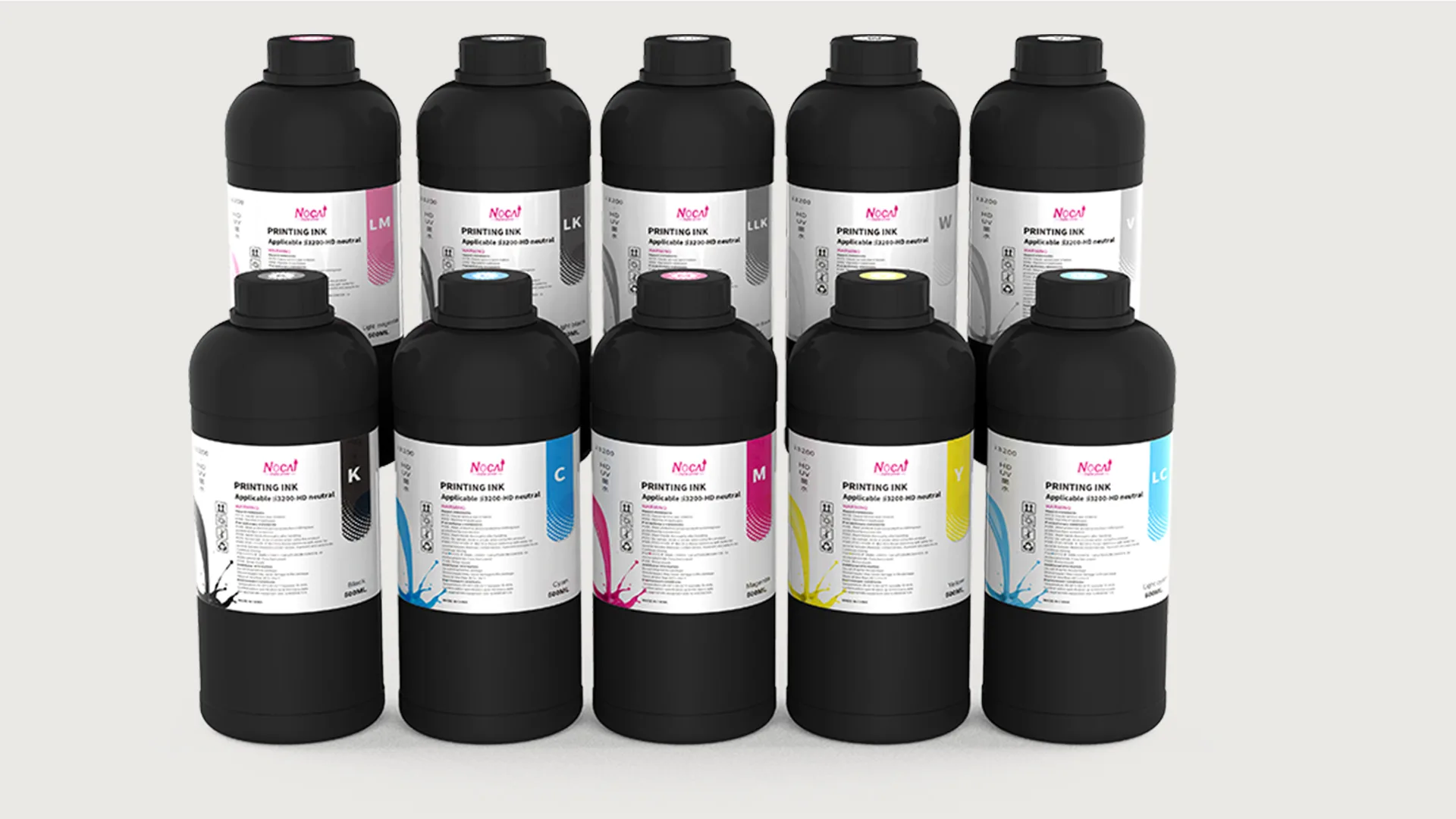

Neutral UV Ink
Product Features
Balanced flexibility and hardness provide stable adhesion, vibrant colors, and reliable performance on various semi-rigid materials.
Specifications
Type: Flexible UV Curable Ink
Colors: C / M / Y / K / W / V
Capacity: 500 ml
Compatible Printhead: Epson i1600 / Epson i3200
