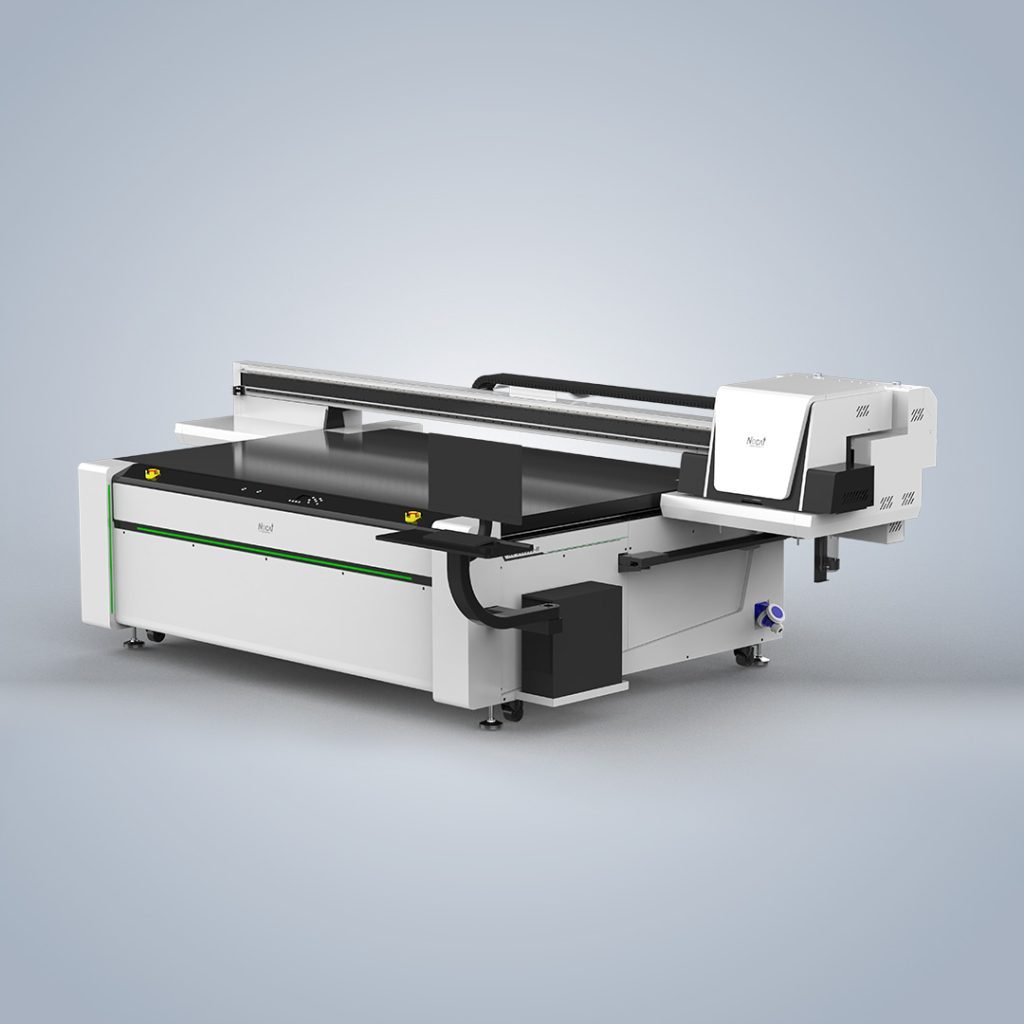

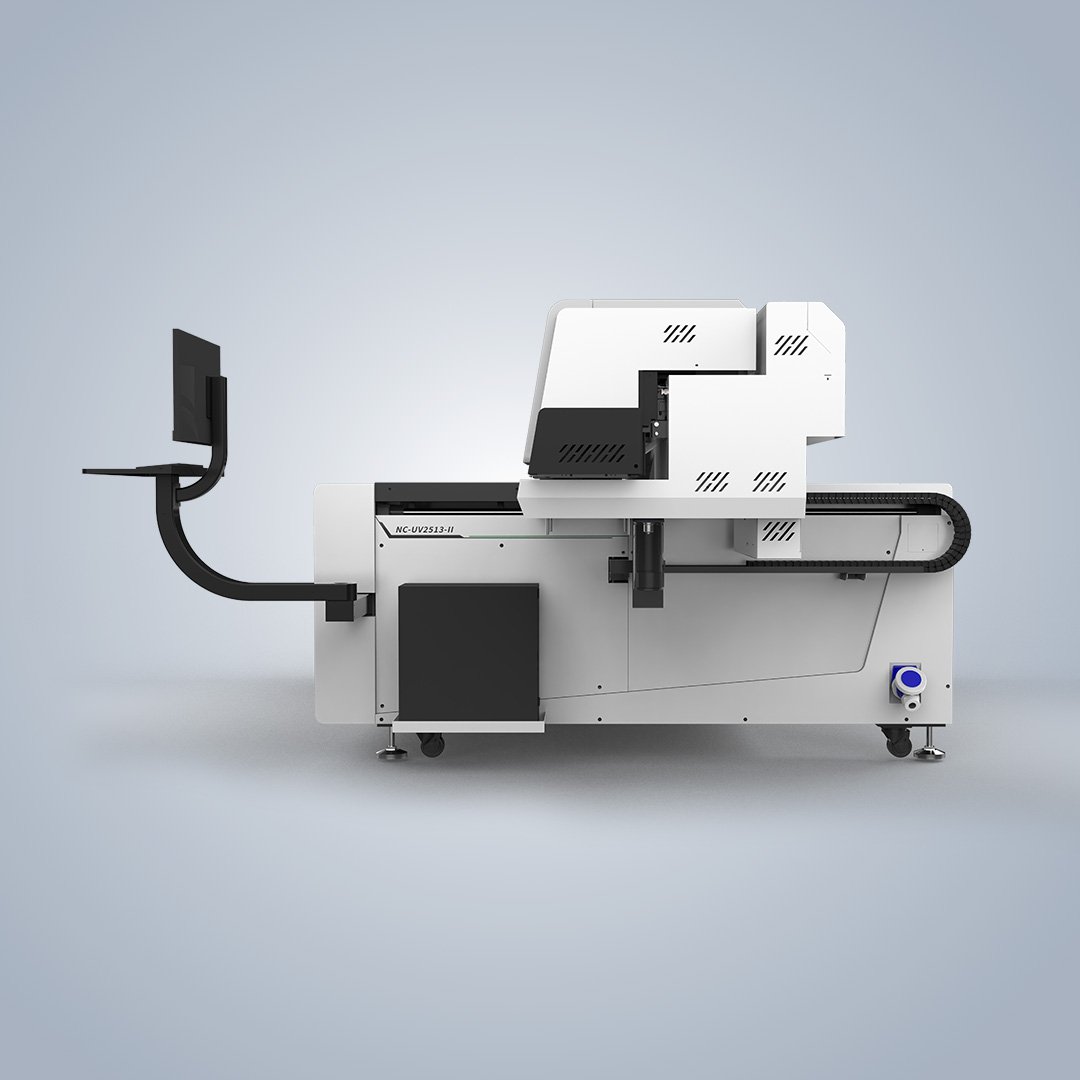

Large format flatbed UV printer NC-UV2513-II
Machine Model:NC-UV2513-II
Printhead Configuration:Epson13200-U1*8
Printable Area(L/W):2500mm*1300mm
Printing Thickness:0-100mm
Printing Method:Colored white and colored varnishes are produced together
Printing Mode:CMYK+LC+LM+LK+LLK+W+V
Resolution:720*1200dpi / 720*1800dpi
Printing Software:RIIN
Rated Power:6800W
Power Supply Voltage:AC220V，50HZ/60HZ
Work Environment(T/H):25°C-28°C / 35%-65%
Machine Size(L/W/H):2542mm*4161mm*1362mm (including computer stand)
Net Weight:800KG
Packaging Type:wooden box
Ink Type:Environmentally friendly UV curing ink
Printer Type:Digital inkjet printer
Key Features

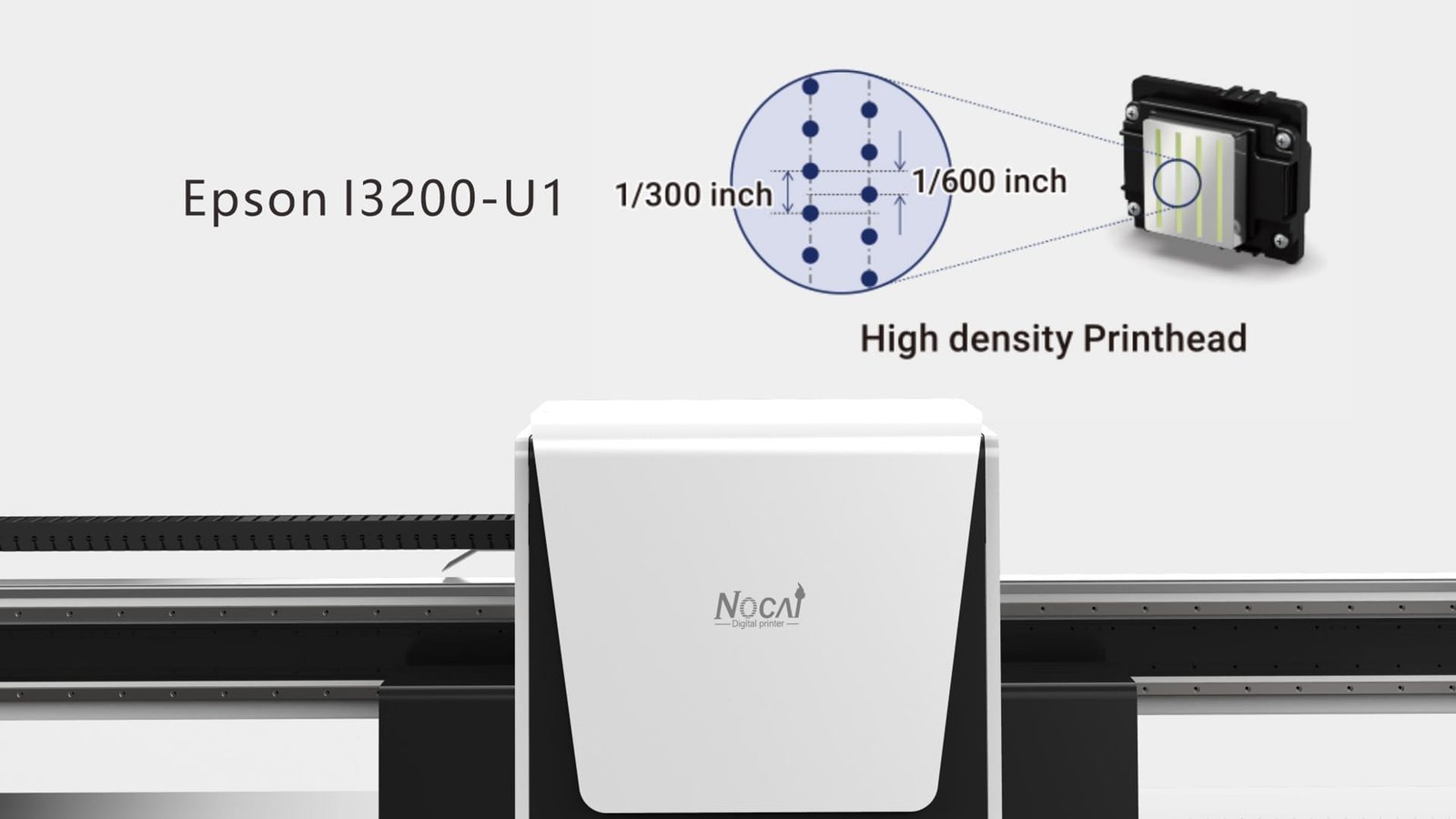

- 8 Epson I3200-U1 printheads deliver up to 1800 dpi high-resolution printing.

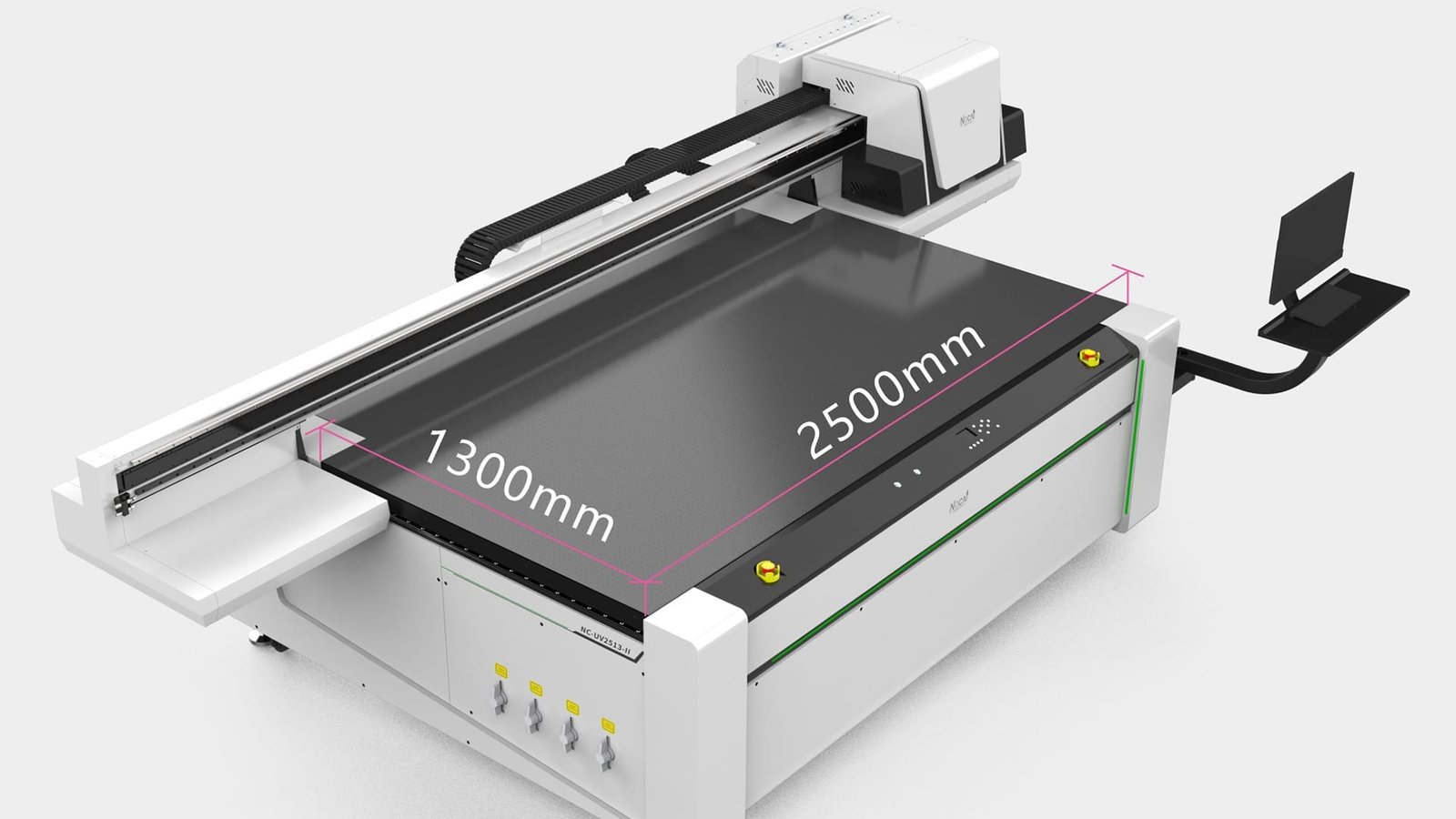

- Large 2500 × 1300 mm printing area supports efficient batch production.
- High-speed printing system achieves output up to 10㎡/h.
- Supports multiple printing modes for diversified texture and visual effects.
- Industrial steel structure ensures stable and reliable long-term operation.
Product Highlights
8-Head High-Precision Printing
Equipped with 8 Epson I3200-U1 printheads and precise ink control technology for detailed, sharp, and high-resolution printing output.
Large Printing Area & Fast Production
The 2500 × 1300 mm platform and high-speed printing system support efficient large-scale production with output up to 10㎡/h.
Industrial Structure & Stable Performance

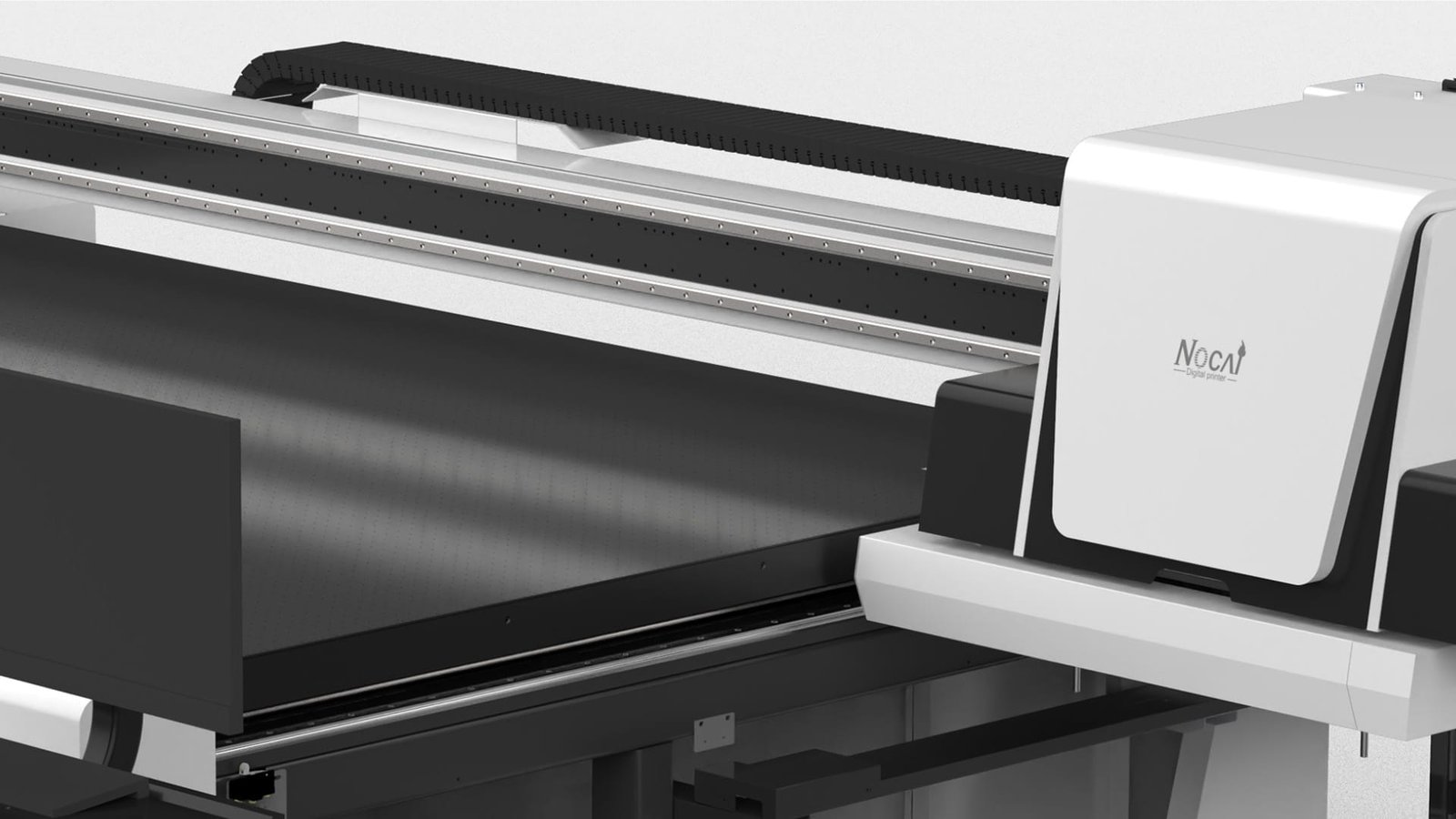

The integrated steel frame, dual-screw Y-axis transmission, and silent guide rails ensure stable, accurate, and low-noise operation.
Smart Operation & Easy Maintenance

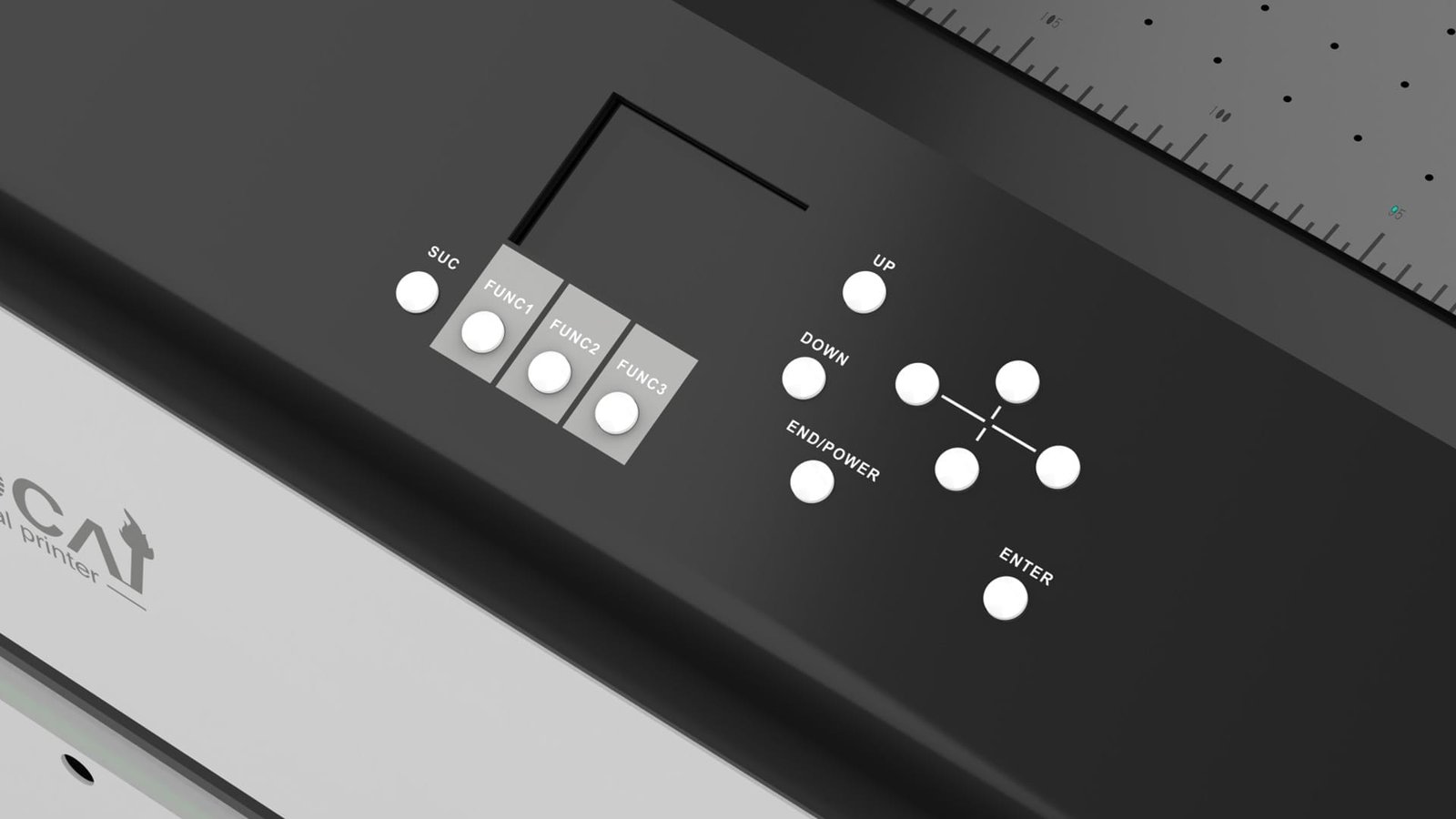

User-friendly software interface, automatic carriage lifting, and printhead moisturizing functions simplify daily operation and maintenance.
Ink Solutions

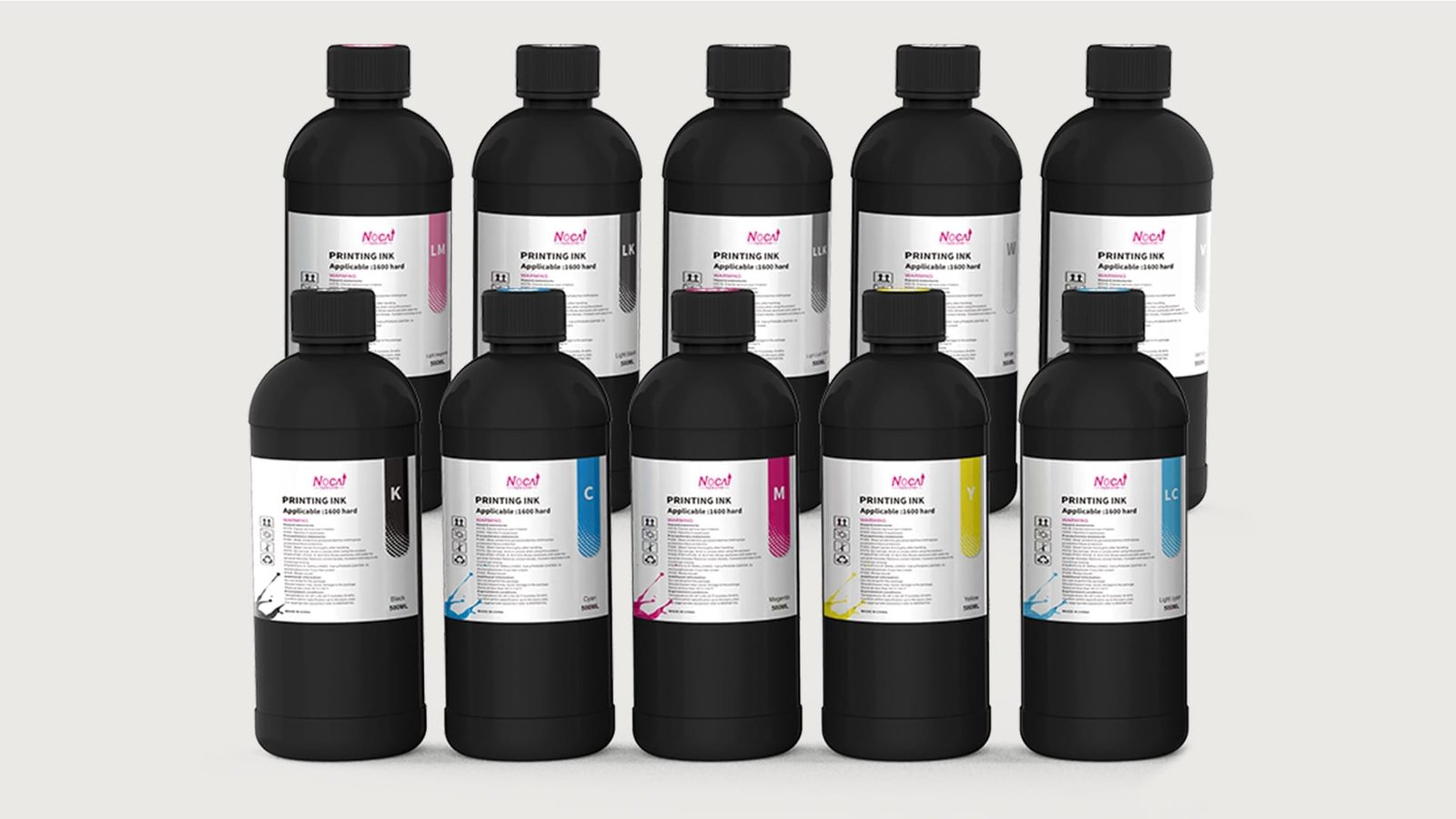

UV Ink
Product Features
Fast-curing UV ink with strong adhesion, vibrant colors, and excellent durability for rigid materials and long-lasting applications.
Specifications
Type: UV Curable Ink
Colors: C / M / Y / K / Lc / Lm / Lk / Llk / W / V
Capacity: 500 ml
Compatible Model:NC-UV2513-II

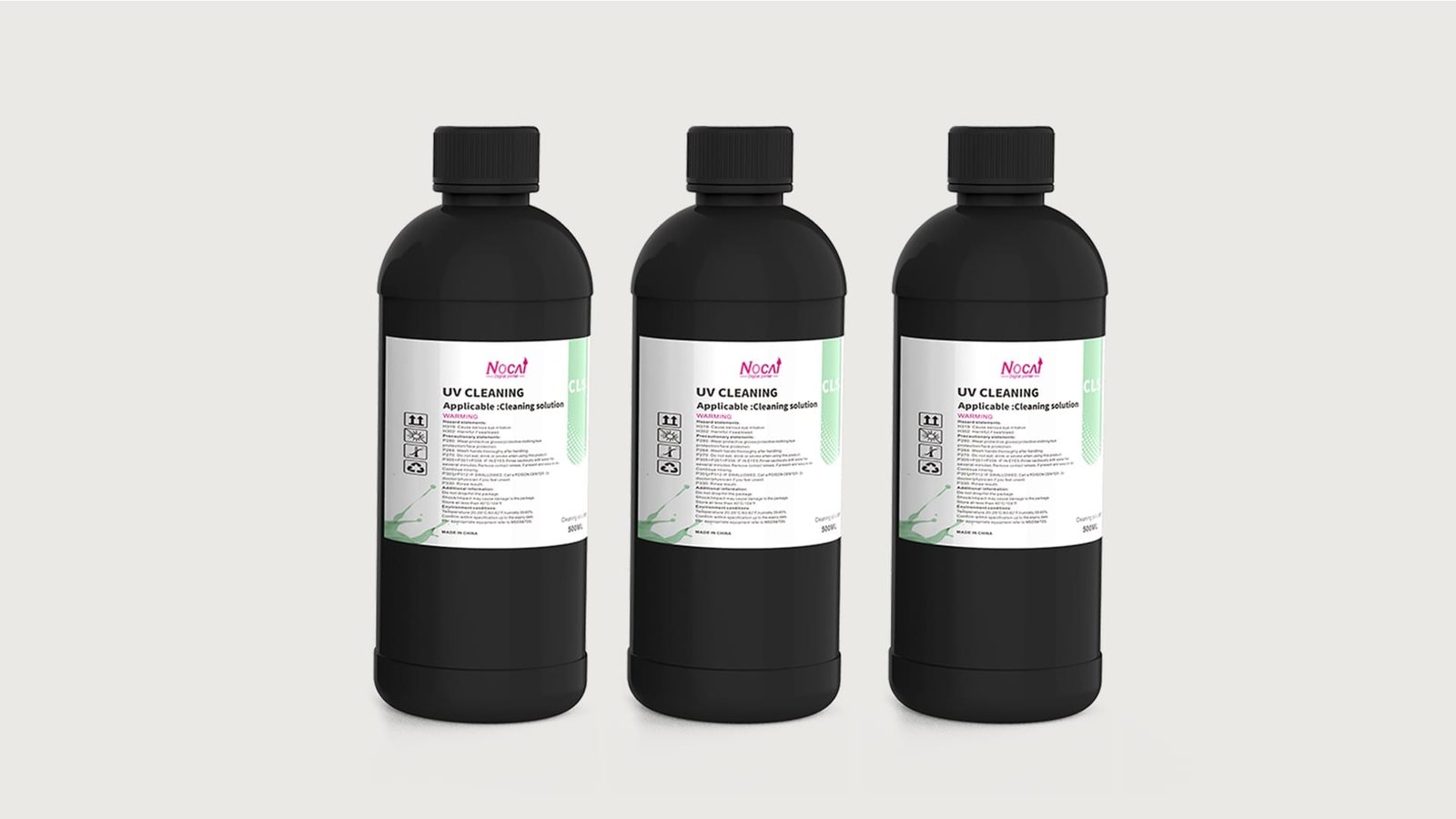

UV Cleaning Solution
Product Features
Efficiently removes UV ink residue while protecting printheads with a low-corrosion, low-odor, and residue-free formula.
Specifications
Type: UV Cleaning Solution
Color: Transparent
Capacity: 500 ml
Compatible Model: All Nocai UV Printers
