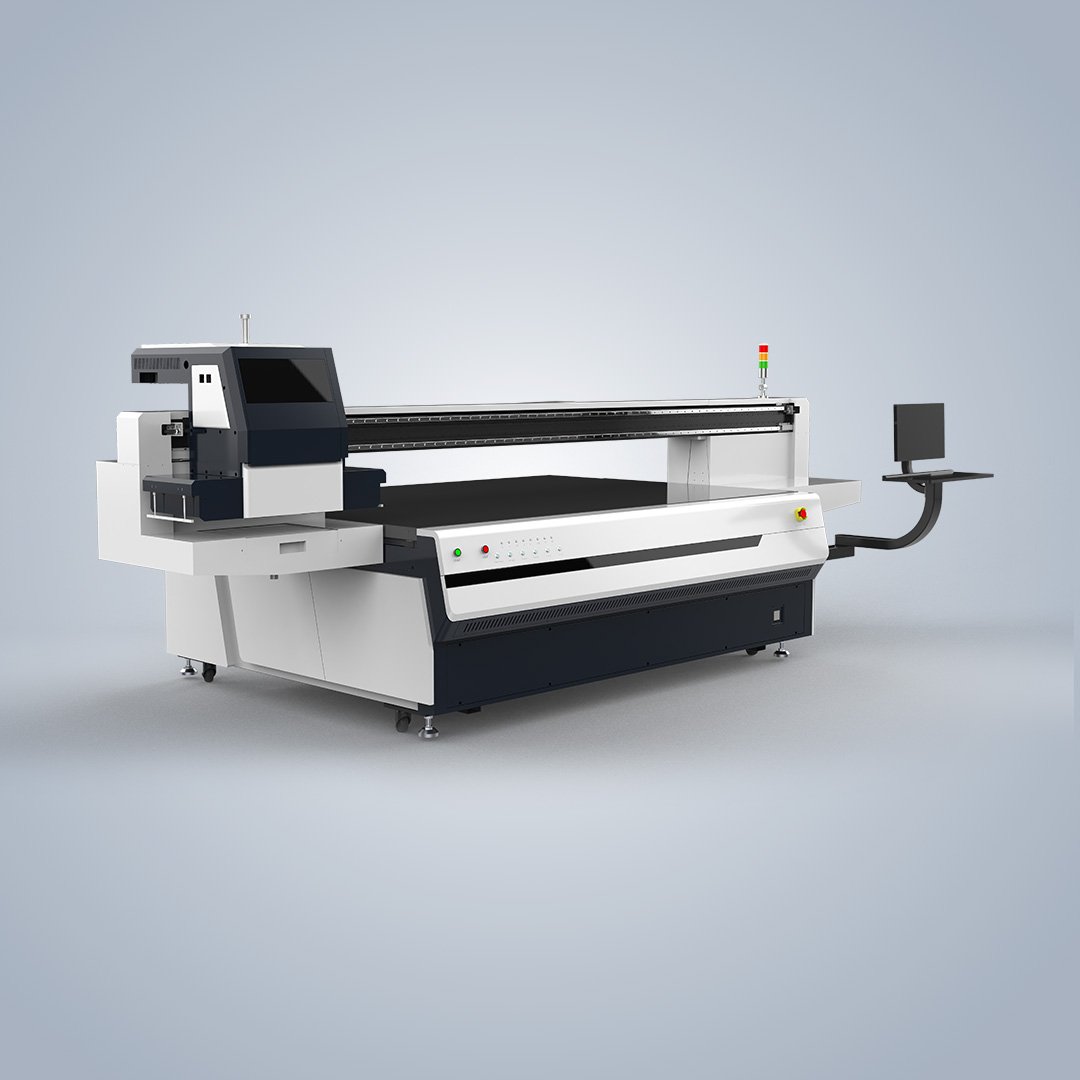

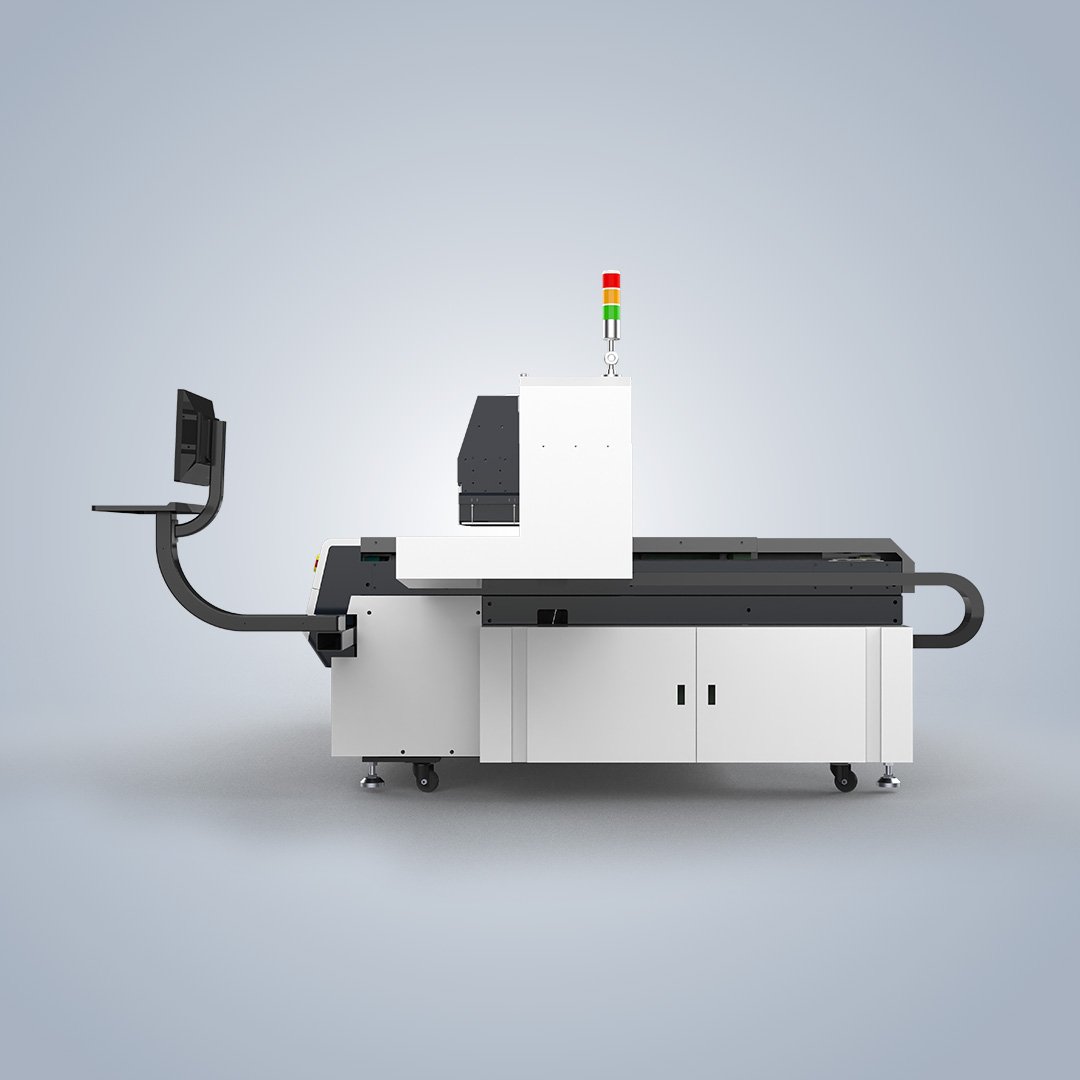

Vision-Positioning Large-Format UV Printer NC-UV2513
Machine Model:NC-UV2513
Printhead Configuration:RICOH GEN6*2-8 (optional)
Printable Area(L/W):2500mm*1300mm±2mm
Printing Thickness:0-240mm
Color Scheme:C+M+Y+K+LC+LM+W+V (free combination)
Maximum Resolution:2400dpi
Flatbed Printing Speed:Fast mode 6.77 square meters/hour
Printing Software:RIIN / PP
Rated Power:6800W
Power Supply Voltage:AC220V，50HZ/60HZ
Work Environment(T/H):25°C-28°C / 35%-65%
Machine Size(L/W/H):4256mm*2080mm*1600mm
Net Weight:1300KG
Packaging Type:wooden box
Ink Type:Environmentally friendly UV curing ink
Printer Type:Digital inkjet printer
Key Features
- AI visual positioning system enables automatic scanning and accurate material alignment.
- Optional 2–8 RICOH GEN6 printheads support high-speed industrial production.
- Up to 2400 dpi printing resolution with vivid colors and fine detail reproduction.
- Large 2500 × 1300 mm printing area supports efficient batch production.
- Supports up to 15 mm high-drop printing for uneven and textured surfaces.
Product Highlights

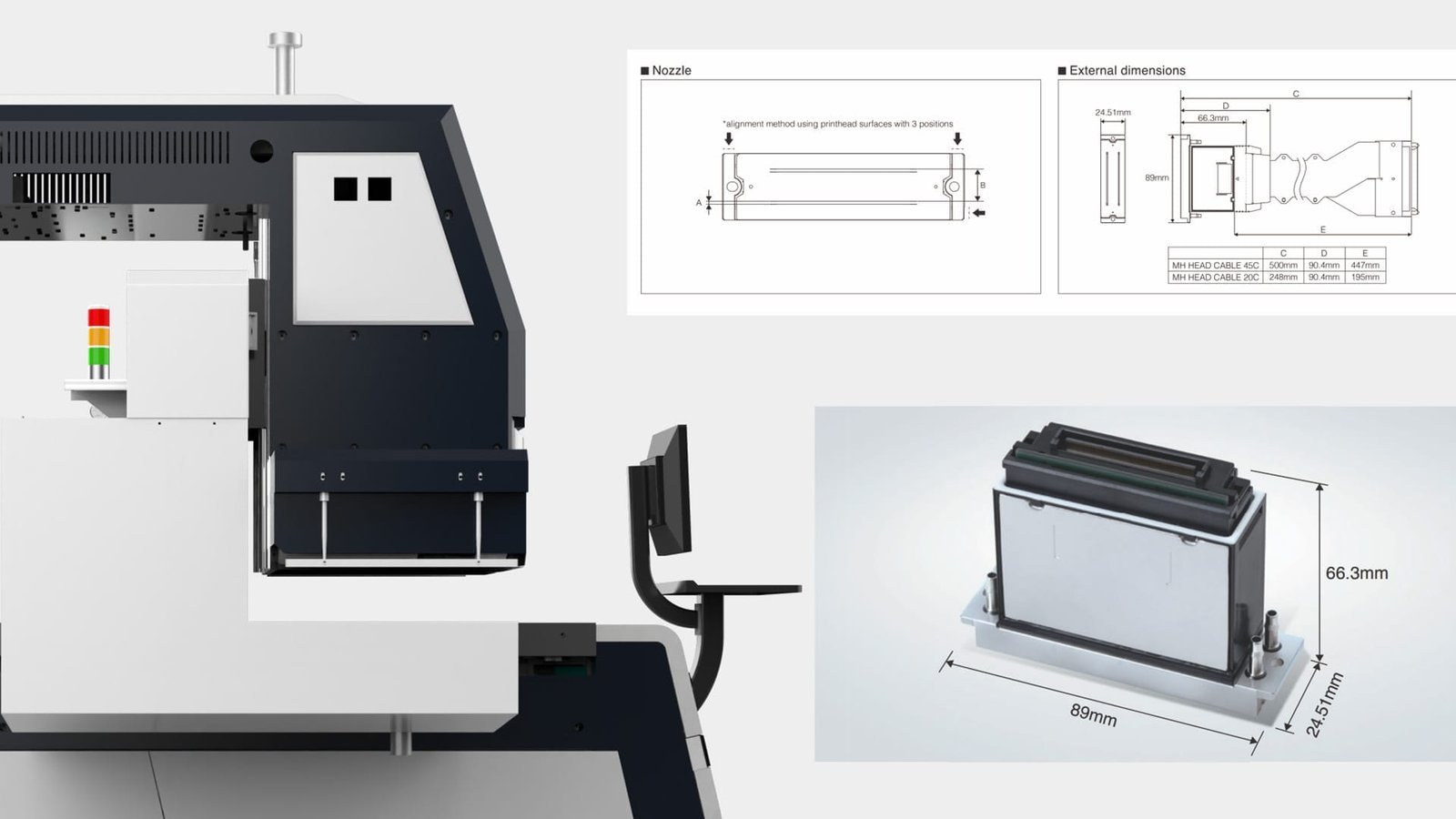

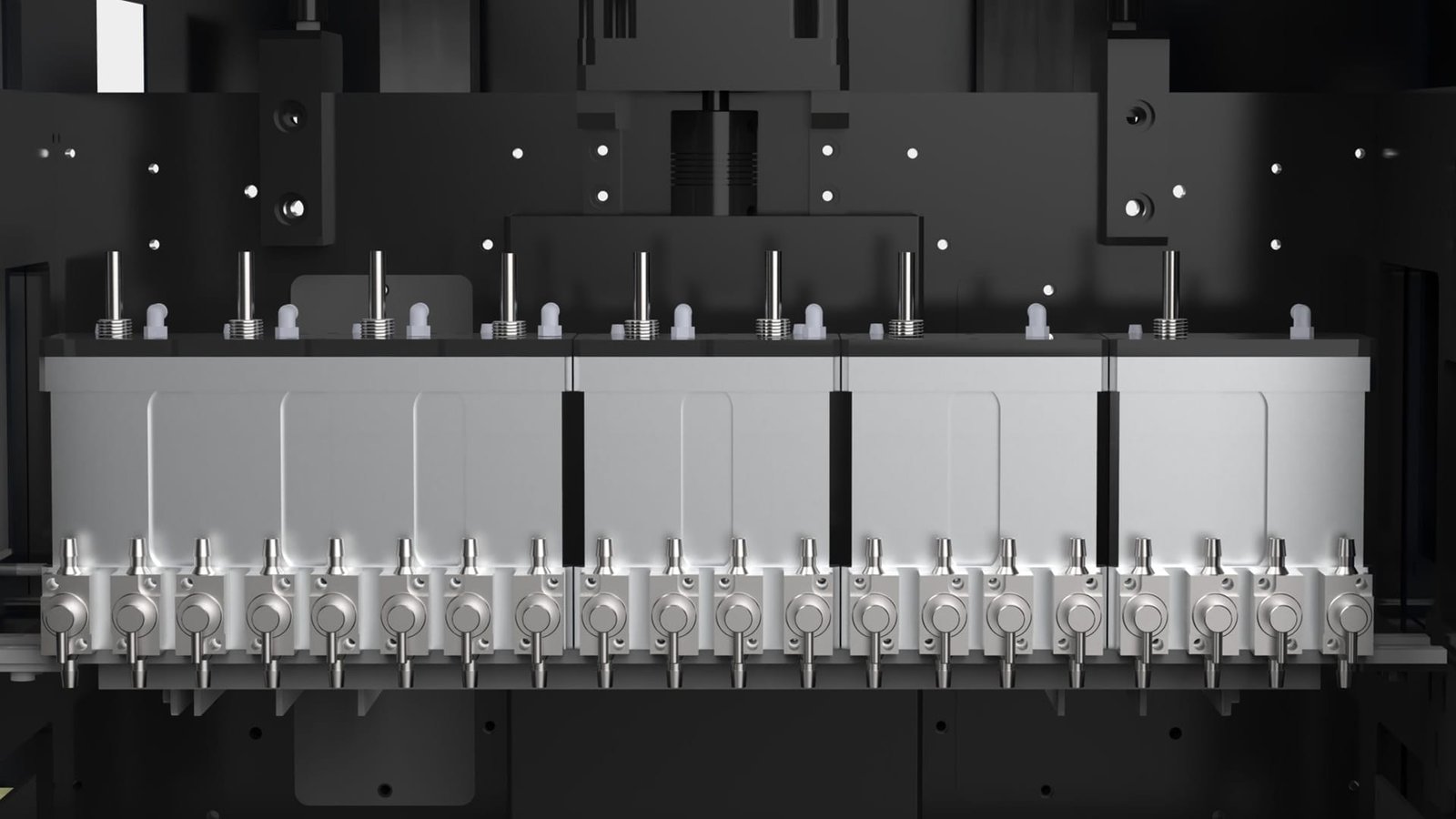

Industrial Printheads & High-Speed Production
Supports flexible configuration of 2–8 RICOH GEN6 industrial printheads with high durability and printing speeds up to 6.77㎡/h.

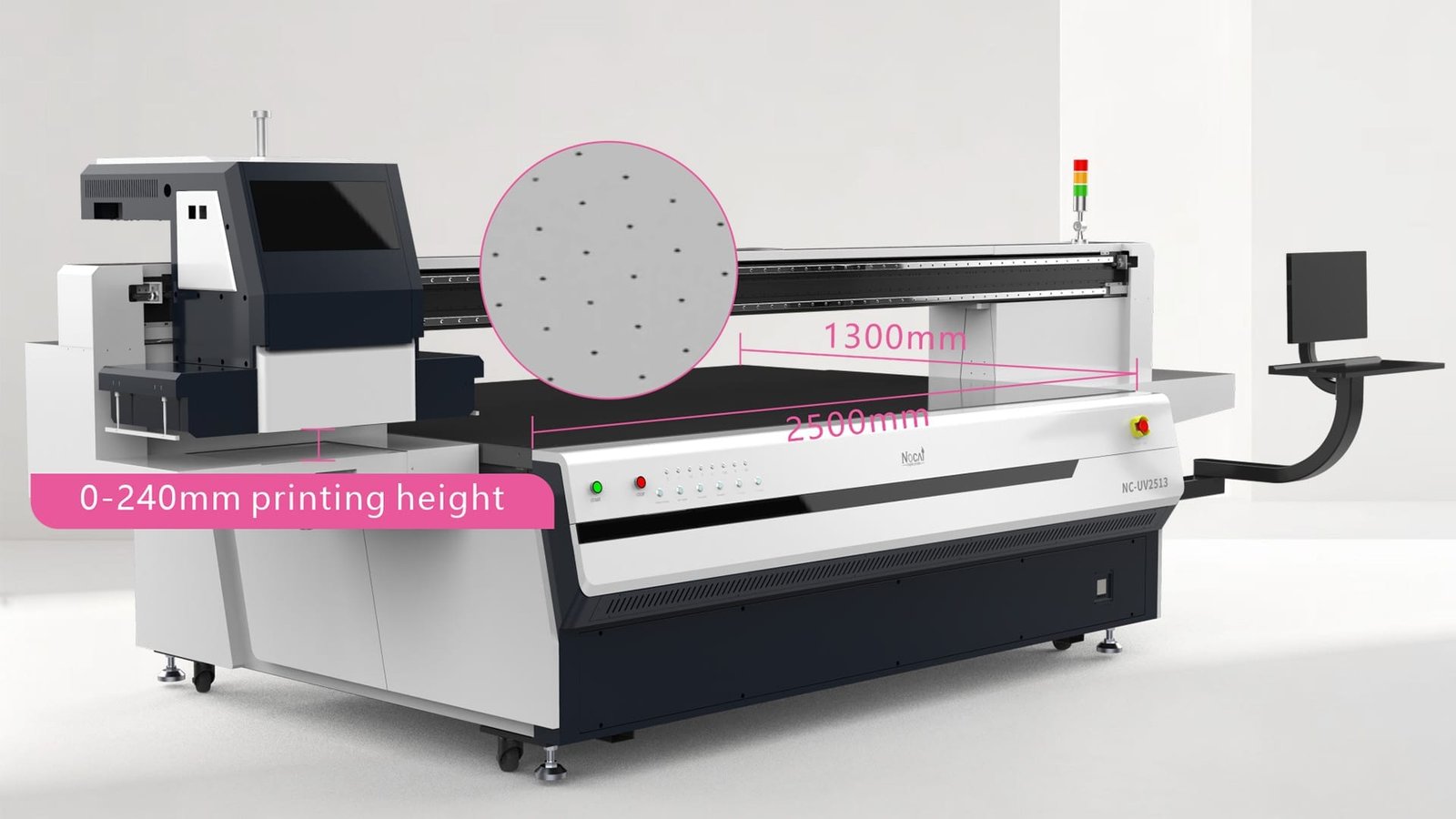

Large Printing Area & Wide Material Compatibility
The 2500 × 1300 mm platform and 0–240 mm printing height support various materials and industrial applications.

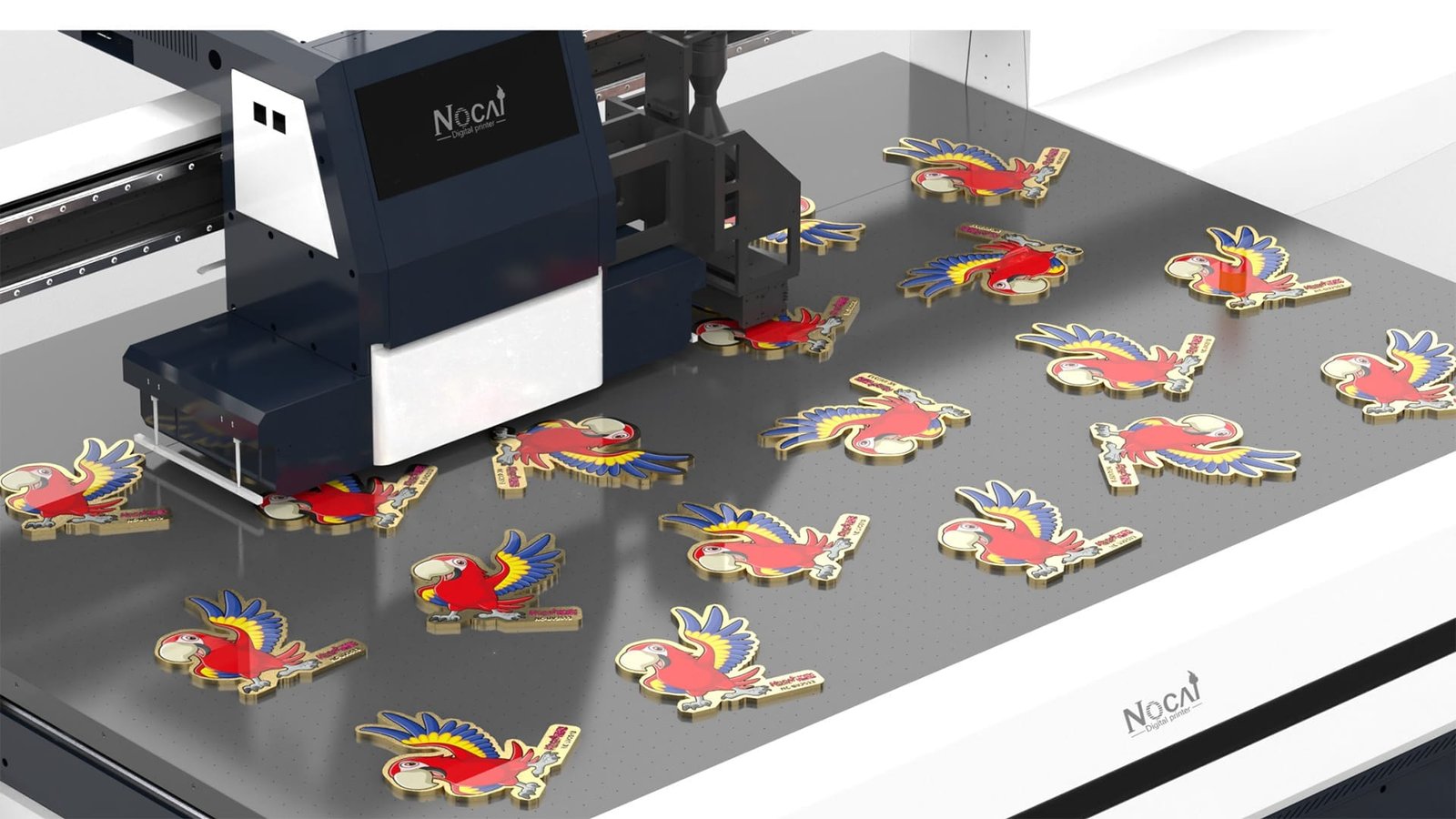

AI Visual Positioning & Automatic Alignment
Integrated HD visual recognition technology enables automatic material scanning and precise positioning for efficient batch printing.
Stable Ink Supply & Intelligent Temperature Control
The negative-pressure ink supply system and intelligent heating control ensure stable ink delivery and reliable printing performance.
Ink Solutions

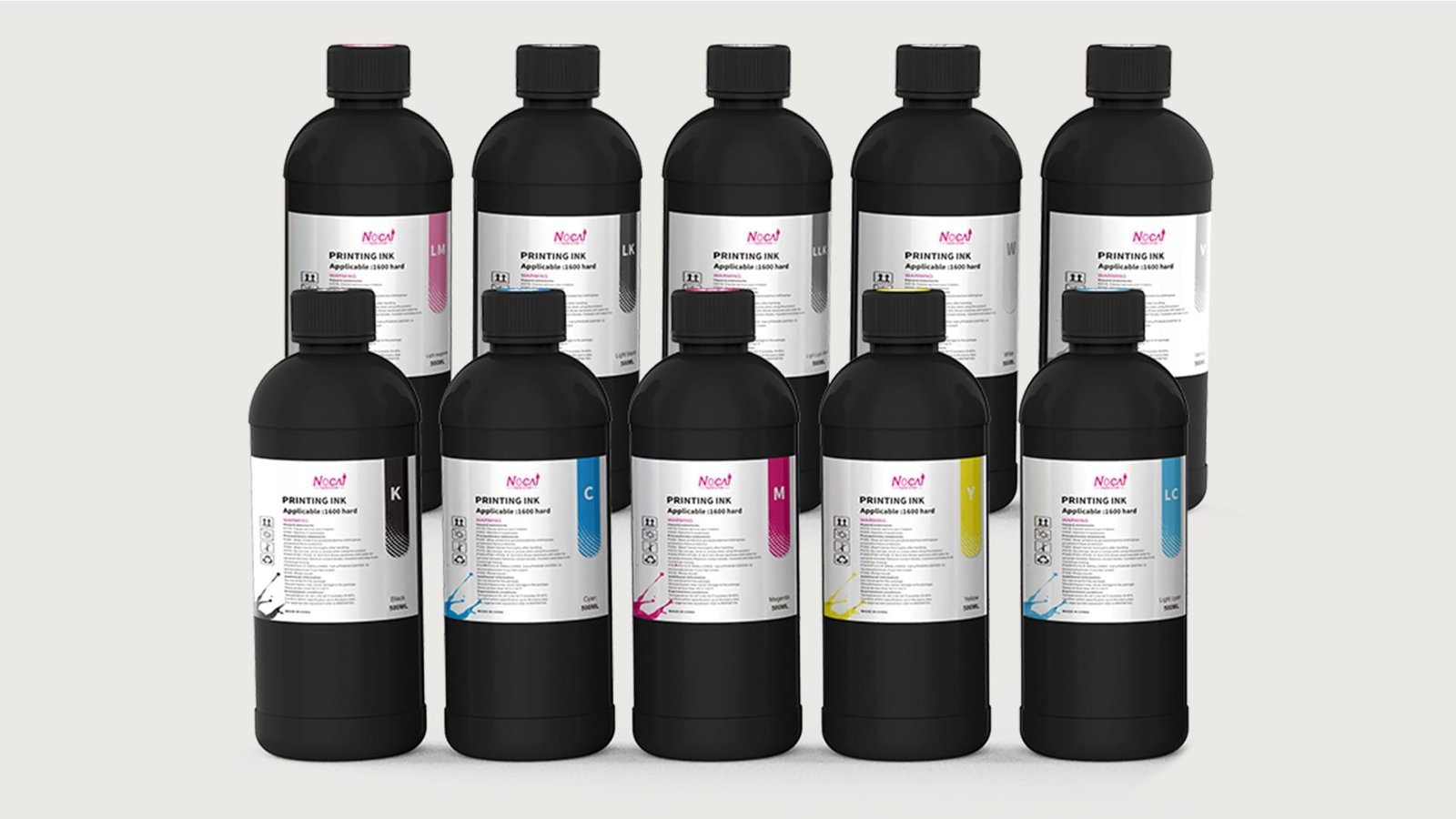

UV Ink
Product Features
Fast-curing UV ink with strong adhesion, vibrant colors, and excellent durability for rigid materials and long-lasting applications.
Specifications
Type: UV Curable Ink
Colors: C / M / Y / K / Lc / Lm / Lk / Llk / W / V
Capacity: 500 ml
Compatible Model:NC-UV2513

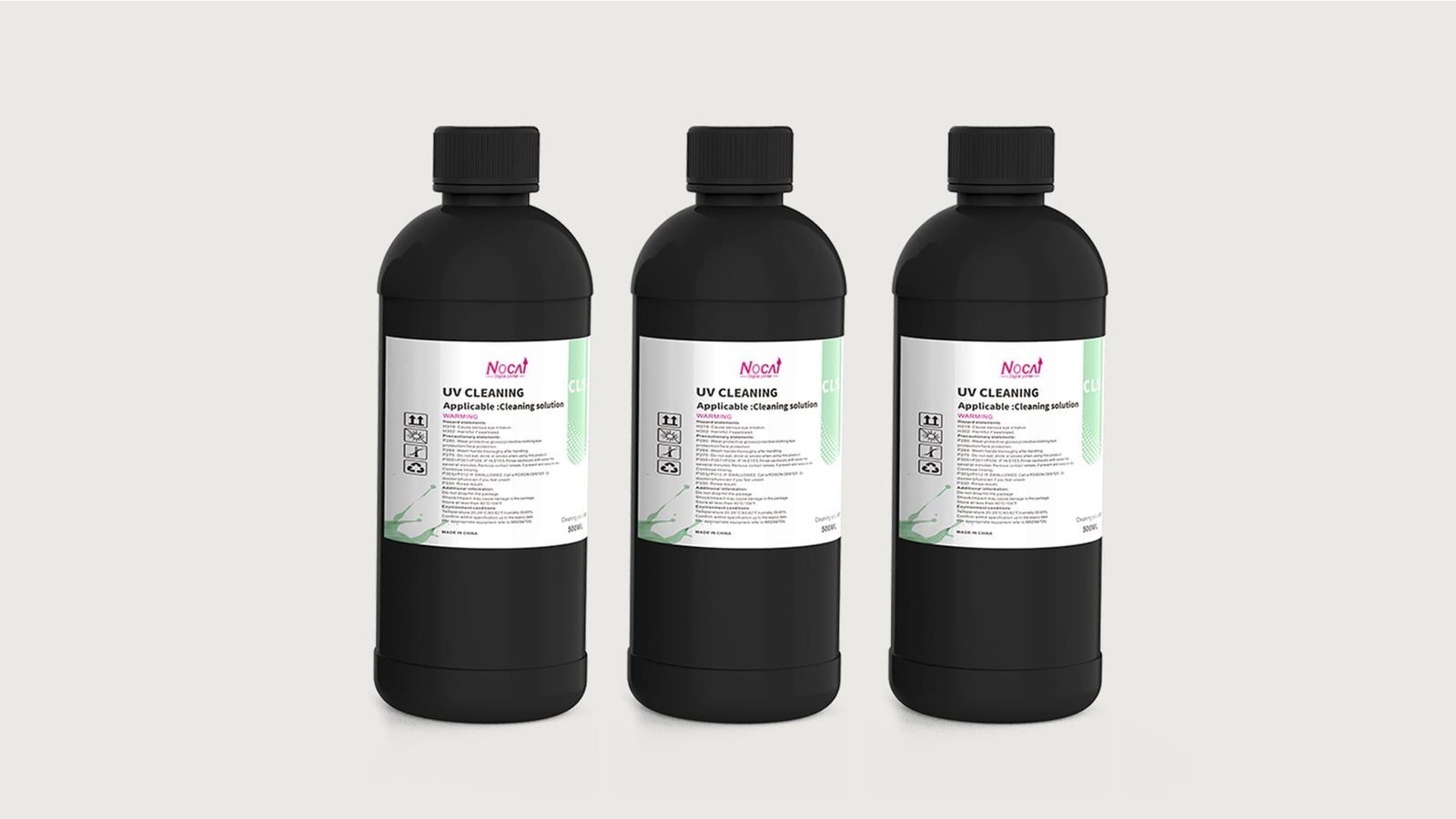

UV Cleaning Solution
Product Features
Efficiently removes UV ink residue while protecting printheads with a low-corrosion, low-odor, and residue-free formula.
Specifications
Type: UV Cleaning Solution
Color: Transparent
Capacity: 500 ml
Compatible Model: All Nocai UV Printers
