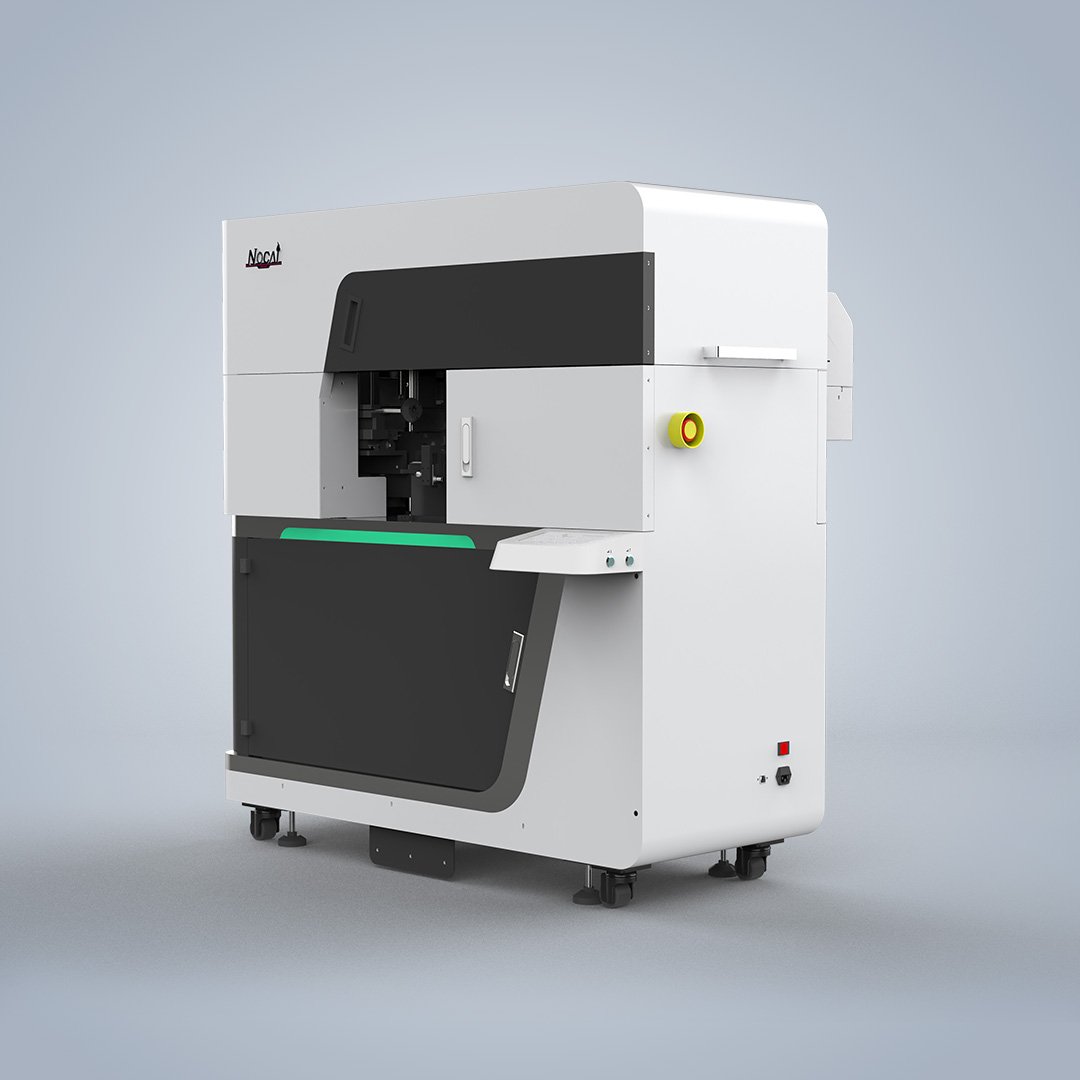

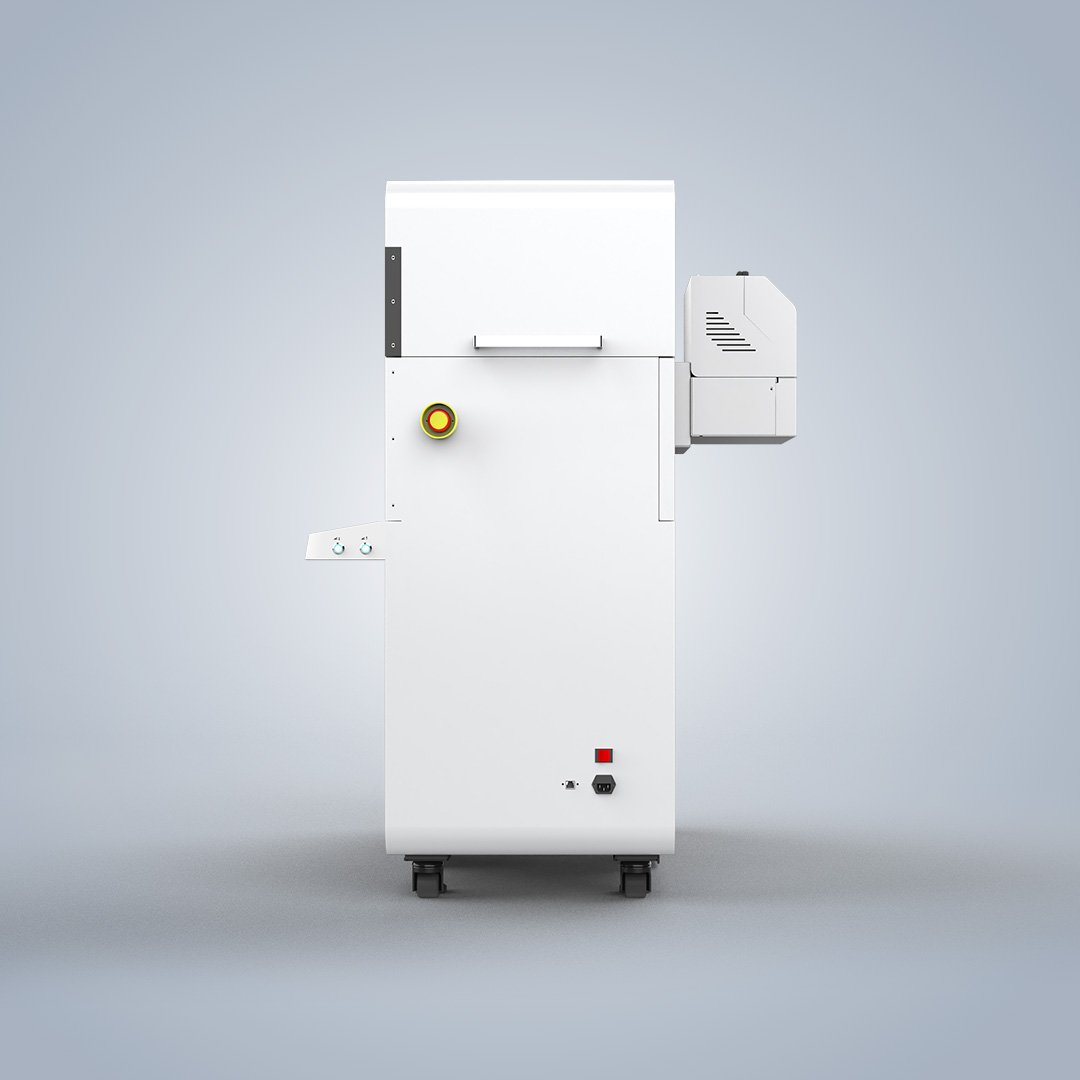

High-speed UV printer for thermos cups NC-Cylinder Elf-IV-C
Machine Model:NC-CylinderElf-IV-C
Printhead Configuration:RICOH GEN5I*3
Printing Length:80-280mm
Printing Diameter Range:Φ45-160mm
Printing Taper Range:＜5°
Printing Method:White, colored, and glossy varnishes are applied together
Printing Mode:CMYK+W+V
Resolution:720*900dpi / 720*1200dpi / 960*900dpi / 960*1200dpi
Flatbed Printing Speed:30-180 seconds/piece
Printing Software:RIIN
Rated Power:1500W
Power Supply Voltage:AC220V，50HZ/60HZ
Work Environment(T/H):25°C-28°C / 35%-65%
Machine Size(L/W/H):1320mm*915mm*1340mm
Net Weight:240KG
Packaging Type:wooden box
Ink Type:Environmentally friendly UV curing ink
Printer Type:Digital inkjet printer
Key Features
- 3 RICOH GEN5I printheads deliver high-precision and vibrant color output.
- Supports 360° seamless rotary printing with Color, White, and Varnish output.
- 2–13 mm high-drop printing enables accurate printing on irregular surfaces.
- Printing speed up to 30 seconds per piece supports efficient batch production.
- Adjustable tilt printing adapts to complex cylindrical product shapes.
Product Highlights
High Precision & Vibrant Colors

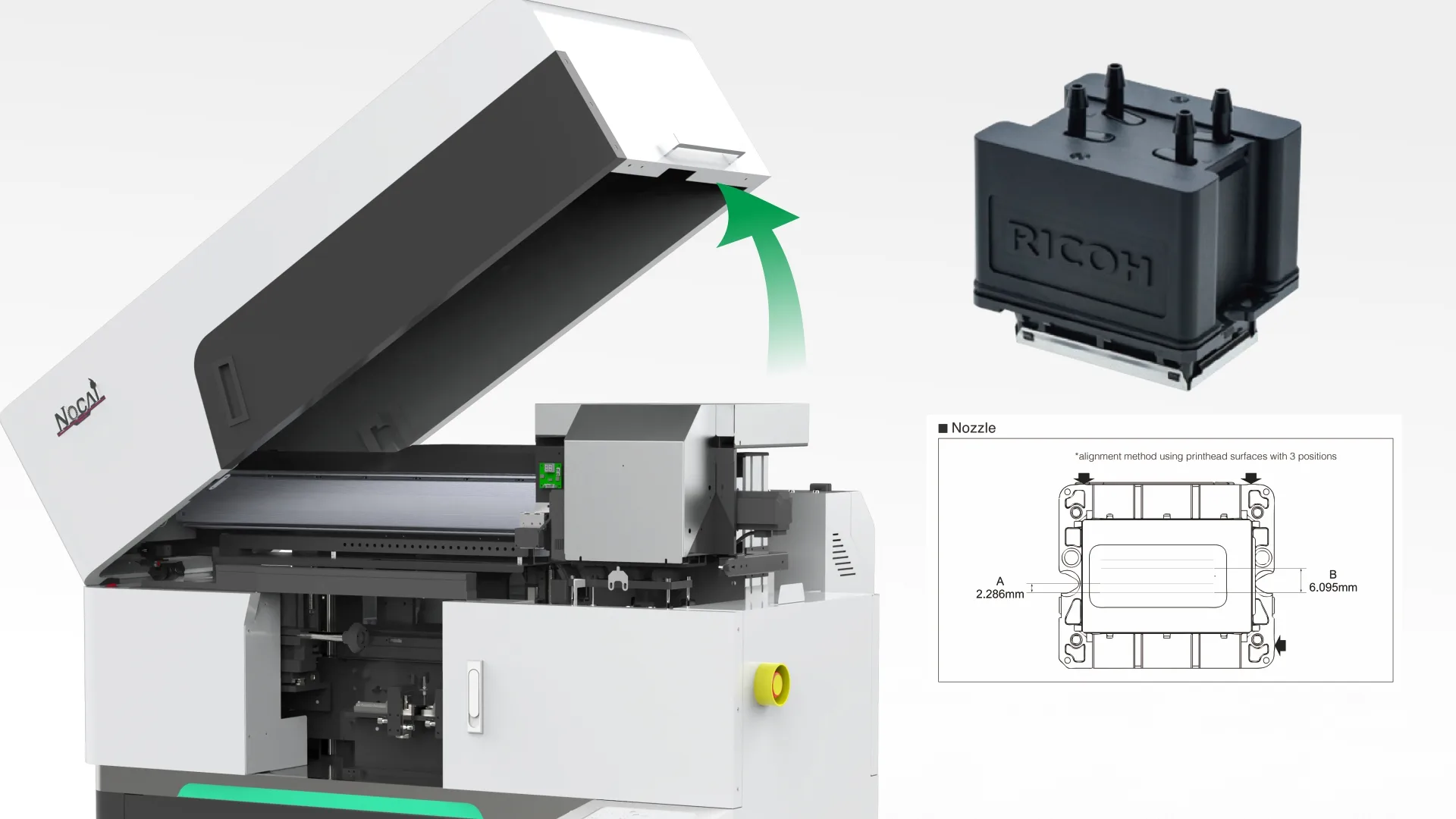

Equipped with 3 RICOH GEN5I printheads and CMYK + White + Varnish configuration for vivid colors and stable high-quality output.
High-Drop Printing for Irregular Products

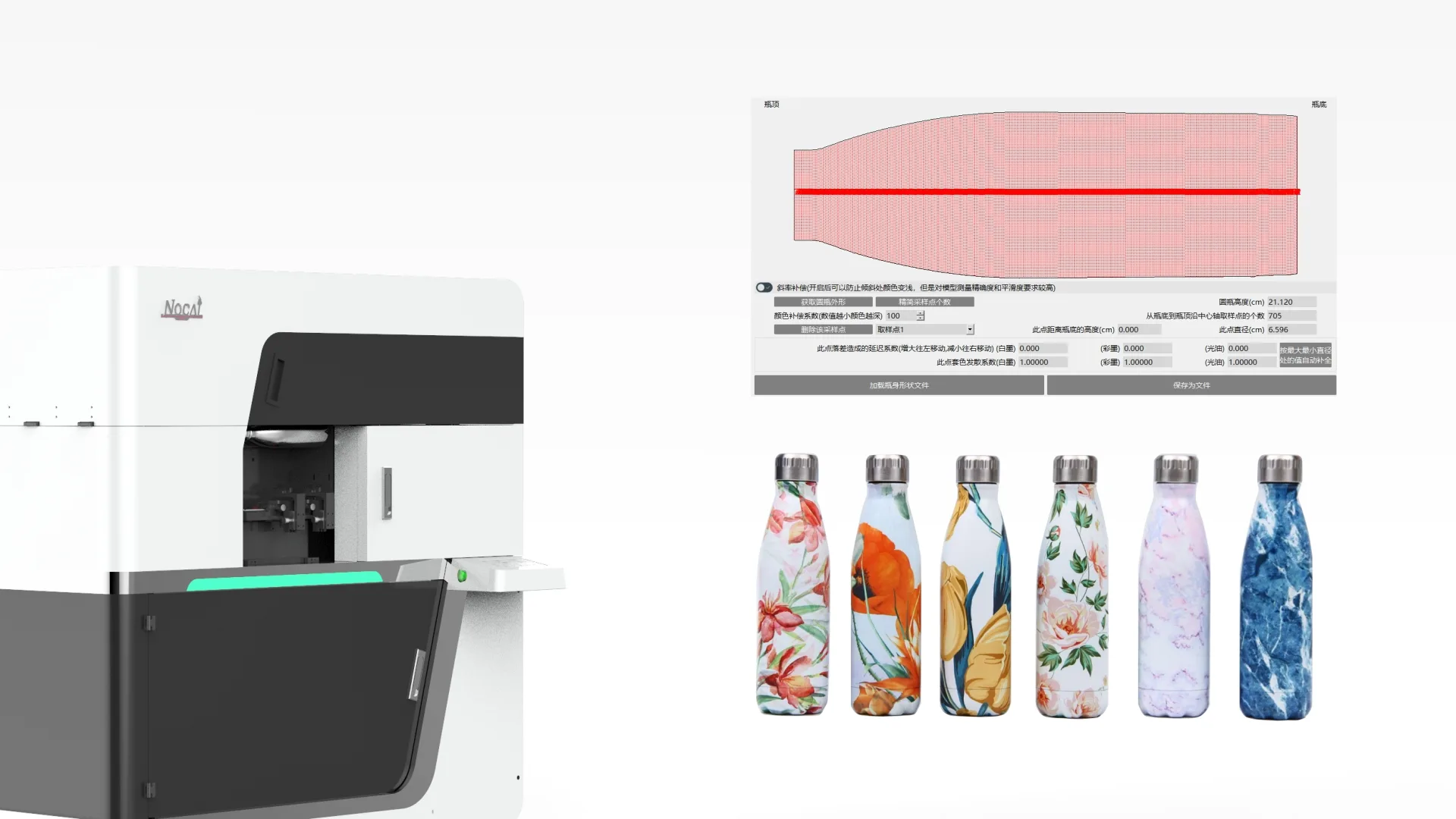

Supports 2–13 mm high-drop printing with automatic laser measurement for accurate positioning on curved and irregular surfaces.

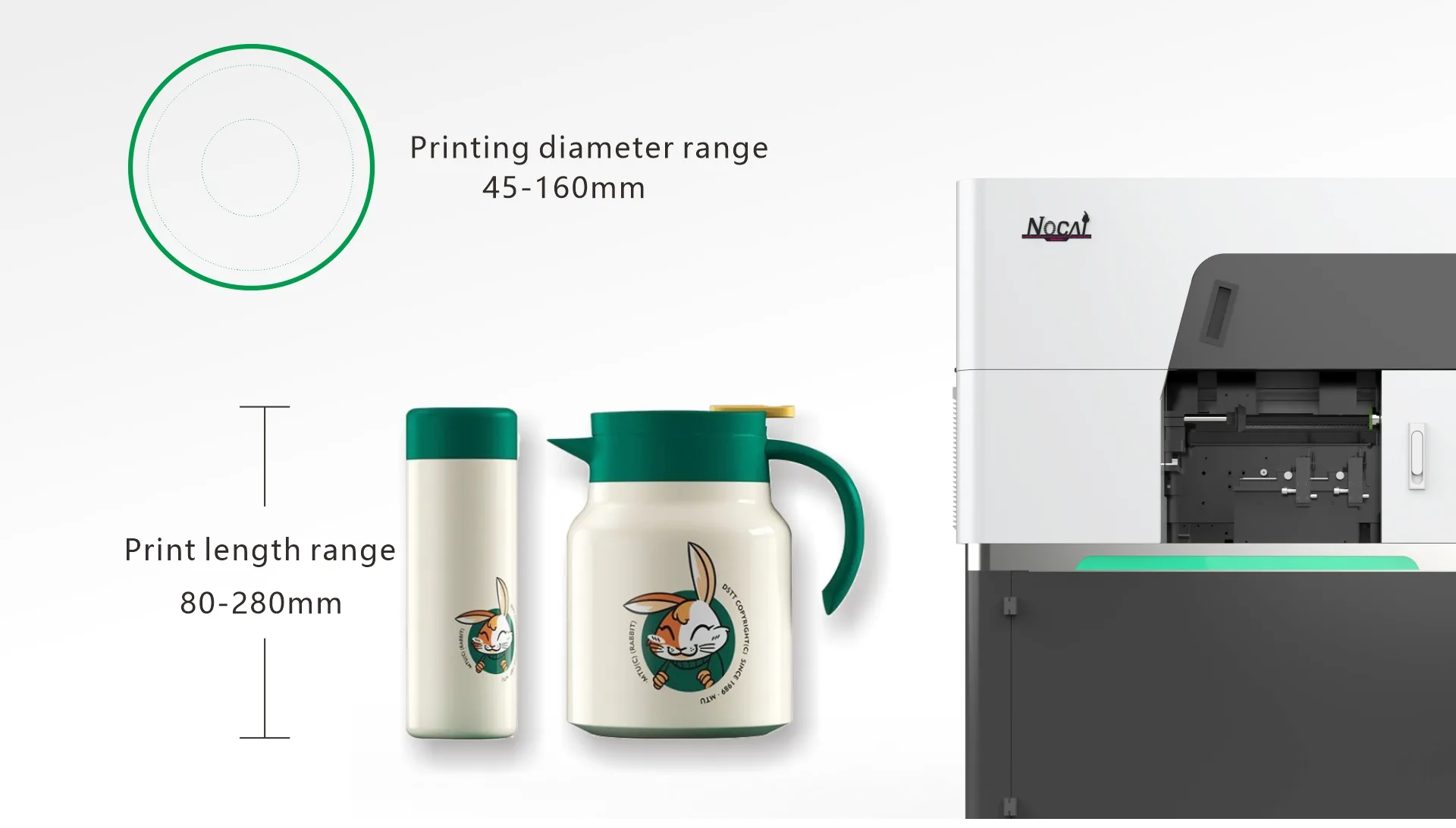

Large Printing Range & Flexible Applications
Supports printing lengths from 80–280 mm and diameters from 45–160 mm for tumblers, bottles, and cylindrical electronic products.

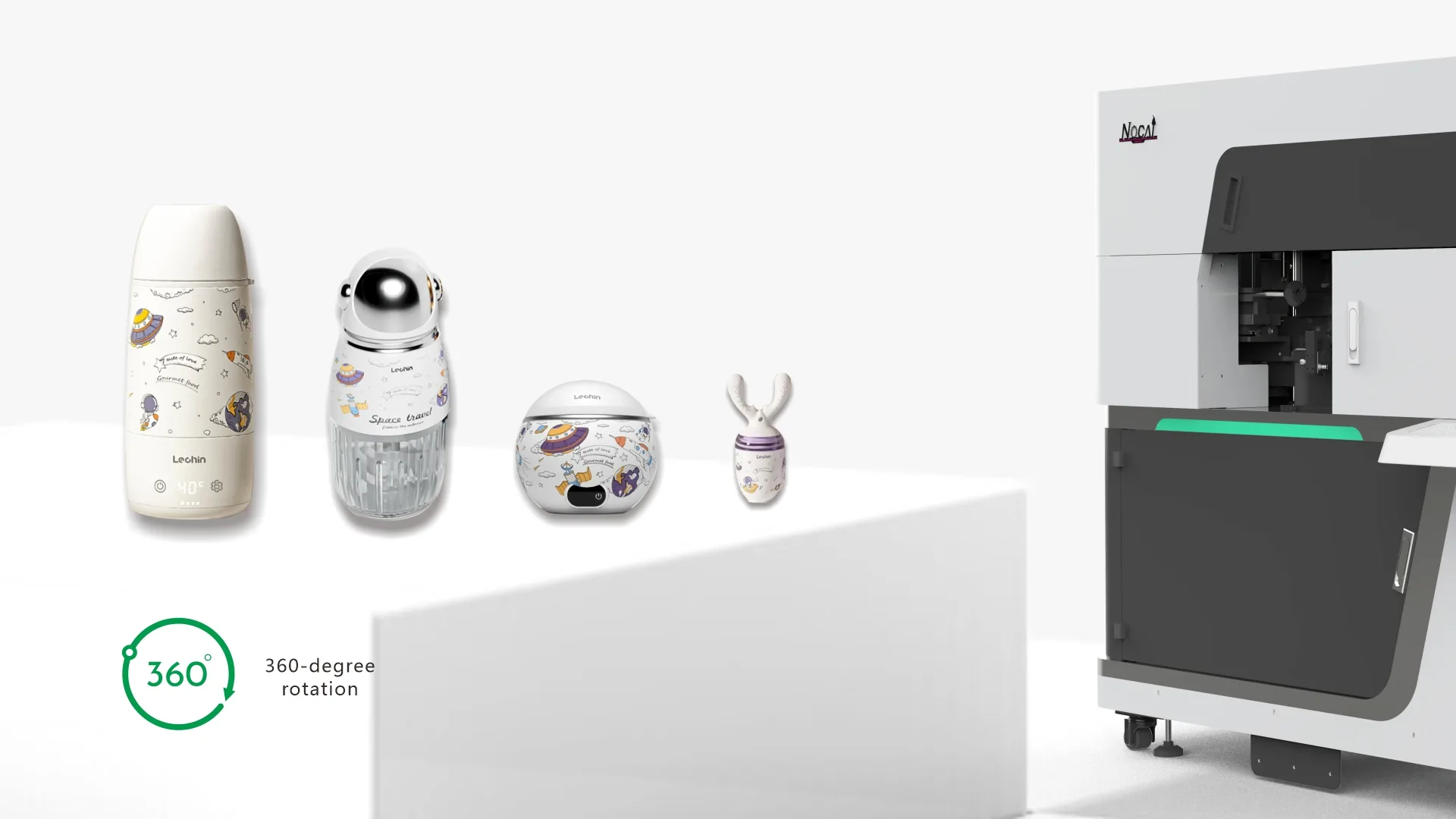

High-Speed 360° Rotary Printing
The spiral printing system enables seamless 360° printing with production speeds up to 30 seconds per piece.
Ink Solutions

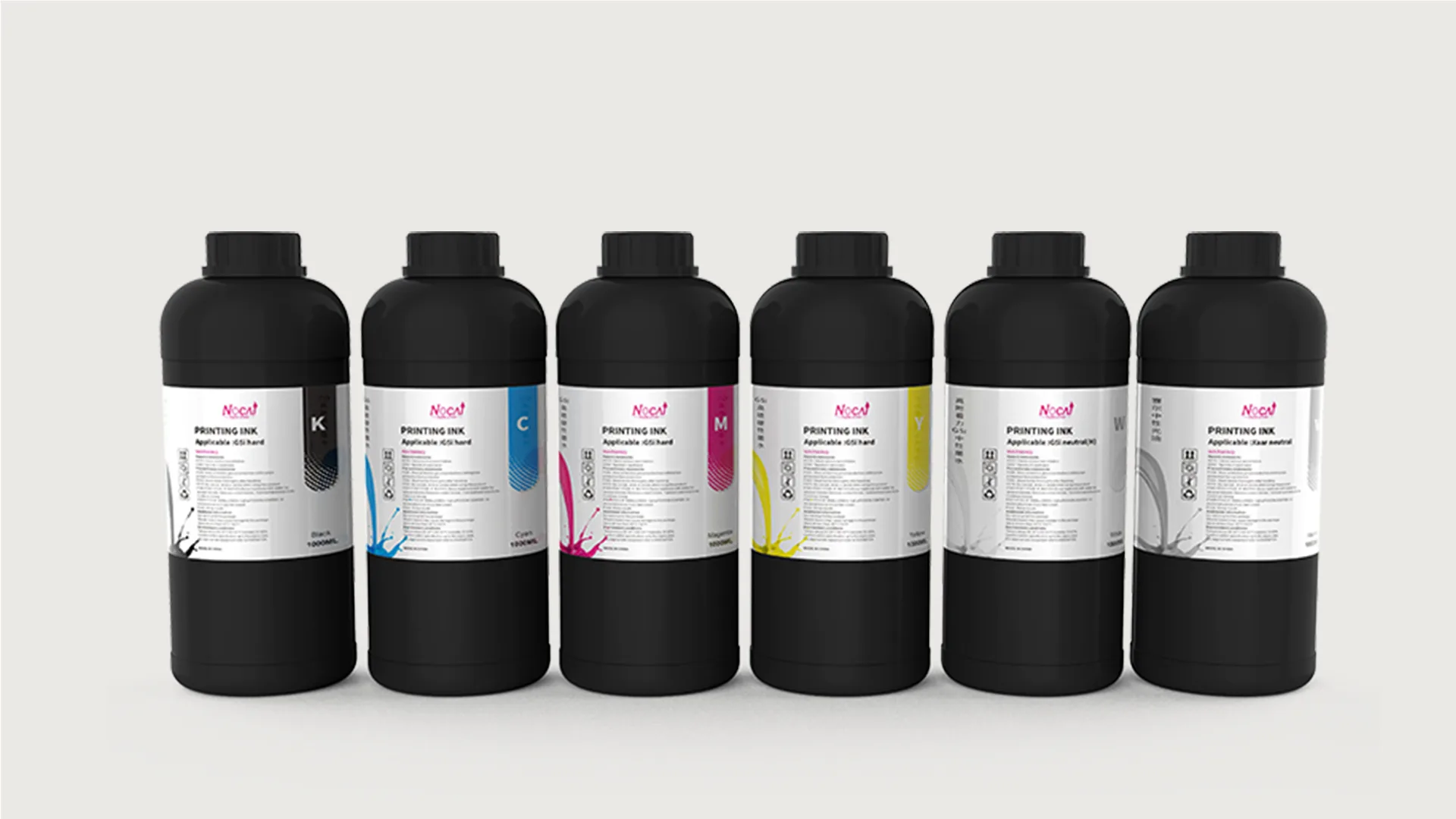

Hard UV Ink
Product Features
Fast-curing UV ink with high-precision output, strong adhesion, and reliable long-term printing performance for cylindrical products.
Specifications
Type: Hard UV Curable Ink
Colors: C / M / Y / K / W / V
Capacity: 1000 ml
Feature: Fast Curing & Industrial-Grade Stability

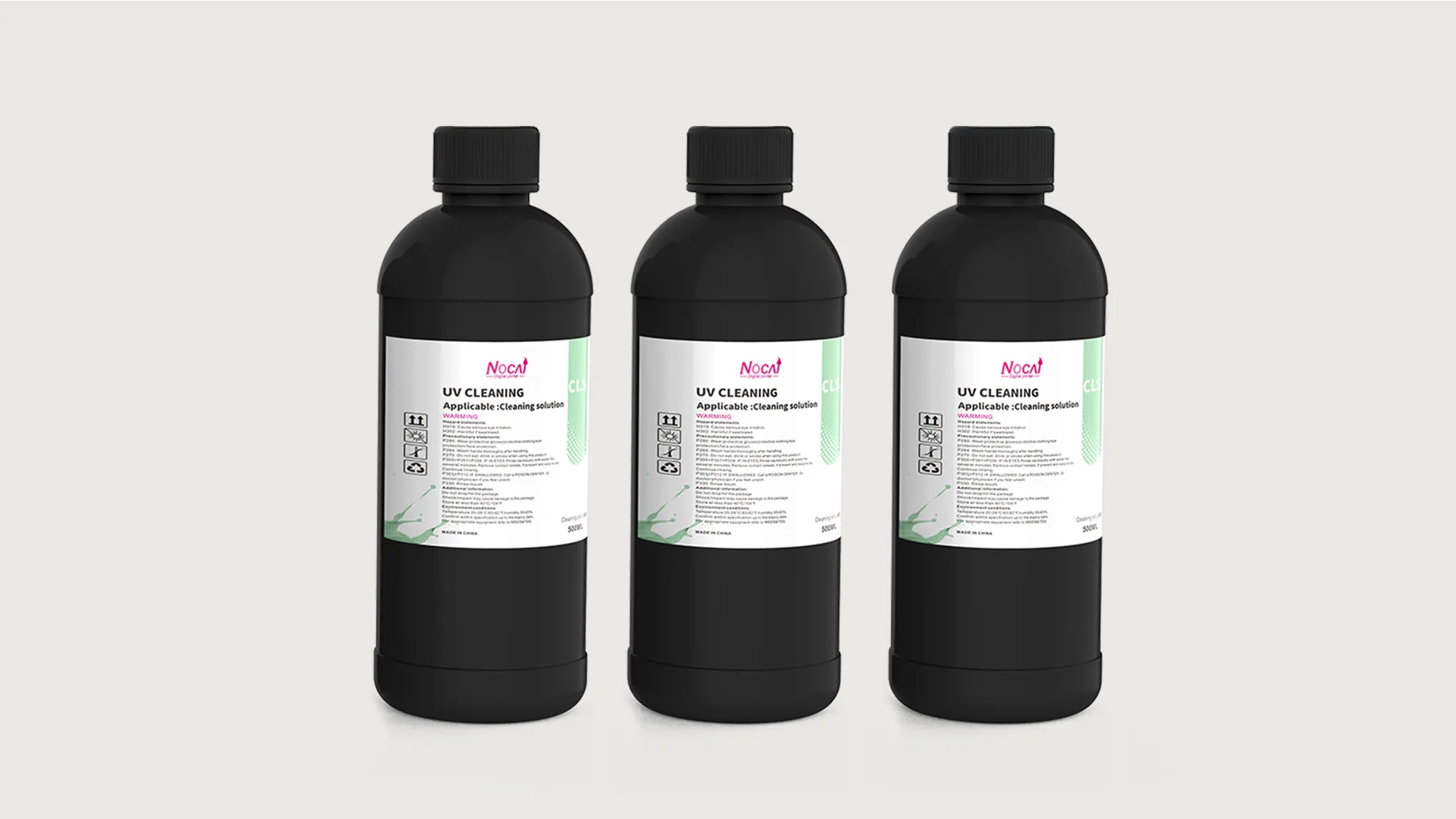

UV Cleaning Solution
Product Features
Efficiently removes UV ink residue while protecting printheads with a low-corrosion, low-odor, and residue-free formula.
Specifications
Type: UV Cleaning Solution
Color: Transparent
Capacity: 500 ml
Compatible Model: All Nocai UV Printers
