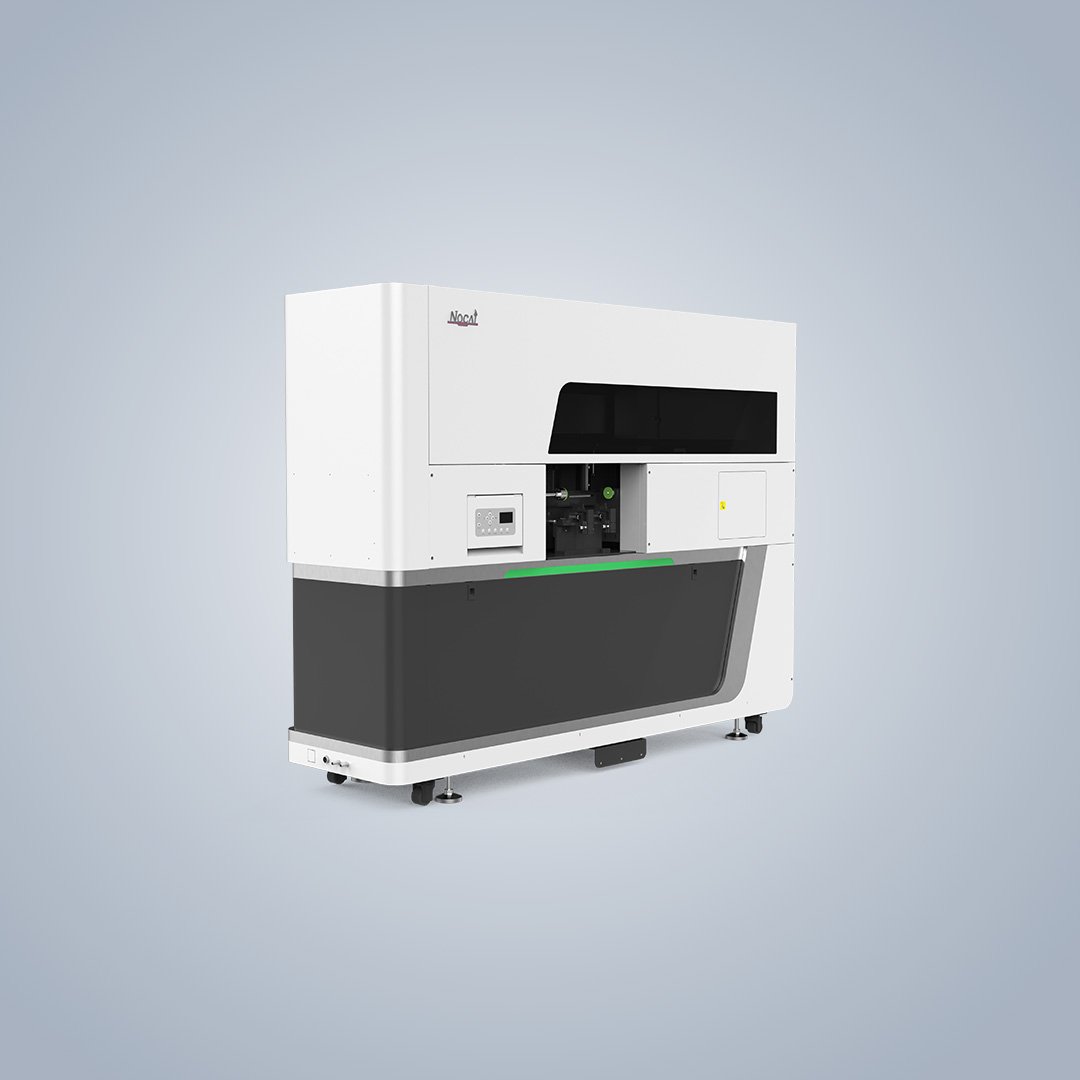

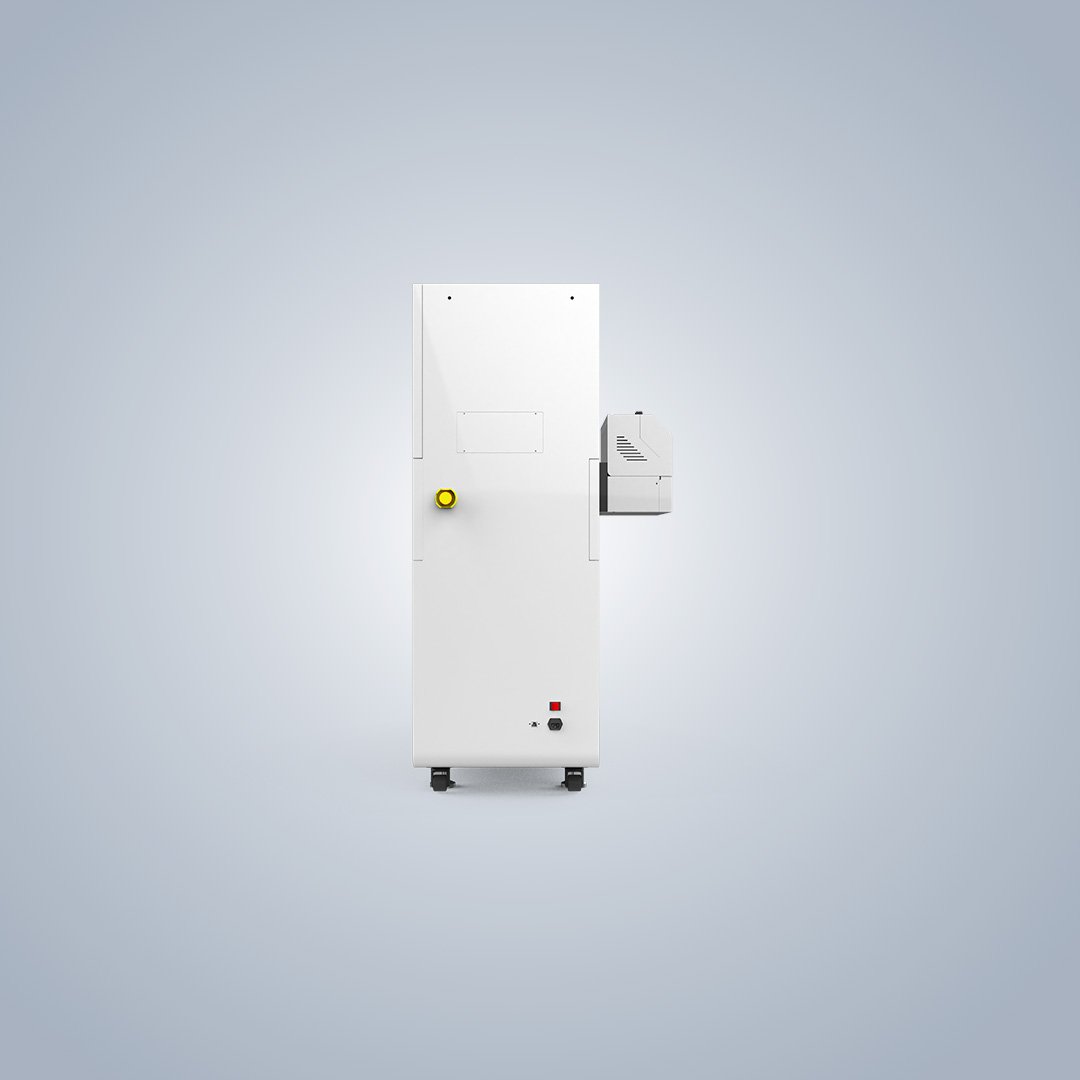

High-speed UV printer for thermos cups NC-Cylinder Elf-IV-D
Machine Model:NC-CylinderElf-IV-D
Printhead Configuration:RICOHGEN6*5 (standard) / RICOHGEN6*6 (optional)
Printing Length:80-280mm
Printing Diameter Range:Φ45-160mm
Printing Taper Range:＜5°
Printing Method:Coating, white, colored, and clear coats are all produced together
Printing Mode:CMYK+LC+LM+LK+LIK+W+V+Pr
Resolution:720*900dpi / 720*1200dpi / 960*900dpi / 960*1200dpi
Flatbed Printing Speed:30-180 seconds/piece
Printing Software:RIIN
Rated Power:1500W
Power Supply Voltage:AC220V，50HZ/60HZ
Work Environment(T/H):25°C-28°C / 35%-65%
Machine Size(L/W/H):1994mm*913mm*1535mm
Net Weight:400KG
Packaging Type:wooden box
Ink Type:Environmentally friendly UV curing ink
Printer Type:Digital inkjet printer
Key Features
- 6 printheads deliver vivid colors and high-precision printing performance.
- Supports 360° seamless rotary printing for cylindrical and irregular products.
- 2–20 mm high-drop printing adapts to complex curved surfaces.
- Printing speed up to 30 seconds per piece supports efficient batch production.
- Intelligent ink supply and temperature control ensure stable output.
Product Highlights

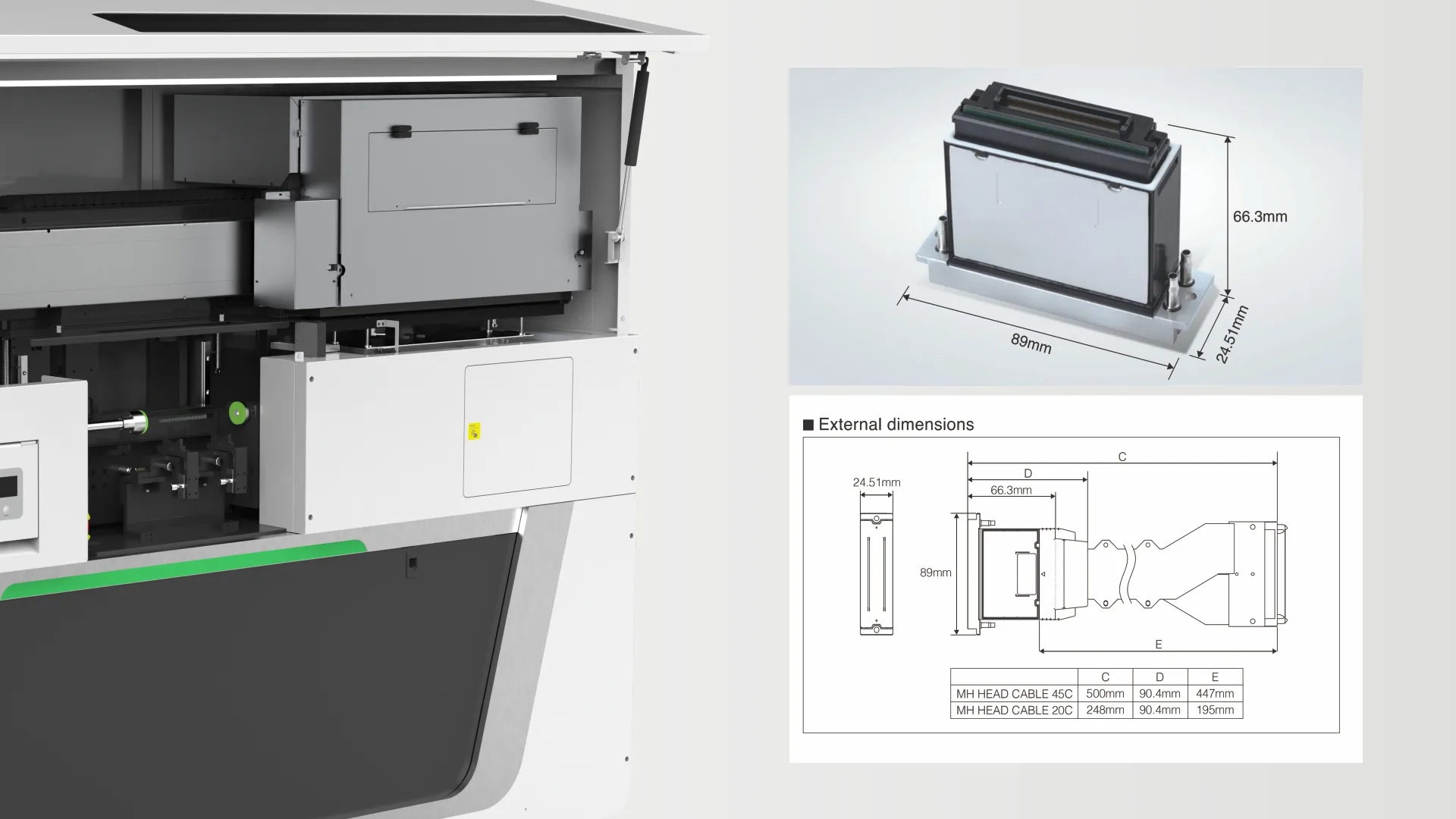

High Precision & Rich Color Output
Equipped with 6 printheads and 6-Color + White + Varnish + Primer configuration for vivid colors, smooth gradients, and stable high-quality printing.

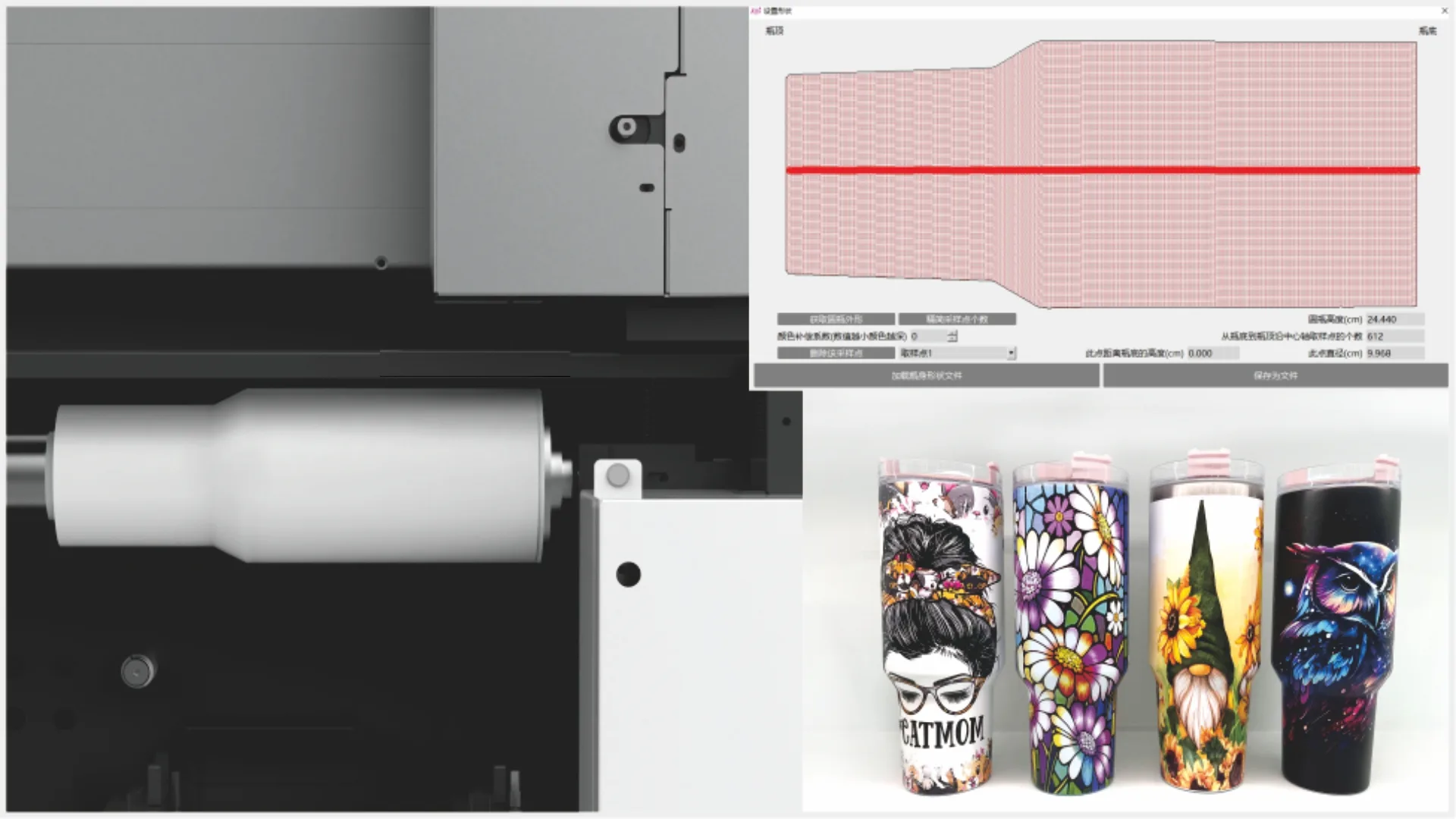

High-Drop Printing for Irregular Products
Supports 2–20 mm high-drop printing with automatic product measurement for accurate positioning on complex curved surfaces.

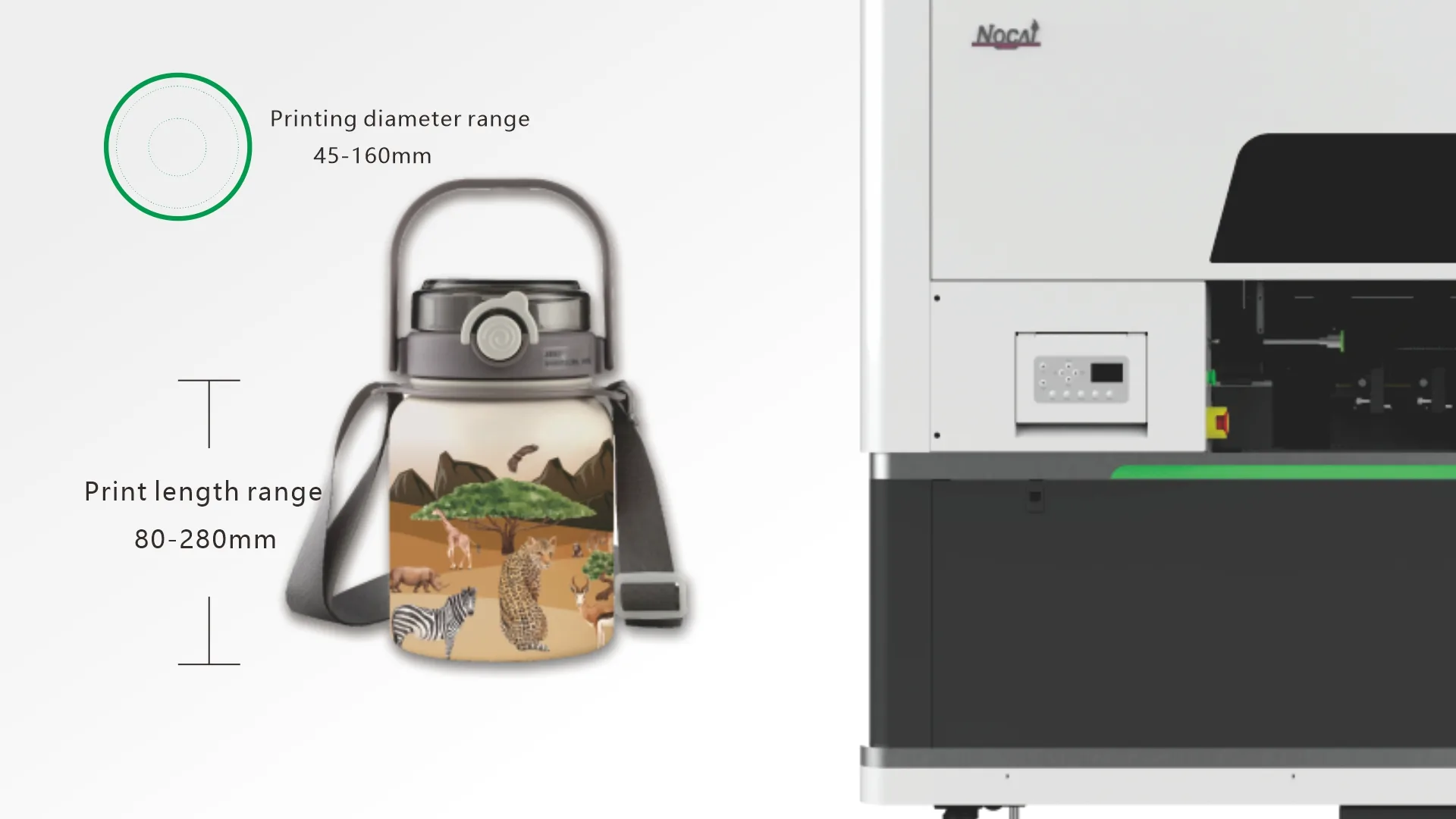

Large Printing Range & Flexible Applications
Supports printing lengths from 80–280 mm and diameters from 45–160 mm for tumblers, bottles, ceramics, and cylindrical electronic products.

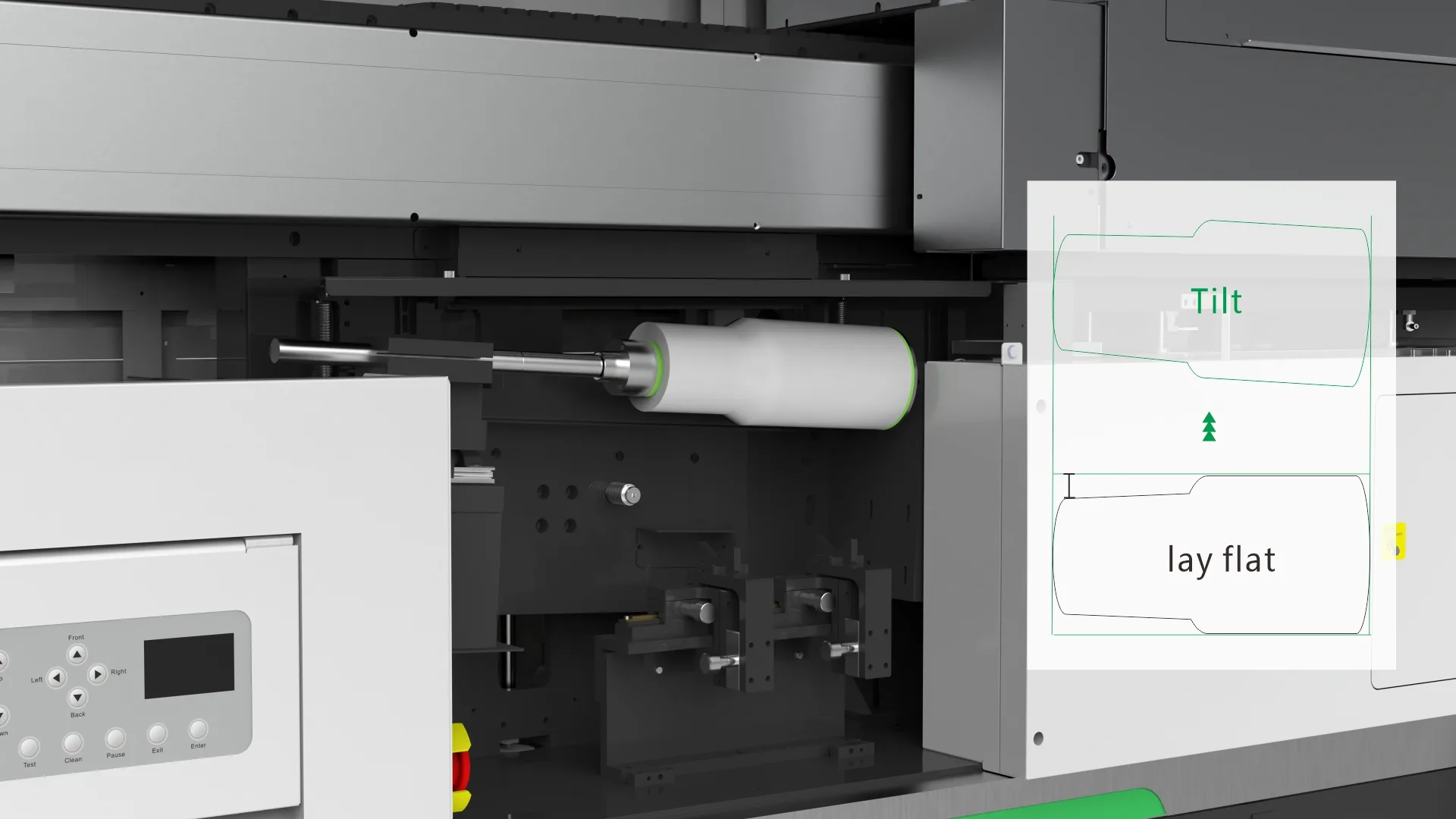

High-Speed 360° Rotary Printing
Supports seamless 360° rotary printing with production speeds up to 30 seconds per piece for efficient batch customization.
Ink Solutions

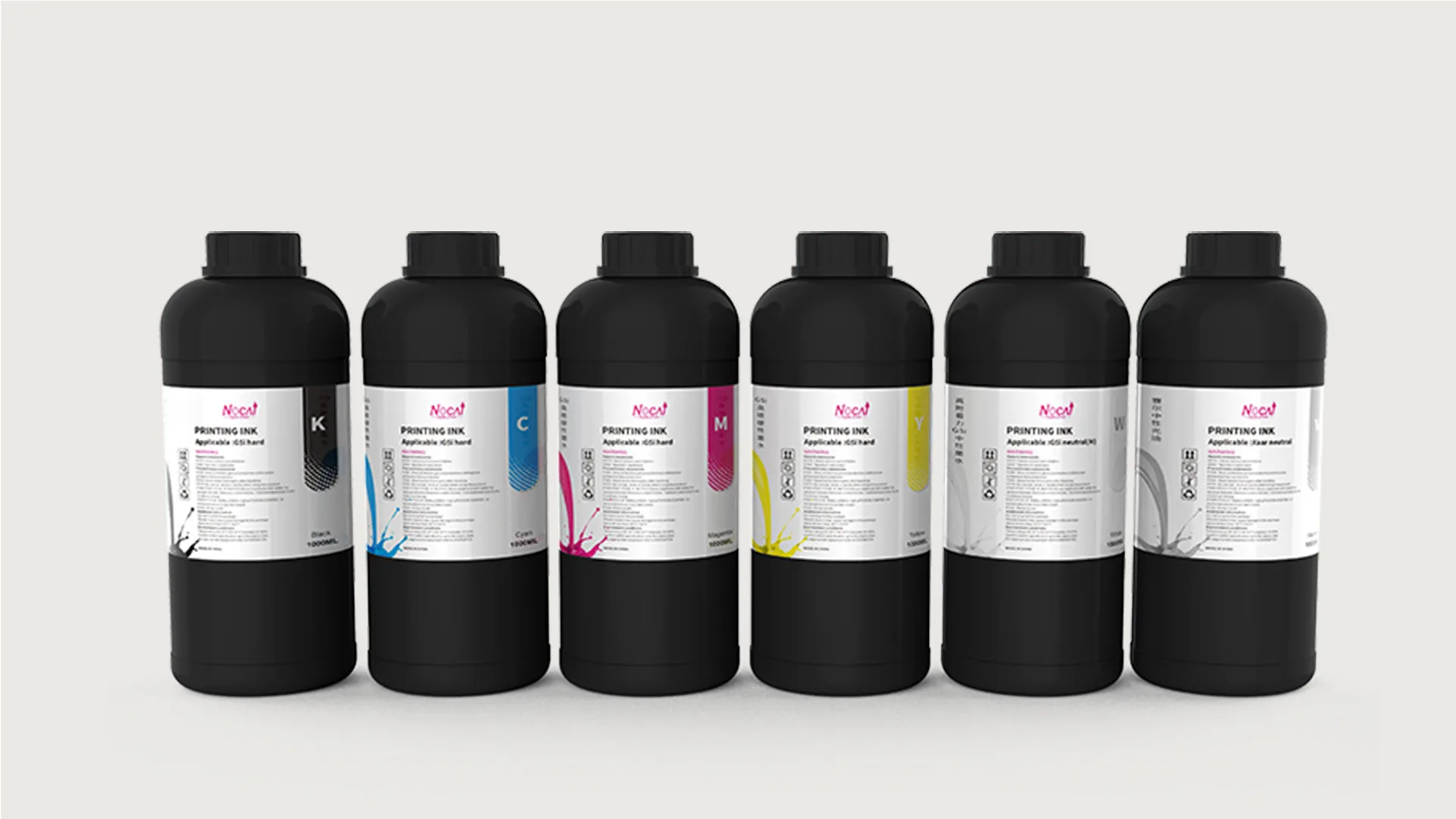

Hard UV Ink
Product Features
Fast-curing UV ink with high-precision output, strong adhesion, and reliable long-term printing performance for cylindrical products.
Specifications
Type: Hard UV Curable Ink
Colors: C / M / Y / K / W / V
Capacity: 1000 ml
Feature: Fast Curing & Industrial-Grade Stability

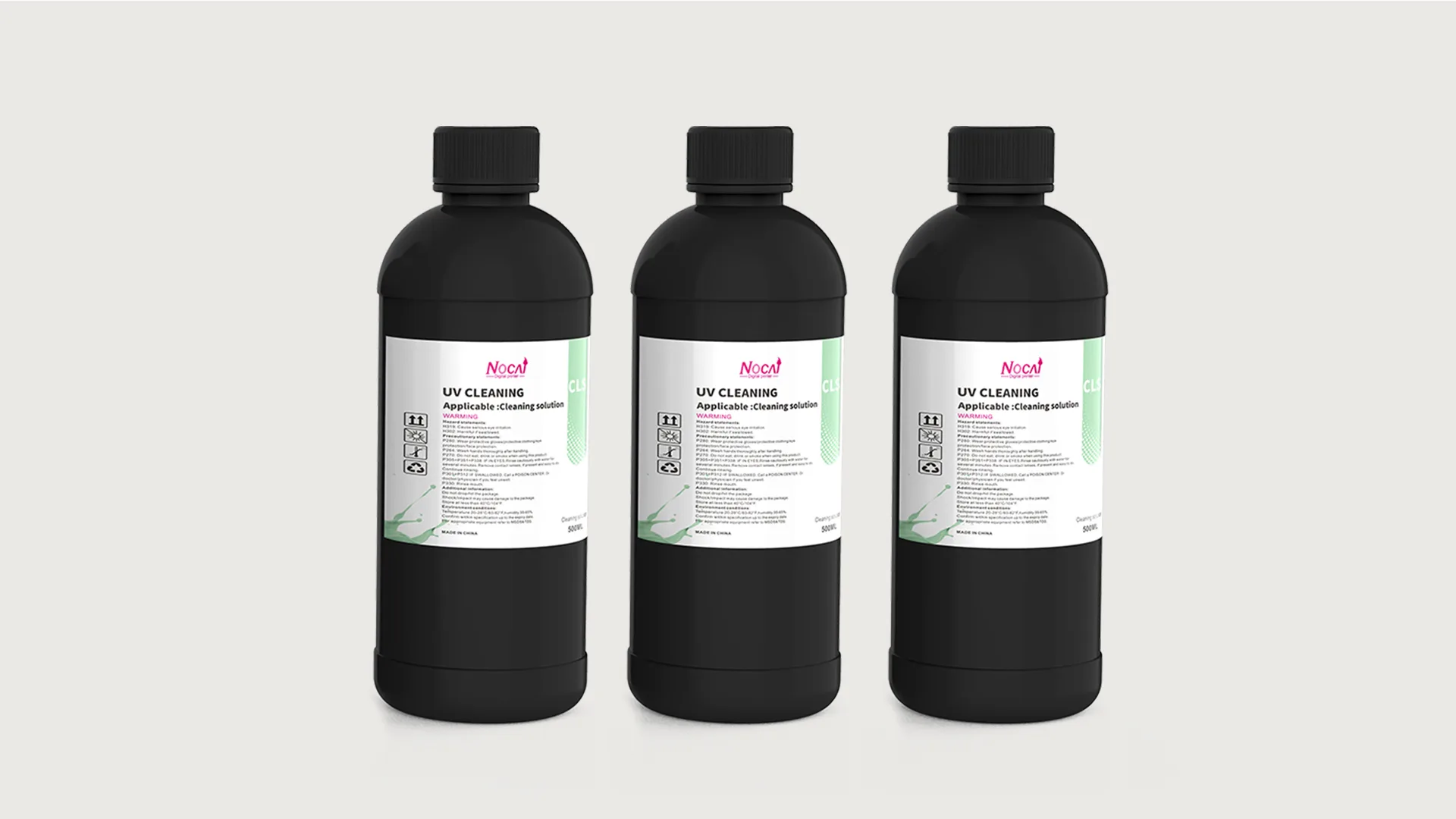

UV Cleaning Solution
Product Features
Efficiently removes UV ink residue while protecting printheads with a low-corrosion, low-odor, and residue-free formula.
Specifications
Type: UV Cleaning Solution
Color: Transparent
Capacity: 500 ml
Compatible Model: All Nocai UV Printers
