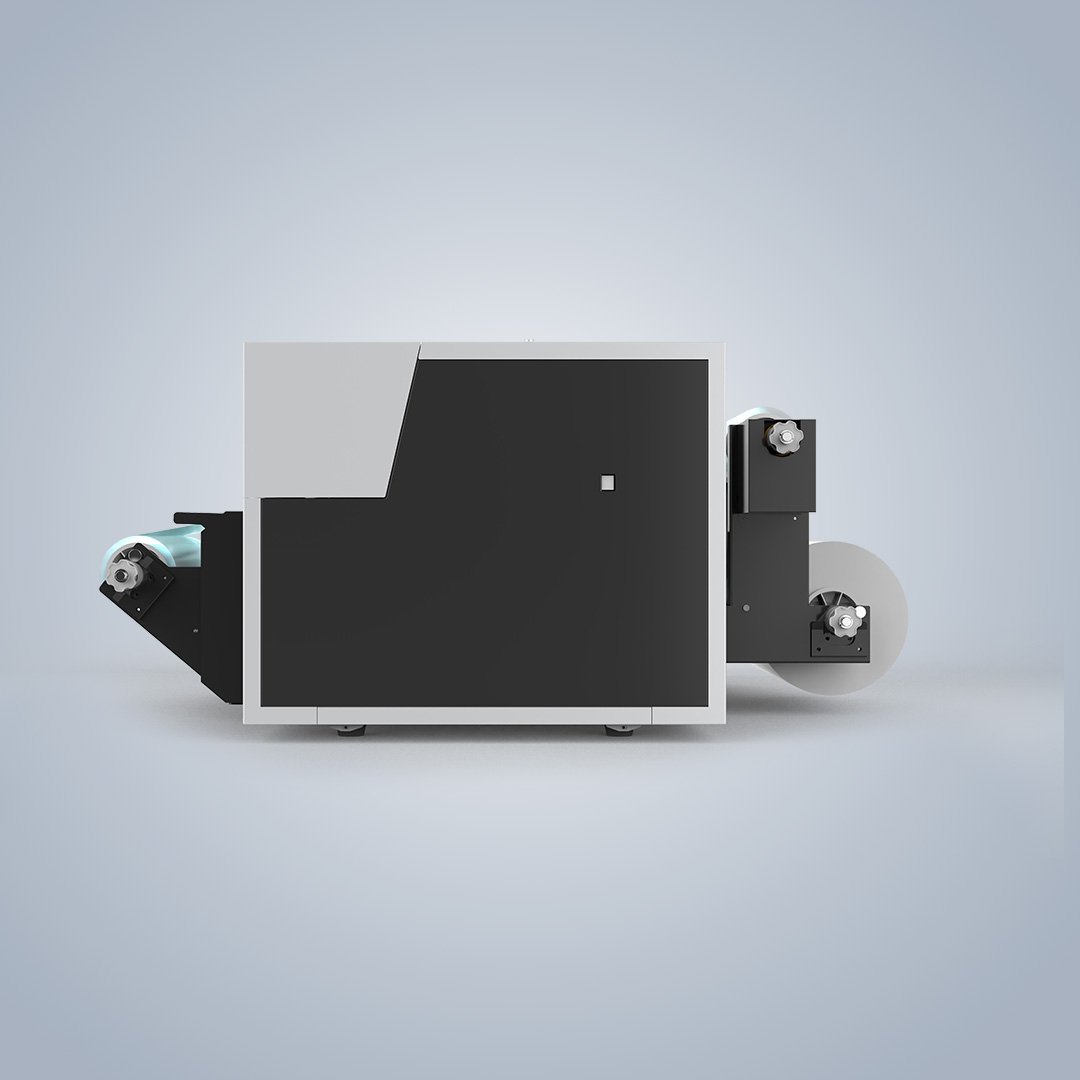

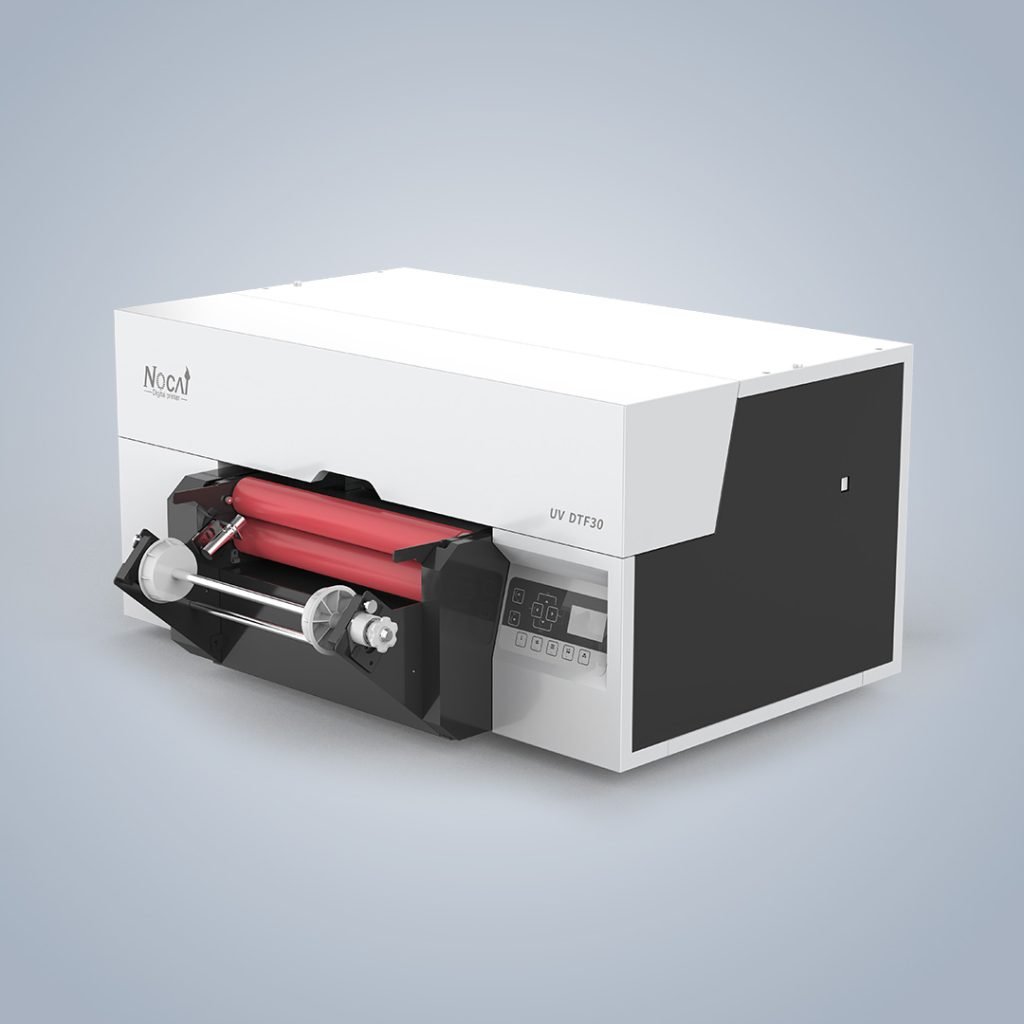

Desktop UV DTF laminating all-in-one machine NC-UVDTF30
Machine Model:NC-UVDTF30
Printhead Configuration:EPSON 13200-U1HD*1
Printing Width:30mm
Printing Thickness:0-1mm
Printing Method:White, colored, and glossy varnishes are applied together
Printing Mode:KCMY+W+V
Resolution:960*900dpi / 960*1200dpi
Flatbed Printing Speed:1.34 meters/hour-4.96 meters/hour
Printing Software:Future RIP
Rated Power:404W
Power Supply Voltage:AC220V，50HZ/60HZ
Work Environment(T/H):25°C-28°C / 35%-65%
Machine Size(L/W/H):919mm*980mm*450mm
Net Weight:75KG
Packaging Size(L/W/H):1070mm*1095mm*620mm
Gross Weight:100KG
Packaging Type:cardboard box
Ink Type:UV curing ink for crystal labels
Printer Type:Digital inkjet printer
Key Features
- Integrated printing and laminating system simplifies the production workflow.
- High-resolution printing up to 1200 dpi with vivid color performance.
- Supports White + Color + Varnish simultaneous printing and instant curing.
- 30 cm printing width supports flexible custom label production.
- Compact structure and intelligent operation improve efficiency and usability.
Product Highlights

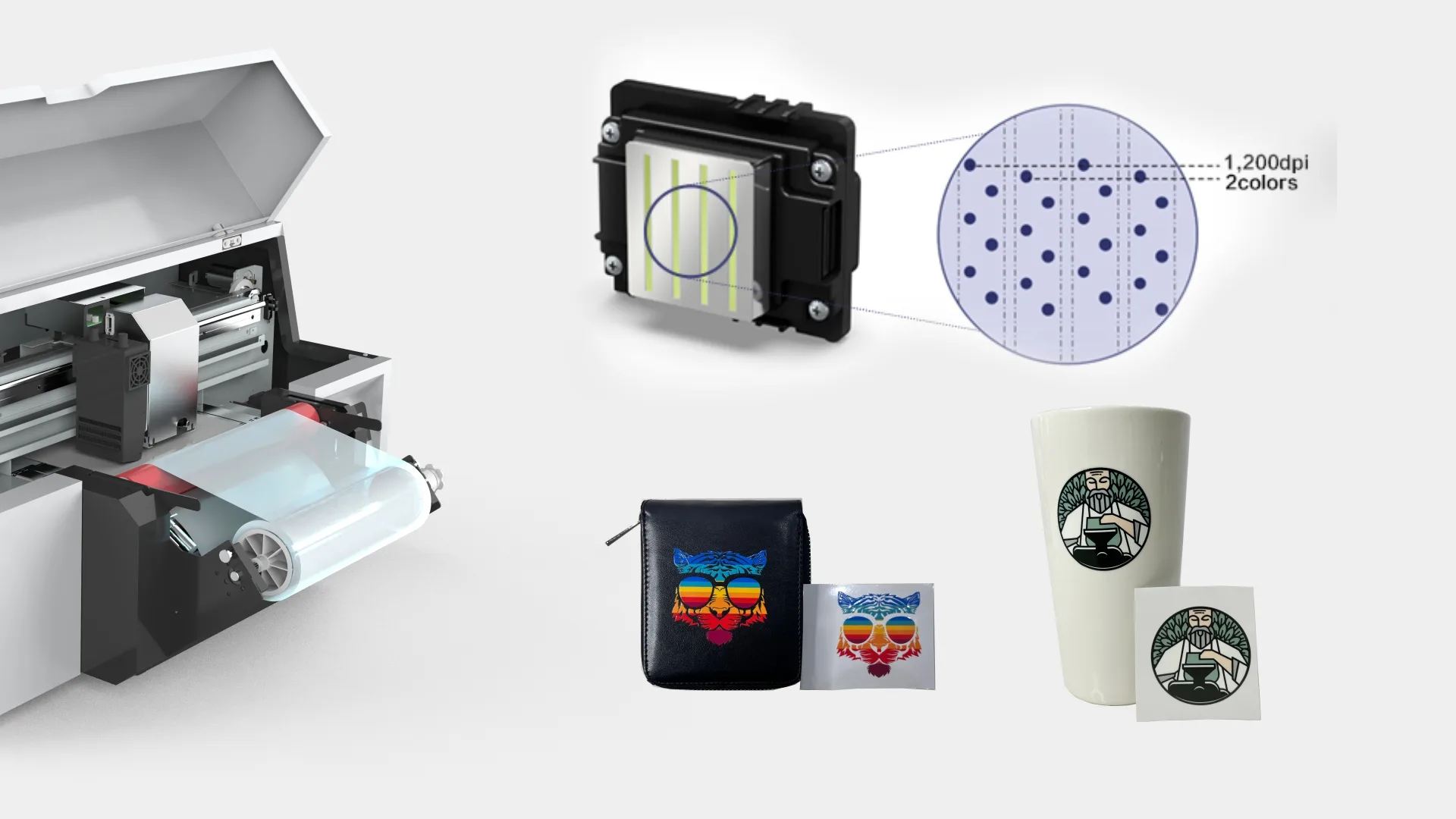

High-Precision Printing & Stable Performance
Equipped with durable imported printheads for up to 1200 dpi resolution, delivering vivid colors and fine image details.

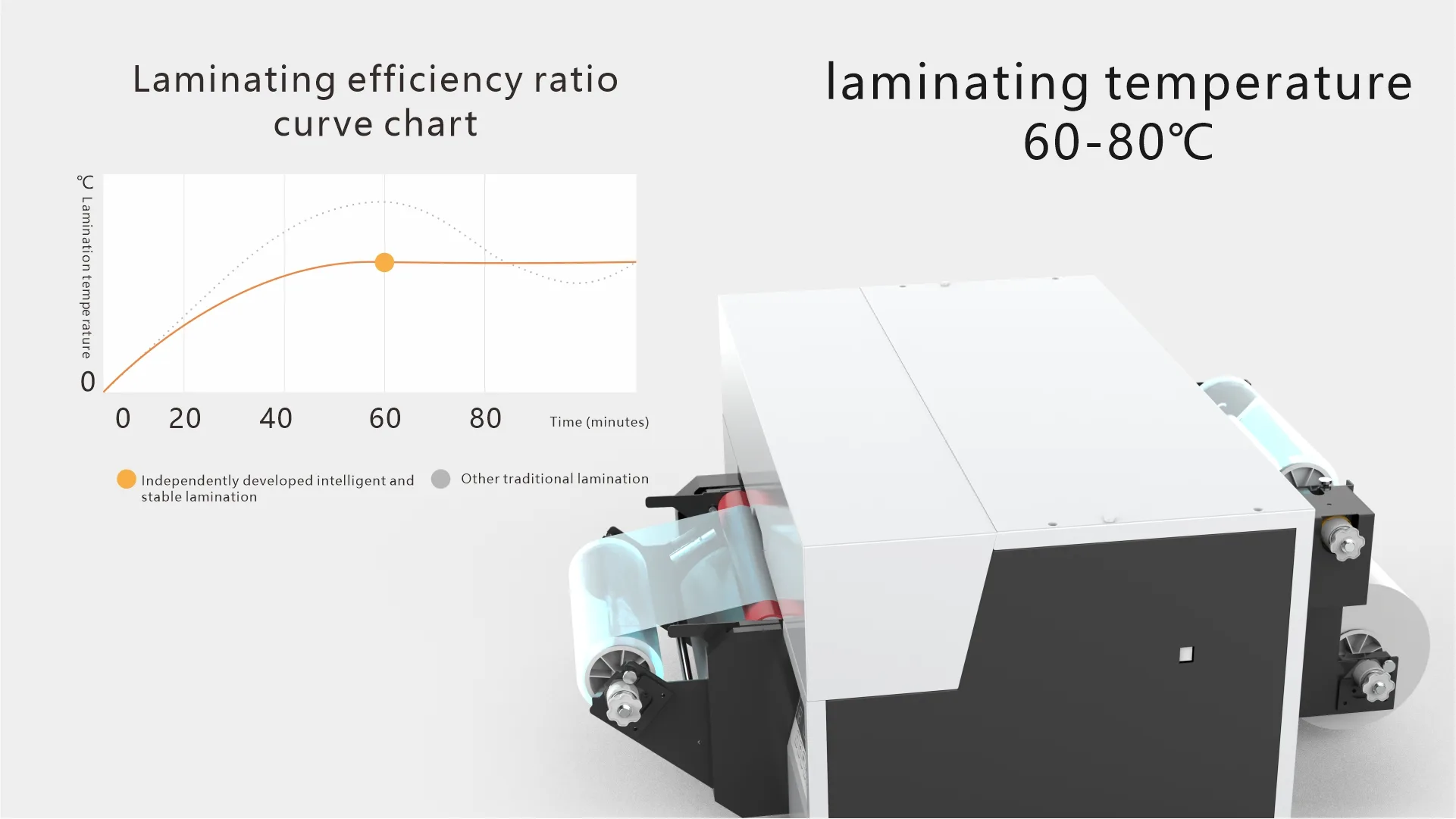

Intelligent Integrated Laminating System
Combines material feeding, film peeling, printing, and laminating into one automated workflow for efficient production.

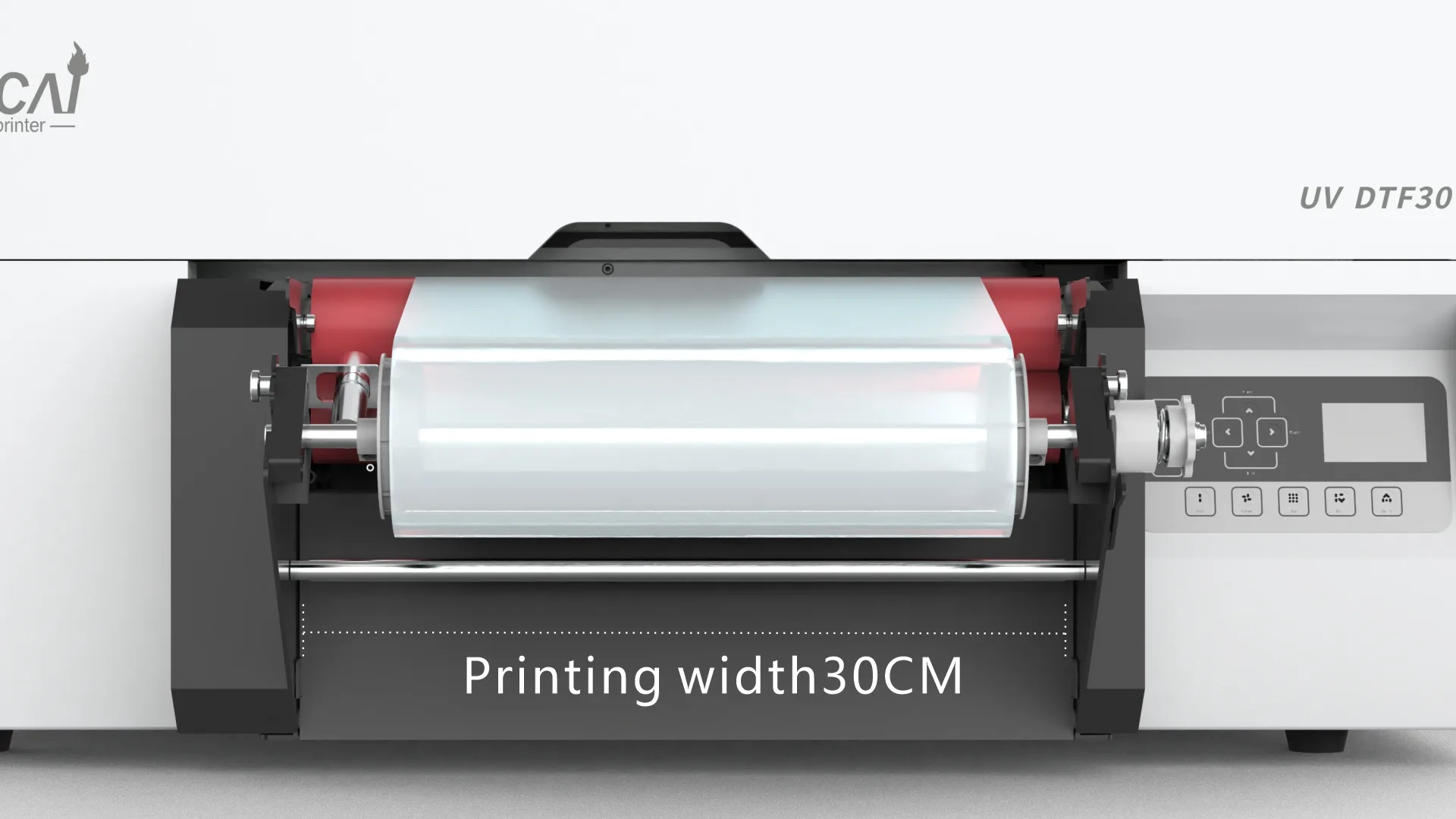

30 cm Printing Width for Flexible Customization
Supports 30 cm printing width with unlimited print length, suitable for various custom UV DTF label applications.

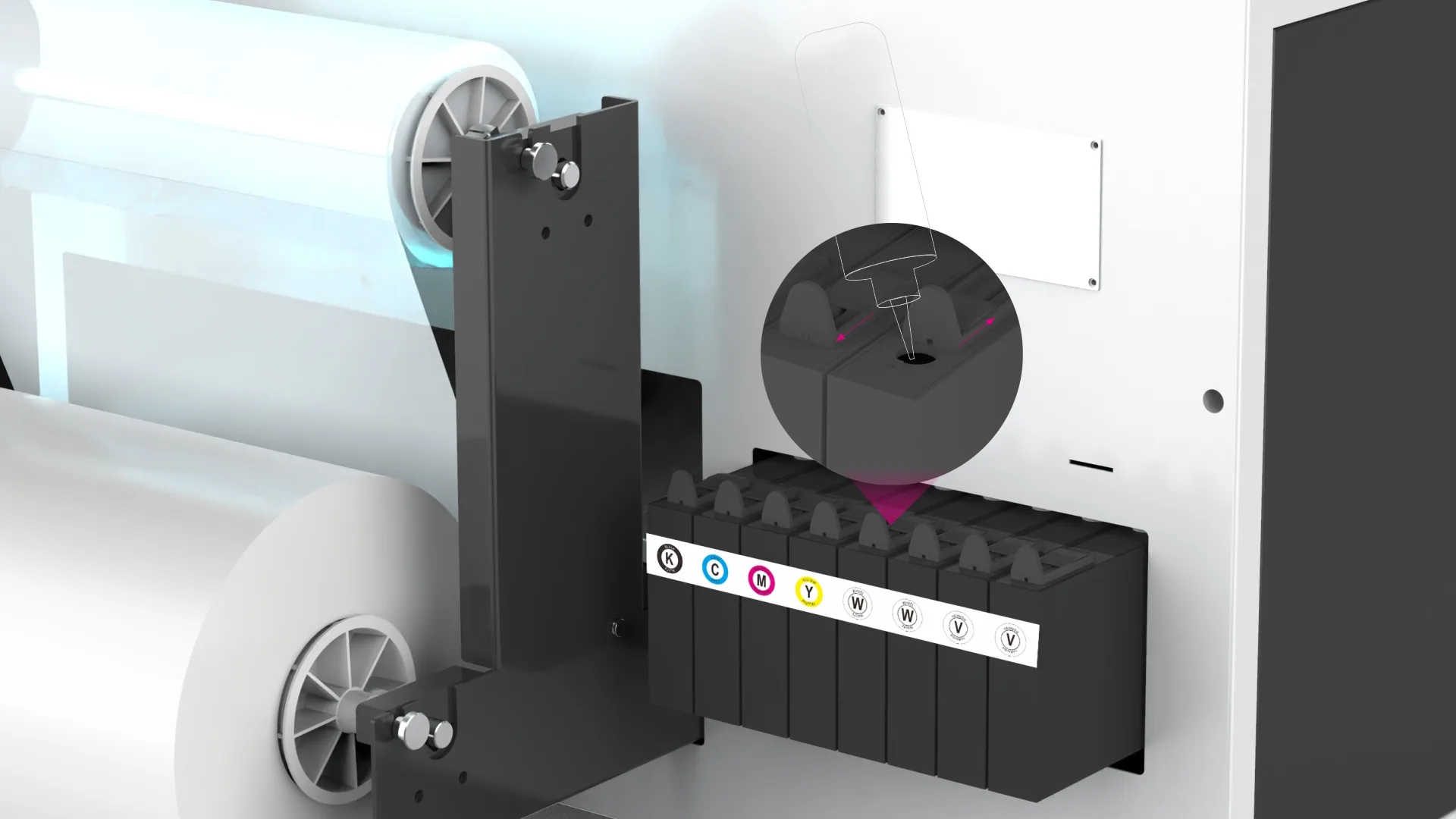

Intelligent Ink Supply & Stable Output
The smart ink system features automatic ink circulation, leak prevention, and low-ink alerts for stable long-term printing.
Ink Solutions

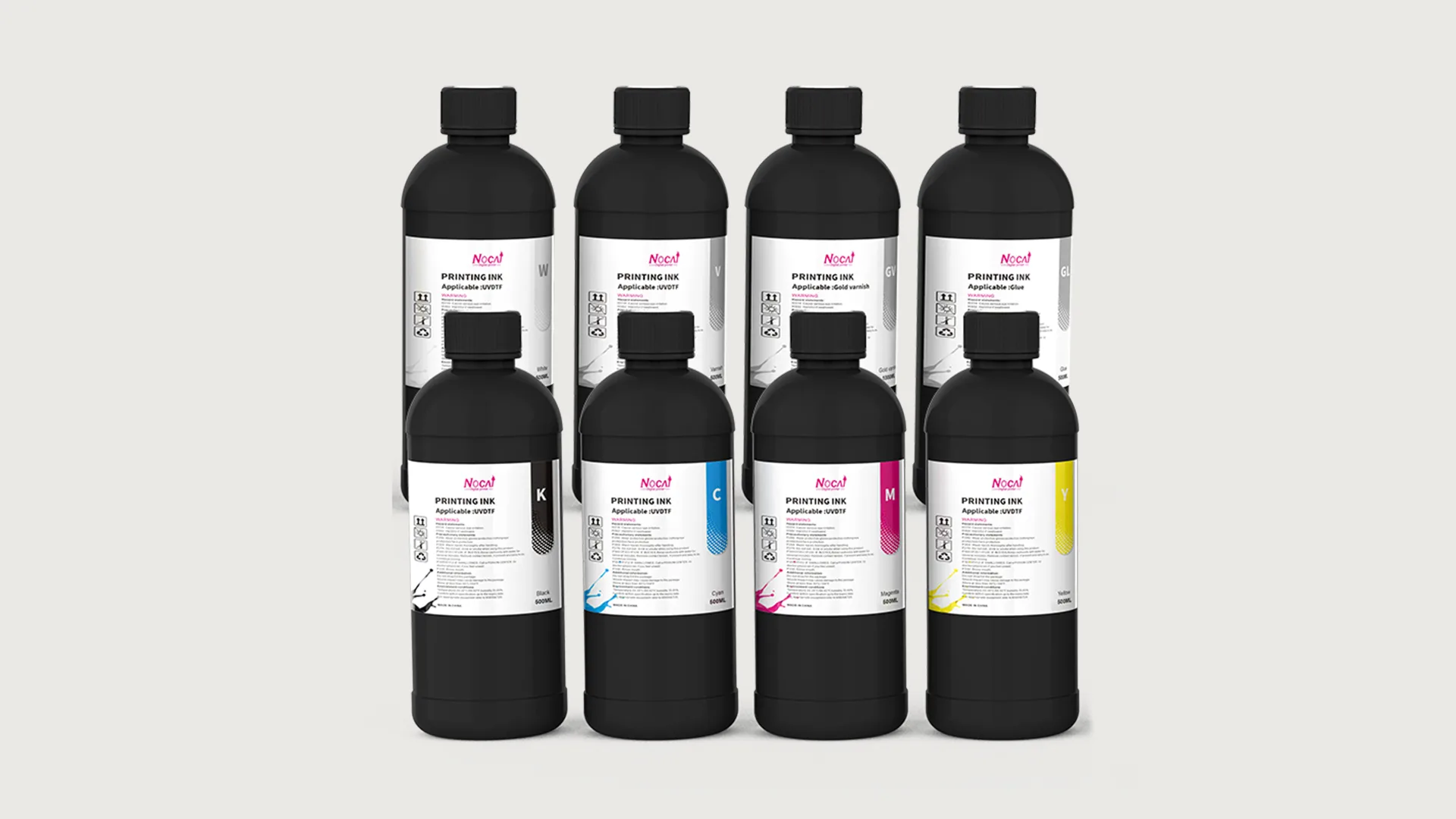

UV DTF Ink
Product Features
High-transparency UV DTF ink with vibrant colors, strong adhesion, glossy crystal effects, and stable transfer performance for customized label applications.
Specifications
Type: Eco-Friendly UV Curable Ink
Colors: C / M / Y / K / W / V / GV / GL
Capacity: 500 ml
Application: UV DTF Crystal Label Printing

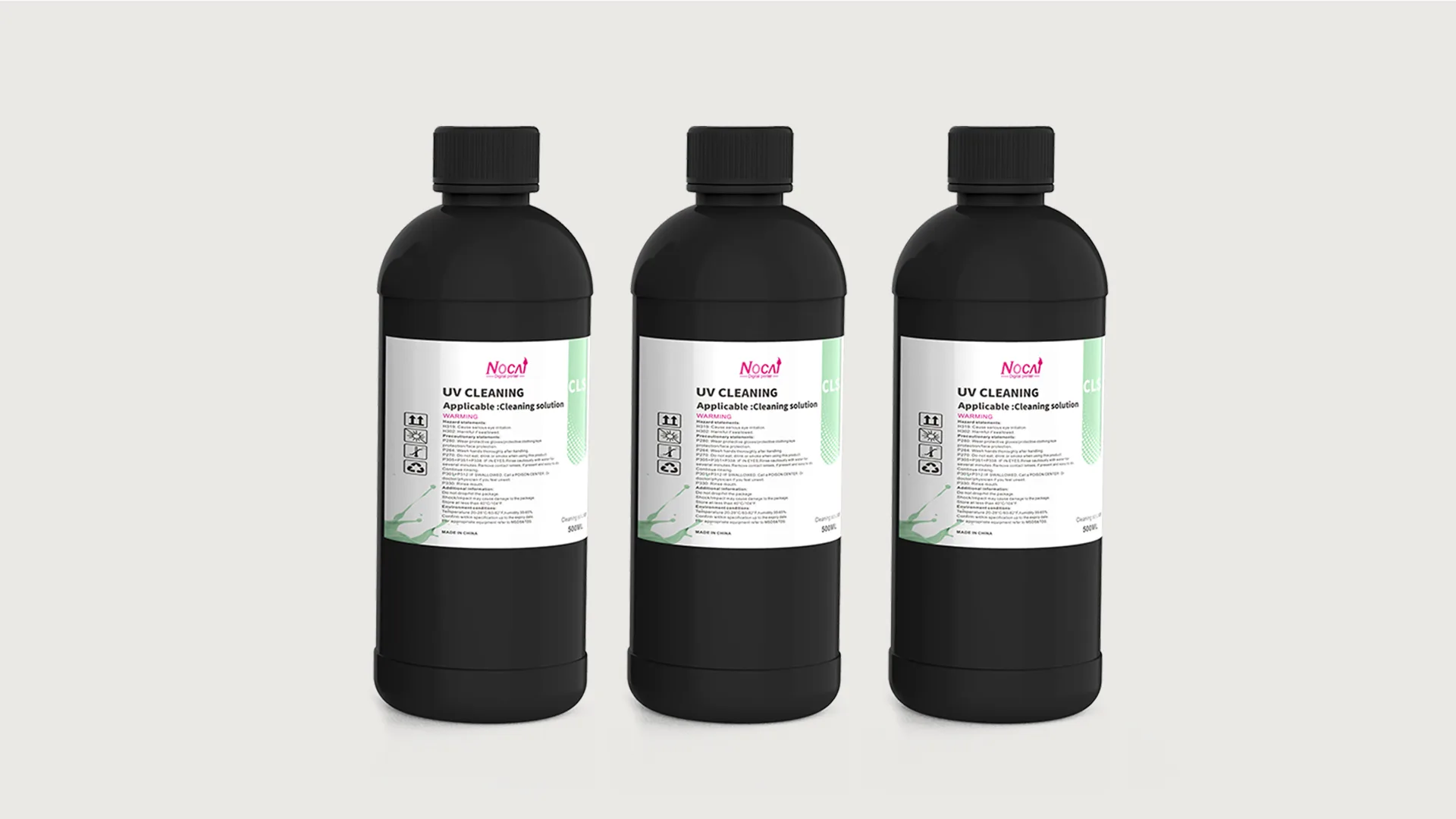

UV Cleaning Solution
Product Features
Efficiently removes UV ink residue while protecting printheads with a low-corrosion, low-odor, and residue-free formula.
Specifications
Type: UV Cleaning Solution
Color: Transparent
Capacity: 500 ml
Compatible Model: All Nocai UV Printers
