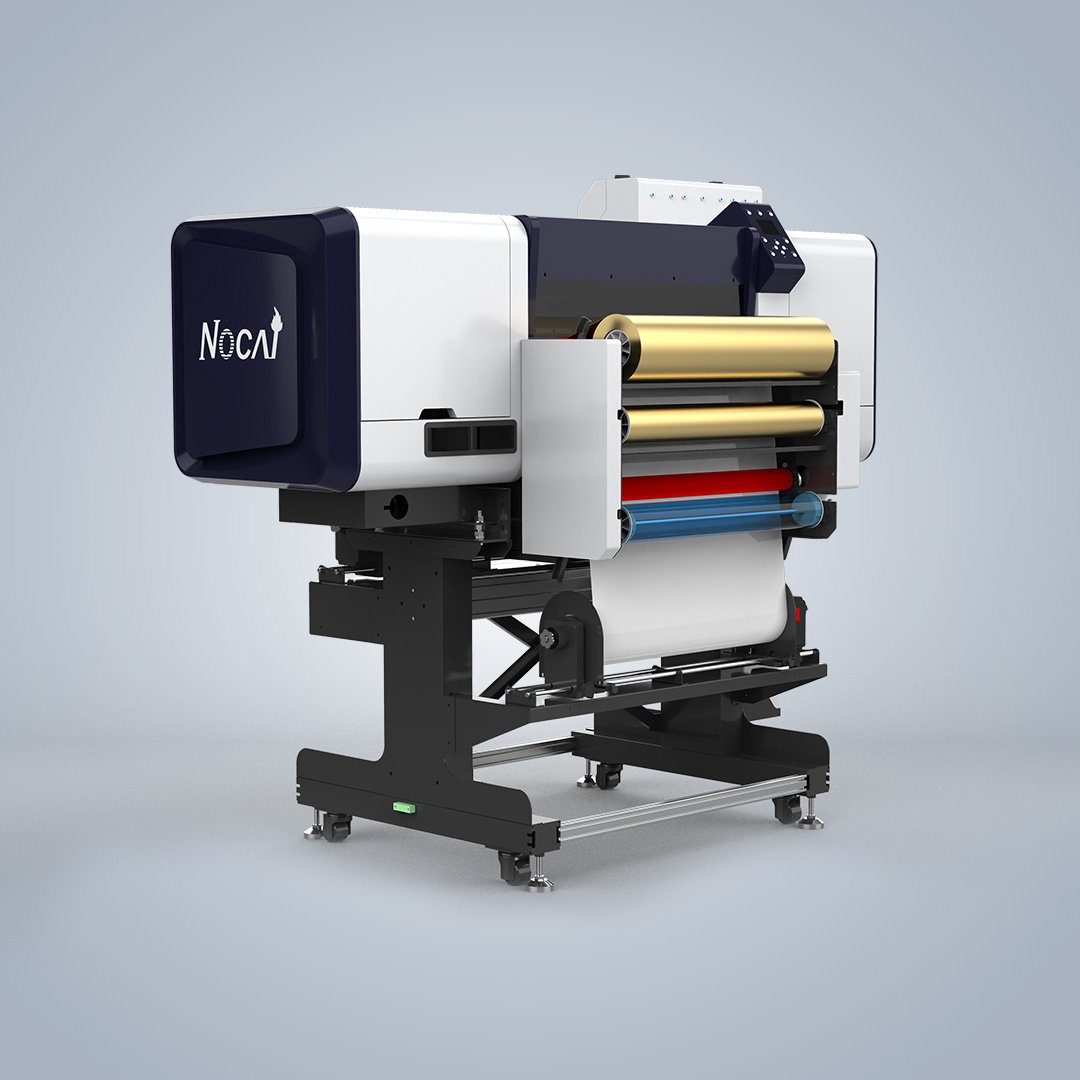

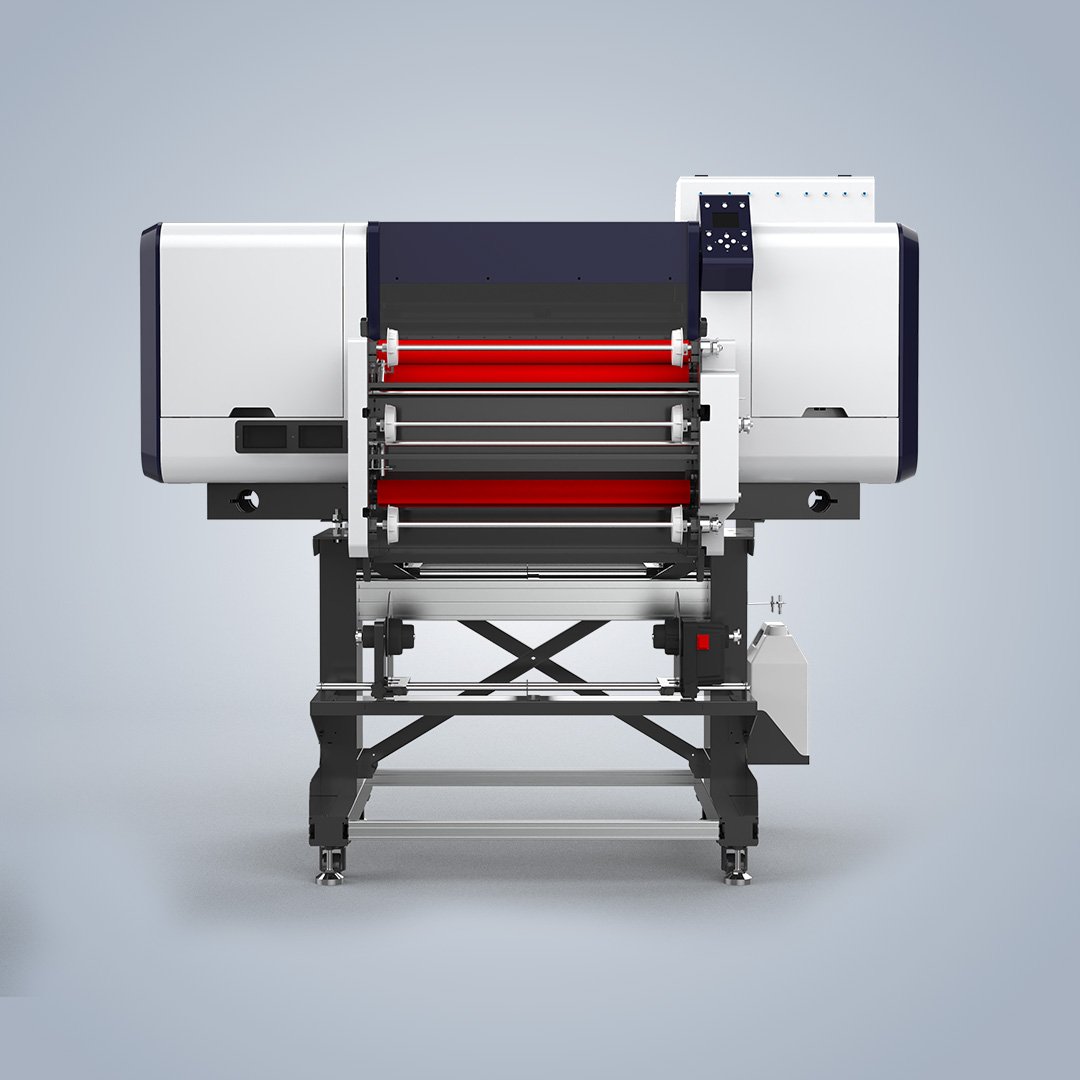

UV DTF and laminating allin one machine NC-UVDTF60-PLUS
Machine Model:NC-UVDTF60-PLUS (High-end version)
Printhead Configuration:Epson 11600-E1*4
Printing Width:60mm
Printing Thickness:0-1mm
Printing Method:Glue, white varnish, and hot stamping varnish are produced together
Printing Mode:GL+KCMY+W+V+GV
Resolution:960*900dpi / 960*1200dpi
Flatbed Printing Speed:Standard mode (6-pass) 4 meters/hour-7.5 meters/hour
Printing Software:Future RIP
Rated Power:330W
Power Supply Voltage:AC220V，50HZ/60HZ
Work Environment(T/H):25°C-28°C / 35%-65%
Machine Size(L/W/H):1071mm*1728mm*1535mm
Net Weight:280KG
Packaging Size(L/W/H):1474mm*2204mm*1100mm
Gross Weight:350KG
Packaging Type:wooden box
Ink Type:UV curing ink for crystal labels
Printer Type:Digital inkjet printer
Key Features
- Integrated printing, laminating, and hot stamping workflow improves production efficiency.
- 4 Epson I1600-E1 printheads deliver detailed images and smooth color transitions.
- Supports Glue + White + Color + Varnish + Foil effects in one-pass production.
- 60 cm printing width supports diversified UV DTF applications.
- Intelligent operation system ensures stable laminating and easy maintenance.
Product Highlights
High-Precision Printing & Smooth Color Performance

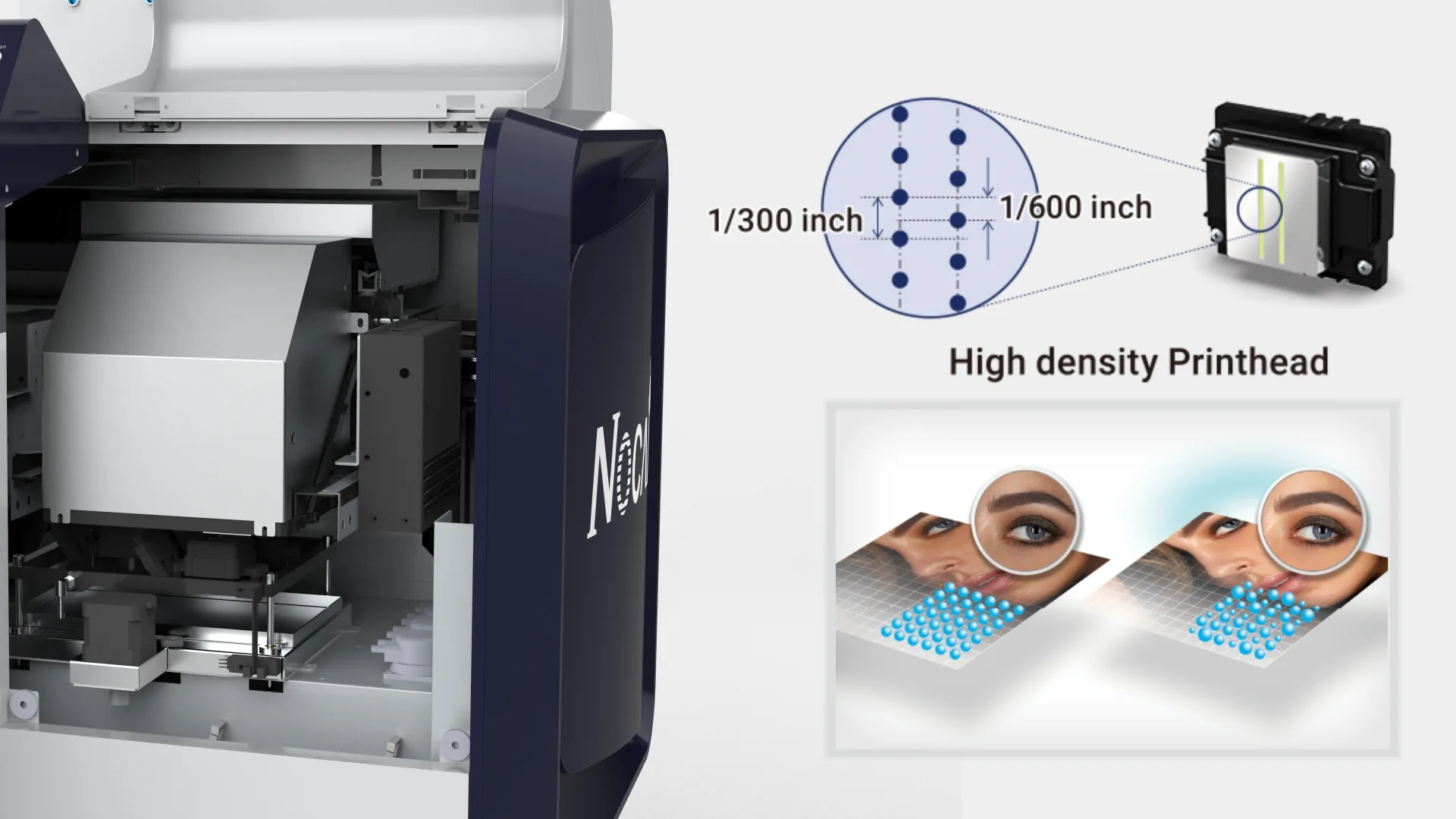

Equipped with 4 Epson I1600-E1 printheads and variable droplet technology for vivid colors, smooth gradients, and detailed image output.
Premium Structure & Stable Production

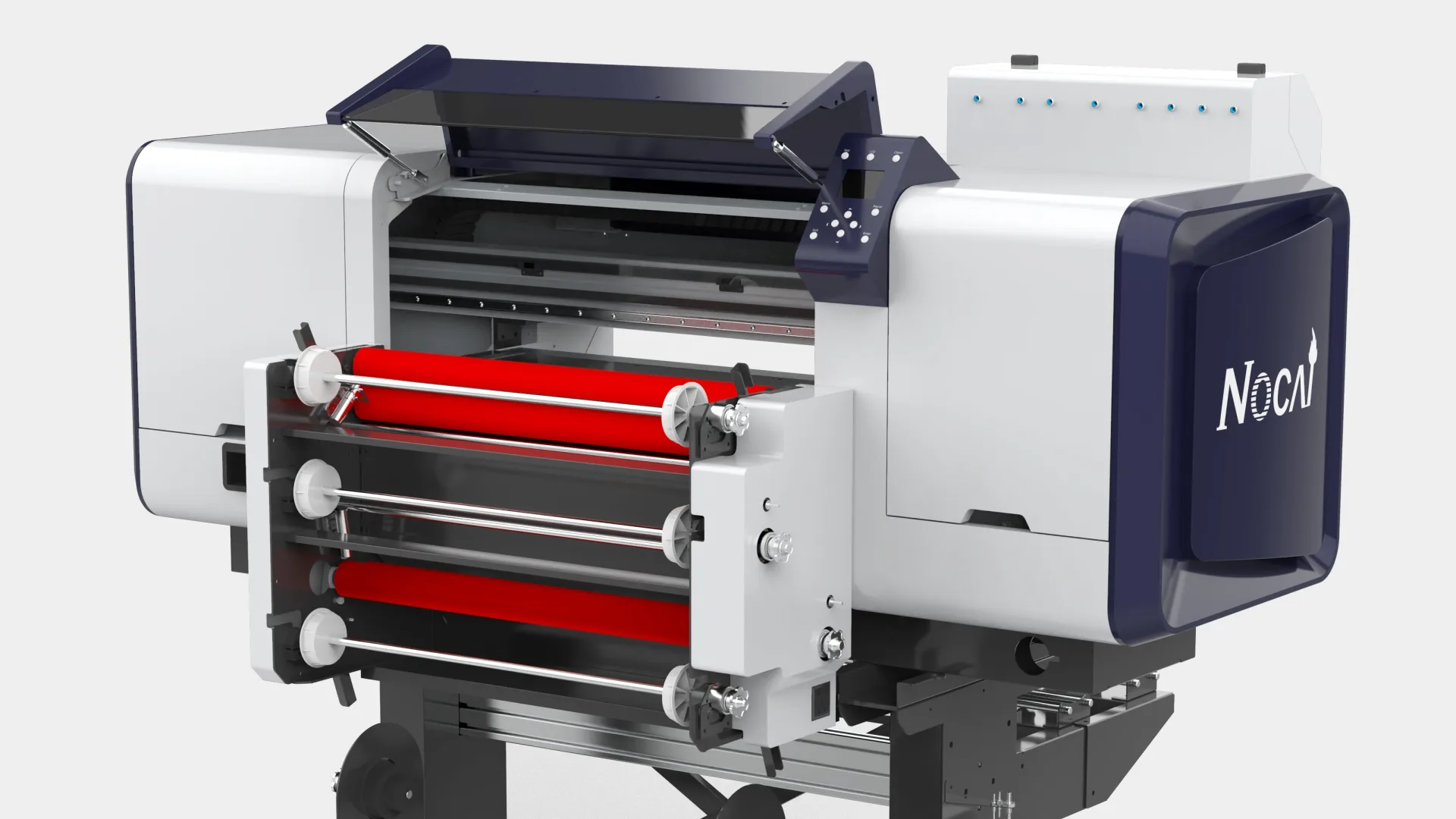

The silent guide rail system, vacuum platform, and low-ink warning function ensure stable and continuous printing performance.
Embossed & Foil Stamping Effects

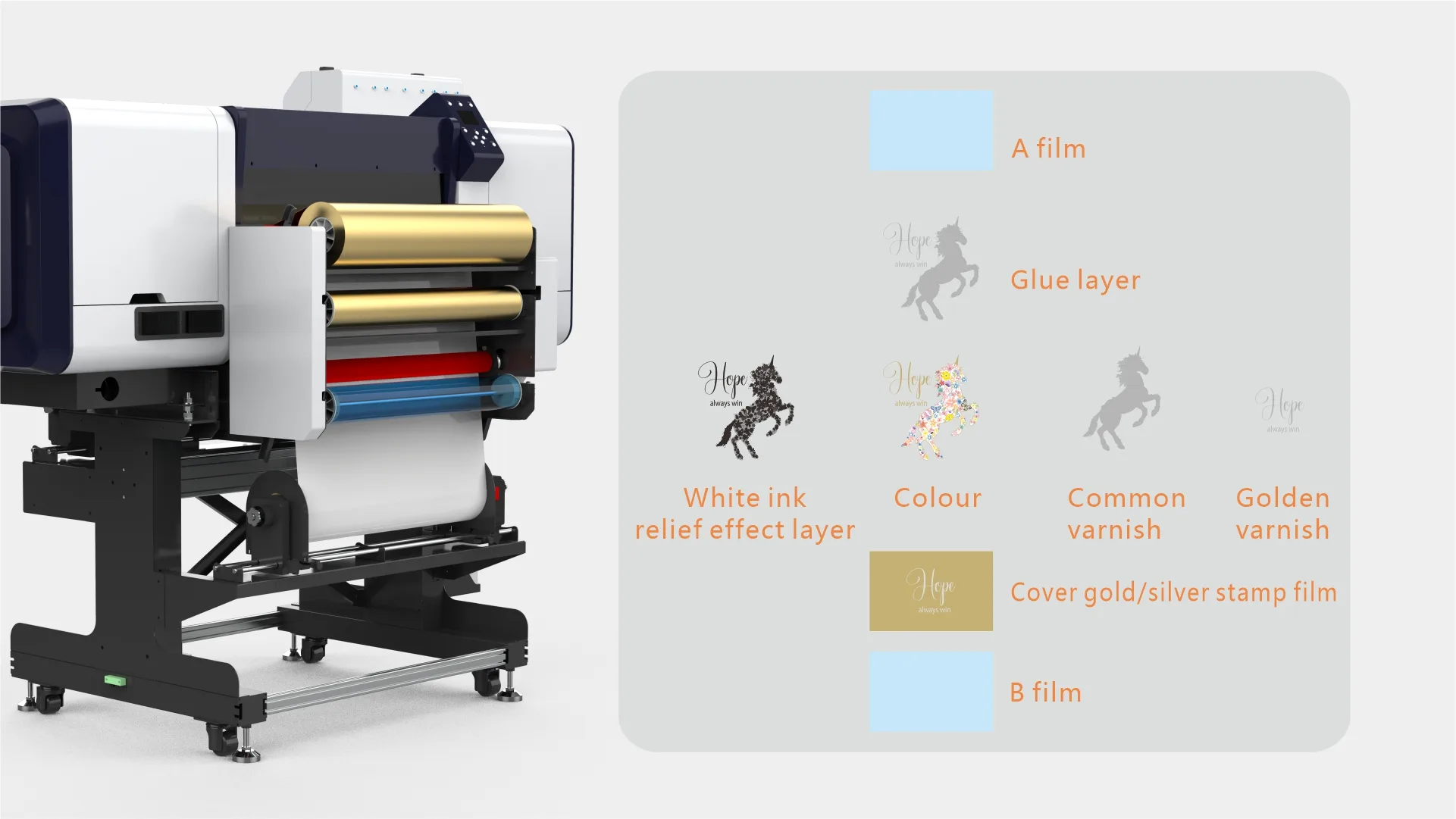

Supports Glue + White + Color + Varnish + Foil printing for premium embossed textures and layered metallic visual effects.

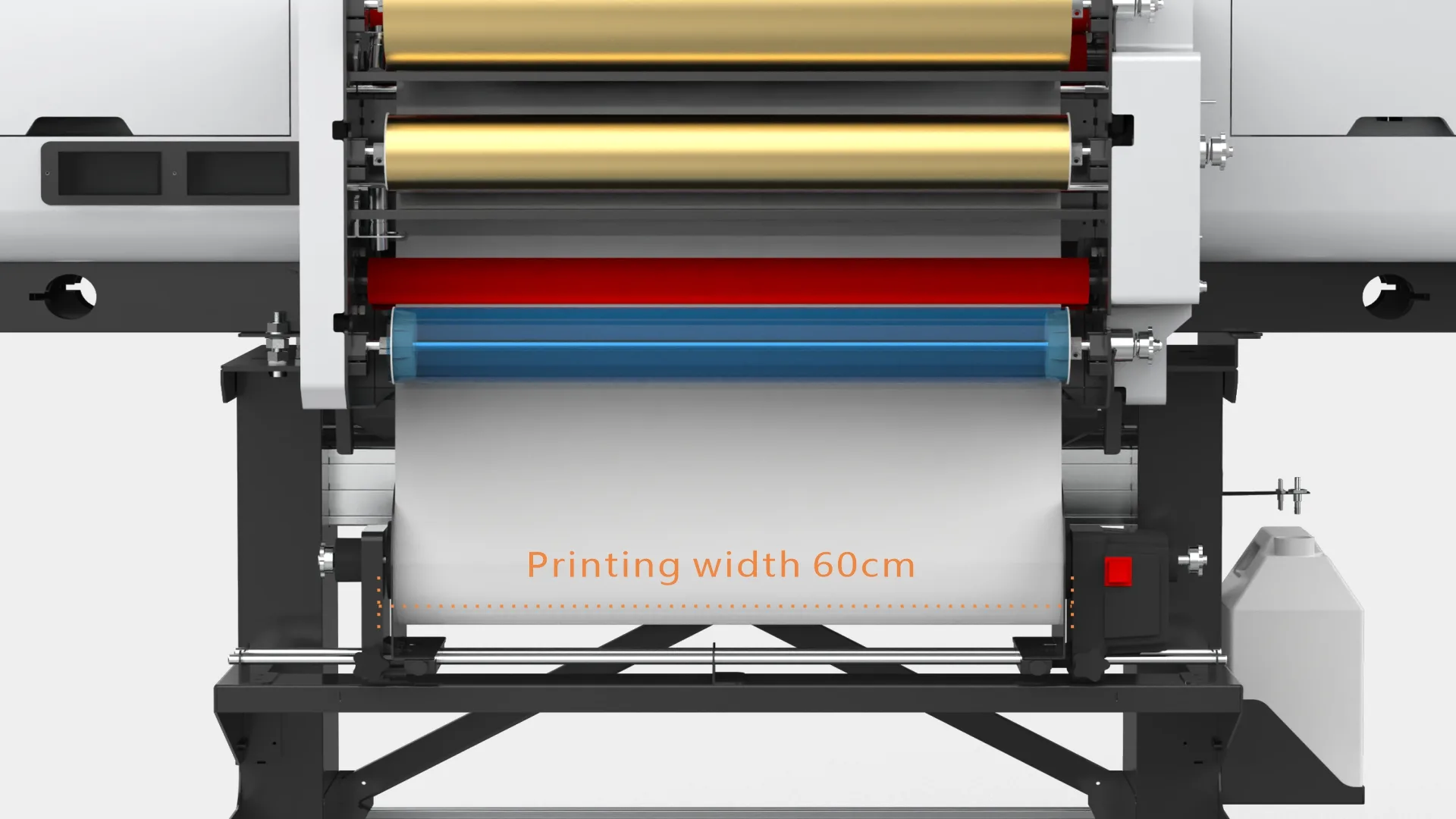

60 cm Printing Width & Integrated Workflow
Combines peeling, printing, laminating, foil stamping, and rewinding into one efficient automated production process.
Ink Solutions

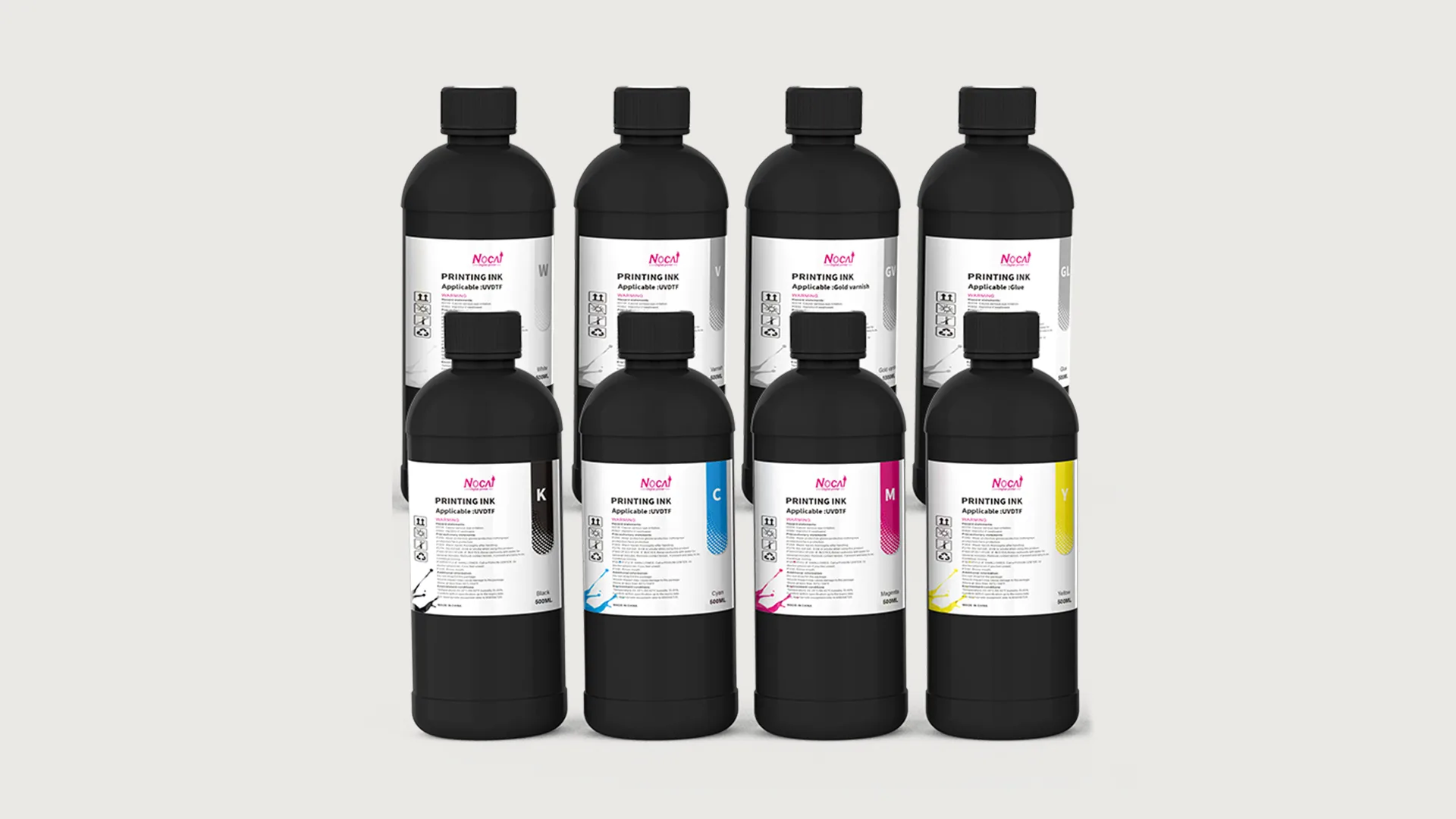

UV DTF Ink
Product Features
High-gloss UV DTF ink with strong adhesion, smooth color transitions, durable crystal effects, and stable output for large-format customized label production.
Specifications
Type: Eco-Friendly UV Curable Ink
Colors: C / M / Y / K / W / V / GV / GL
Capacity: 500 ml
Application: Large-Format UV DTF Label Production

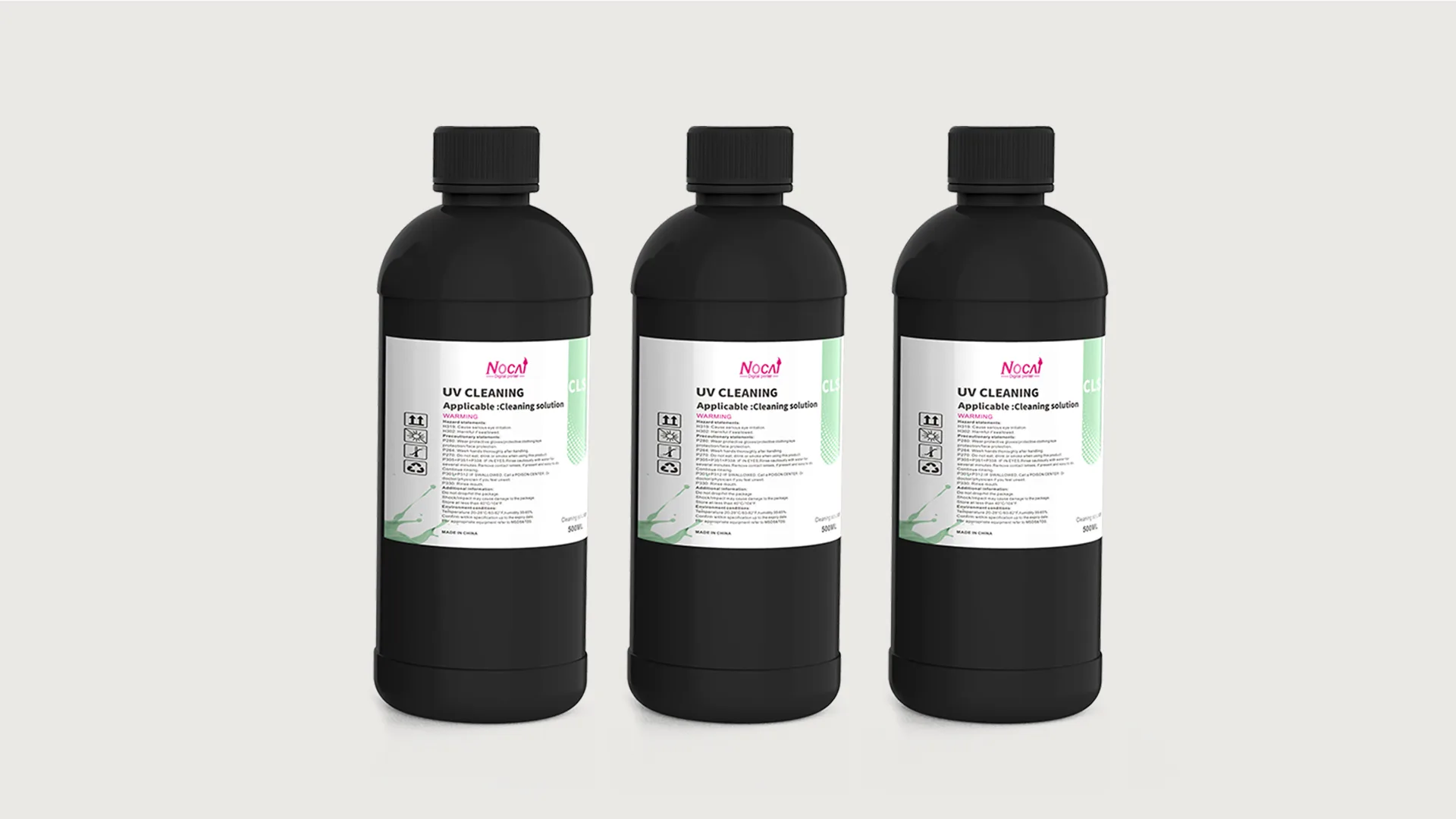

UV Cleaning Solution
Product Features
Efficiently removes UV ink residue while protecting printheads with a low-corrosion, low-odor, and residue-free formula.
Specifications
Type: UV Cleaning Solution
Color: Transparent
Capacity: 500 ml
Compatible Model: All Nocai UV Printers
