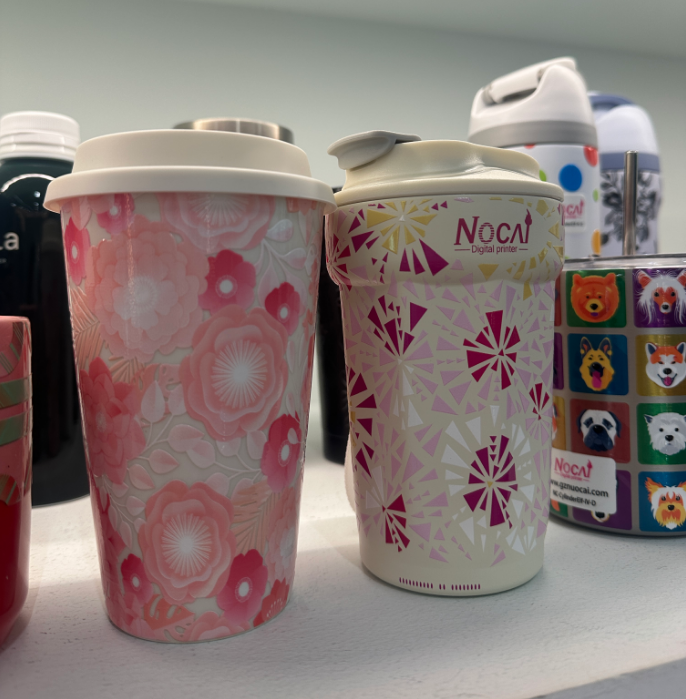

Irregular Shape Cup Printing – Tapered, Stepped, and Curved

Introduction

Irregular shape cup printing starts with one simple fact: standard cylindrical printers assume a uniform diameter. But many cups and bottles are not perfectly straight.Tapered cups, stepped tumblers, and curved vessels are common in the drinkware market. Printing on these shapes requires more than a standard rotary attachment. An irregular shape cup printing system must adapt to changing surface heights and angles.

Irregular Shape Cup Printing – Tapered and Conical Vessels

A tapered cup narrows from bottom to top. As the cup rotates, the surface moves closer to or farther from the printhead. Without compensation, the print becomes distorted. The NC-CylinderElf-IV-C supports taper angles of less than 5°. The adjustable tilt printing feature adapts to these shapes. For steeper tapers, a different fixture or machine configuration may be required.

Irregular Shape Cup Printing – Stepped and Tiered Surfaces

Some drinkware has stepped or tiered surfaces with changing diameters. Traditional printers struggle with these because the printhead cannot maintain a consistent distance. High-drop printing capability solves this. The machine adjusts the printhead height in real time to follow the steps. This ensures smooth, accurate printing across the entire surface.

Curved and Irregular Vessels

Handmade or artistic drinkware often has irregular contours. These present the greatest challenge. The 2-13mm high-drop range covers most real-world variations. Automatic laser measurement detects surface changes and adjusts the print path. For extreme irregularities, a custom fixture may be needed to stabilize the product during rotation. These features make the machine suitable for small studios and production lines alike. The ability to print on irregular shapes opens new product categories.

For more information about UV printing technology standards, visit Printing United.

What to Check Before Buying

If you print irregular shapes, test your actual products on the machine. Check that the printhead clears the highest point. Verify ink placement in recessed areas. Confirm that the fixture holds the product securely. Learn more about our cylindrical UV printers for irregular shape printing. A professional UV printer supplier can help you evaluate whether a specific machine handles your product range. Successful irregular shape cup printing depends on testing before you commit.
